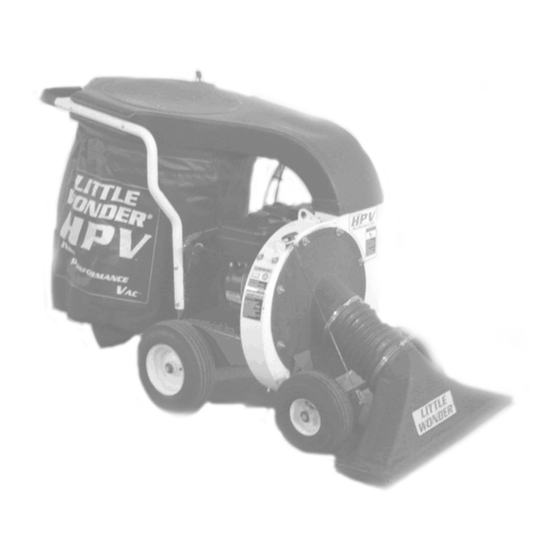

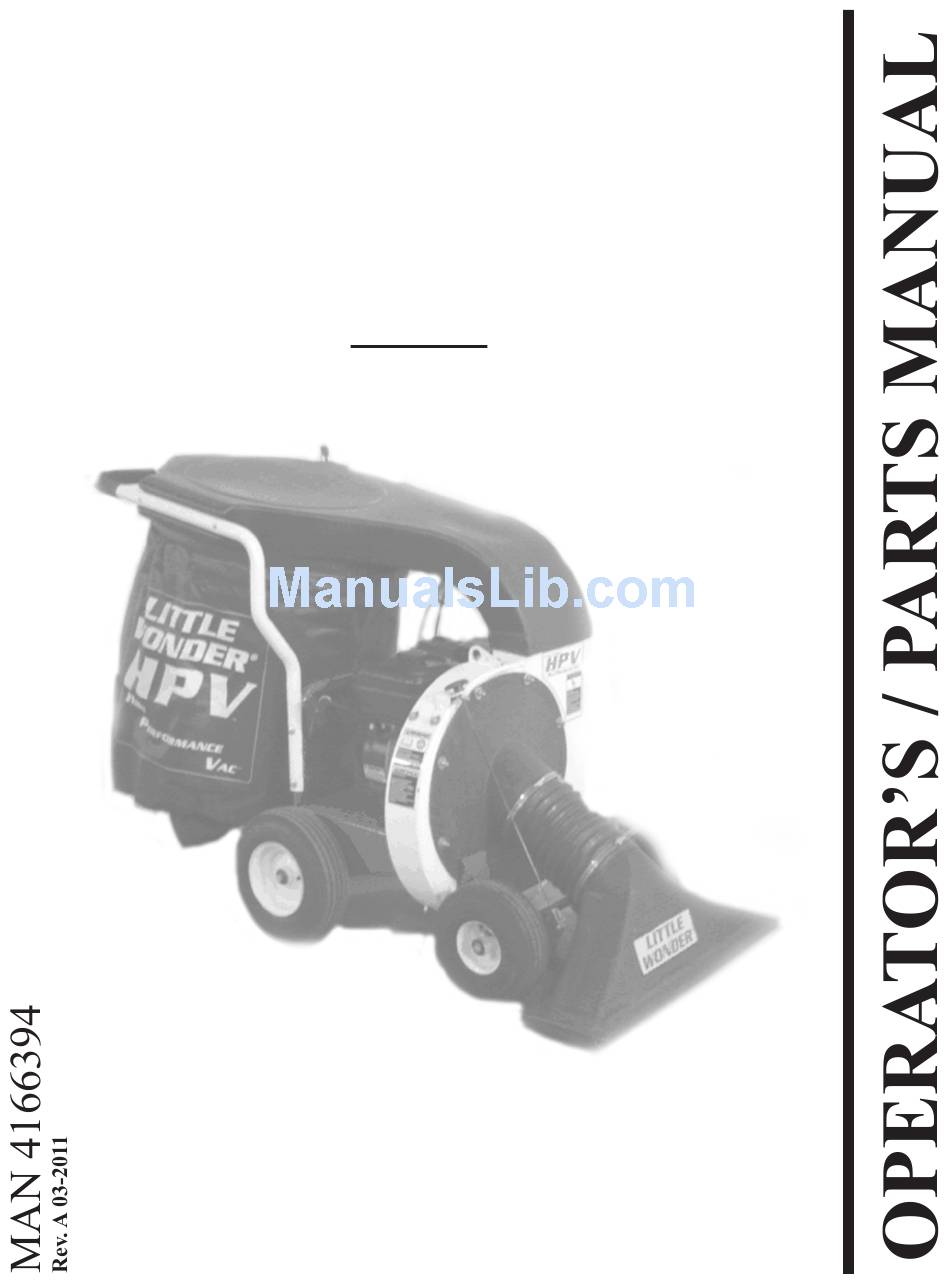

- Page 1 LITTLE WONDER High Performance Vac MODEL: 5612-00-01...
- Page 2 CALIFORNIA Proposition 65 Warning Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects and other reproductive harm. WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
-
Page 3: Table Of Contents
IMPORTANT MESSAGE On behalf of everyone at Little Wonder, we would like to thank you for your purchase of a Little Wonder High Powered Vacuum This professional vac was designed to the highest standards to ensure you many hours of uninterrupted service. -
Page 4: Little Wonder
LITTLE SAFETY WONDER HPV VAC This symbol means: NOTICE !!! ATTENTION! Unauthorized modifications may present extreme BECOME ALERT! safety hazards to operators and bystanders and could also result in product damage. Your safety and the safety of others is involved. Schiller Grounds Care, Inc. - Page 5 LITTLE SAFETY WONDER HPV VAC MACHINE PREPARATION Operator preparation and training Read the Operation & Safety SITE PREPARATION AND CIRCUMSTANCES Manual – Evaluate the terrain to determine how to safely – If an operator or mechanic cannot read English, it perform the job.
- Page 6 LITTLE SAFETY WONDER HPV VAC OPERATING SAFELY INTERRUPTING OPERATION Before leaving the operator's position: IN GENERAL - Park on level ground. – Use extra care when loading or unloading the - Shut off the engine. machine into a trailer or truck. Stop the engine, and wait until the fan stops moving: –...
-
Page 7: Maintenance Safety
LITTLE SAFETY WONDER HPV VAC MAINTENANCE SAFETY When refueling or checking fuel level: - Stop the engine and allow to cool; In general - Do not smoke; Maintain machine according to manufacturer's sched- - Refuel outdoors only; ule and instructions for maximum safety and best - Use a funnel;... -
Page 8: Labels
LABELS LITTLE WONDER HPV VAC DANGER Rotating Blades CUT / AMPUTATION HAZARD -Keep hands out of fan housing. -Stop engine and remove spark plug wire before cleaning or servicing. -Keep large and/or hard objects from entering machine. -Do not operate without nozzle or intake hose and bag in place. - Page 9 LABELS LITTLE WONDER HPV VAC WARNING Thrown object / Flying Debris Hazard -Do not operate without bag attached. -Stop engine before removing bag. 4166391 WARNING BEFORE STARTING: -Read and understand Operator manual and labels. -Wear hearing and eye protection. -Replace labels and Operator manual if lost or damaged.
-
Page 10: Set-Up Instructions
•Feed the tail end of the band (on the clasp side) behind the bracket in the sleeve. The Little Wonder HPV Vac includes a convenient lifting •Pinch the wire form on the clasp together and lug A on top of the fan housing that can be used to lift connect it through 2 holes in the adjustment bracket the unit. - Page 11 HPV VAC LIFTING LUG The Little Wonder HPV Vac includes a convenient lifting lug A on top of the fan housing that can be used to lift the unit. This lug can only hold up to a total of 250 lbs (115 kg).
-
Page 12: Controls
LITTLE CONTROLS WONDER HPV VAC THROTTLE (A) Controls engine speed and the amount of air being blown. Stops the engine when moved to the extreme slow position. CHOKE (B) Move to the “CHOKE” position to apply the choke. Move to the “RUN” position to remove the choke. FUEL SHUT OFF (C) Move to the “OFF”... -
Page 13: Operation
LITTLE OPERATION WONDER HPV VAC BEFORE STARTING THE ENGINE Examples of items/areas to avoid. -excessively wet surfaces and debris 1. Read the Operator Manual and Engine Manual. Be- -gravel surfaces come familiar with the controls, how each functions, -large hard objects and what it operates. -
Page 14: Fan Removal
FAN REMOVAL AND INSTALLATION LITTLE WONDER HPV VAC FAN REMOVAL AND INSTALLATION Remove spark plug wire from spark plug. Remove nozzle assembly. Remove front plate assembly. Remove the bolt that secures the fan to the engine crankshaft. The fan has a 3/4-16 nut welded on fan hub. Turn a 3/4- 16 x 5"... -
Page 15: Maintenance / Storage
2. Replace drain plug, remove fill plug and fill with new the spark plug. oil. Little Wonder recommends SAE 30 oil whenever applicable. 5. Top off if necessary. See engine manual for details. -
Page 17: Parts Section
LITTLE PARTS SECTION WONDER HPV VAC PARTS SECTION... - Page 18 LITTLE PARTS ASSEMBLY WONDER FIGURE 1...
-
Page 19: Parts Assembly
LITTLE PARTS ASSEMBLY WONDER FIGURE 1 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4166004 ENGINE-6HP INTEK 600180.17 DECK-HPV, 6HP 600184.17 HANDLE MOUNT 4166405 S-HOUSING VAC 600114 IMPELLER-BALANCED 600198 PLATE-FRONT 600182.17 BRACKET-FRONT WHEELS 1 600297 AXLE-FRONT 600298 AXLE-REAR 10 600137 SPACER-WHEEL 4164205 WHEEL-10"... -
Page 20: Collector Assembly
LITTLE COLLECTOR ASSEMBLY WONDER FIGURE 2... - Page 21 LITTLE COLLECTOR ASSEMBLY WONDER FIGURE 2 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4166406 S-HANDLE 600142.7 FLANGE CLAMP PLATE 64141-6 NUT-5/16-18 600138.7 FLANGE ANGLE COLLECTOR 1 64163-34 WASHER-1/4 COLLECTOR 600101 DISCHARGE COLLECTOR 600153 GRIP 600509 BOLT-BUTTON1/4-20 X 2 644229-01 LOCKNUT-1/4-20 10 600161 HOOK STRIP...
- Page 22 LITTLE LINER ASSEMBLY WONDER FIGURE 3...
-
Page 23: Liner Assembly
LITTLE LINER ASSEMBLY WONDER FIGURE 3 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4166405 S-HOUSING ASSY 600175 LINER 720592 BOLT-5/16-18 X 1 64163-29 WASHER-25/64 X 1 X 12GA 8 64229-02 LOCKNUT-5/16-18... - Page 24 NOZZLE ASSEMBLY LITTLE WONDER FIGURE 4...
-
Page 25: Nozzle Assembly
NOZZLE ASSEMBLY LITTLE WONDER FIGURE 4 ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 600100 NOZZLE 600133.7 ASSY-NOZZLE CLMP PLATE 1 600183.17 BRKT-NOZZLE VER. 2" 64141-6 NUT-FL 5/16-18... - Page 26 TWO YEARS from date of purchase, when used for RESIDENTIAL SERVICE, or COMMERCIAL SERVICE. Any LITTLE WONDER High Performance Vac or part found to be defective within the warranty period is to be returned to any registered LITTLE WONDER Dealer.
