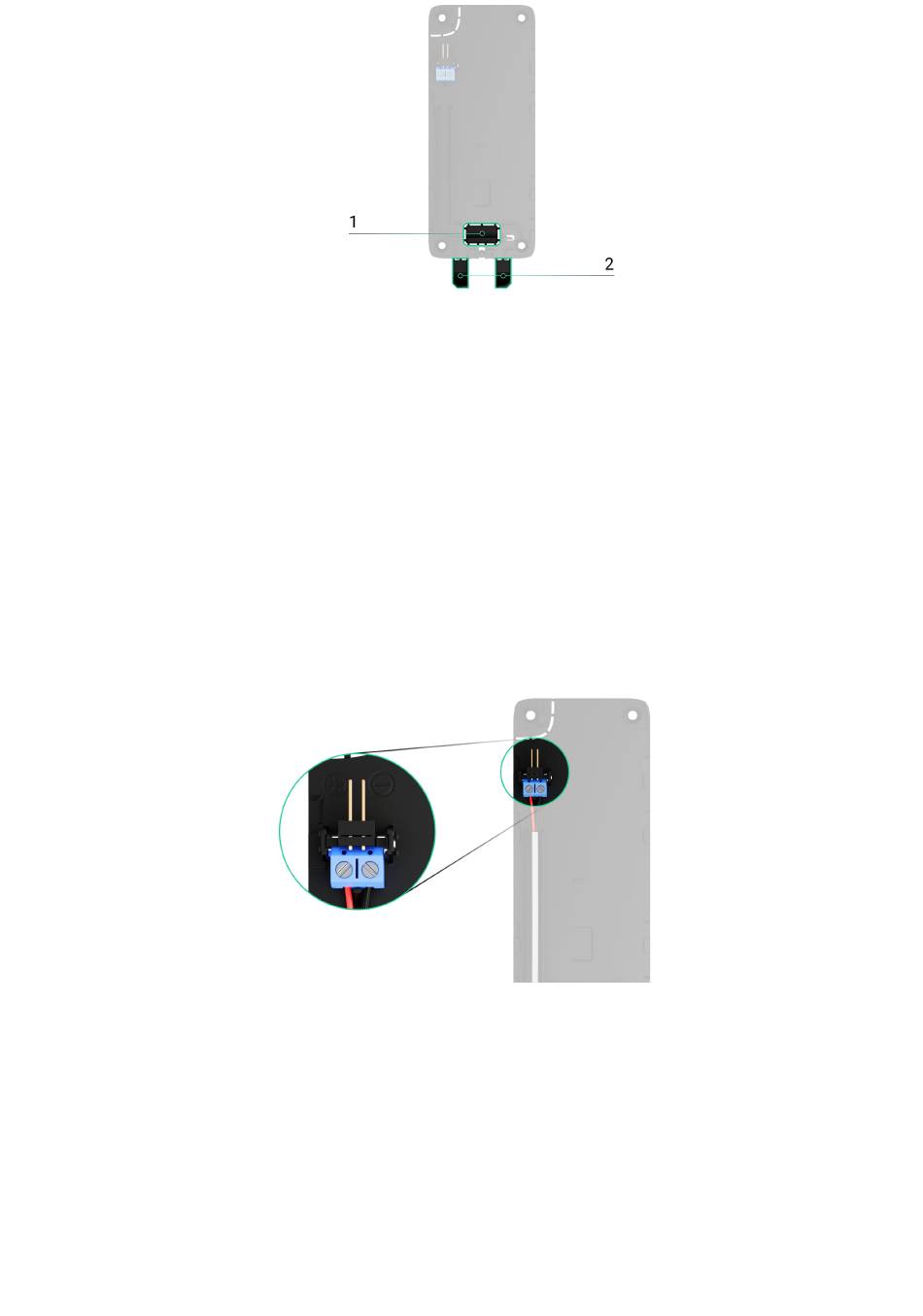

1 — to output the cable through the wall.
2 — to output the cable from the bottom. It is enough to break out one of
the perforated parts.
2. De-energize external power supply cable.
3. Connect the cable to the terminals by observing polarity (marked on the
plastic).
4. Route the cable in the cable channel. An example of how to output the cable
from the bottom of the keypad:
