Summary of Contents for Kleenmaid RHSO91

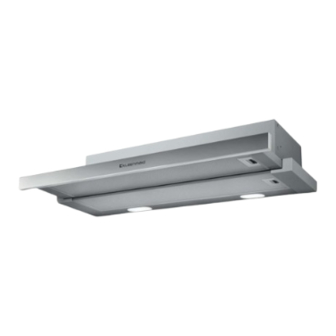

- Page 1 Instructions for use and warranty details To register your warranty or make a warranty claim, scan this QR code: Rangehood Model No.: RHSO91...
- Page 2 Once installation is complete, please read this instruction manual carefully and get to know the controls and the features of your new Kleenmaid appliance. These simple instructions will enable you to achieve excellent results from the very first time you use it.
-
Page 3: Table Of Contents
8-10 • Cleaning & Maintenance 11-12 • Troubleshooting • 14-15 Warranty Terms & Conditions *Read the complete manual carefully before installation* The current online version of the User Manual is available on the Kleenmaid website (see back cover for details). -
Page 4: Technical Specifications
220-240V~ 50Hz/60Hz Voltage Rated Power 283W Lighting Power 1.5W x2 280W Motor Power Standby Power Diameter of air outlet 150mm 3 /h (air flow meter) Air flow Max 850m 57dB(A) at Low Speed Noise W899xD280xH278mm... -
Page 5: Safety: Read This First
SAFETY: Read this First Do not connect the appliance if there are obvious signs of transportation damage. • Read this user manual thoroughly before attempting to use this appliance. • Installation and repair should be attempted only by qualified technical personnel. -
Page 6: Warnings
Warning ----This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their well being. -
Page 8: Instruction For Use
Installation NOTE: Before making preparations for or commencing installation, the installer should refer to the current online version of the User Manual, which is available on the Kleenmaid website (see back cover for details). Notes: • Attach the rangehood to the kitchen unit. - Page 9 Notes • Before installation make sure that the household voltage is same as the voltage on the rating label of the rangehood. • The wall or ceiling on which the rangehood is installed must be flat and strong enough to support the rangehood.
- Page 10 Drill holes and install rangehood body ■ Drill hole of 170mm diameter on the top of the cabinet. See diagram below. ■ The top four ST4 self-tapping screws are screwed up into the bottom of the cabinet OR ■ Fix the rangehood to the cabinet/wall behind it. ■...
-
Page 11: Cleaning & Maintenance
Do not use scrapers with metallic surfaces such as knives, scissors etc. Maintenance and Replacement of your Kleenmaid Rangehood Filters Your Kleenmaid rangehood has one or both the following types of filters: 1.The visible aluminium grease filter, which is present on every rangehood. - Page 12 Cleaning & Maintenance Replacing the Charcoal Filter To install the carbon filter (after removing saturated filter) align the motor anchorage with the anchor points of the carbon filter and turn clockwise. Changing LEDs Take care to disconnect the rangehood from the mains power beforehand and check that the LEDs to be replaced are not hot.
-
Page 13: Troubleshooting
(see back cover of this manual for details). When booking a service please provide your Model No.: RHSO91 and the individual Serial Number of your appliance. If you no longer have... -
Page 14: Warranty Terms & Conditions
Kleenmaid Warranty, however, if repair is needed because of Product failure during normal Domestic Use, Kleenmaid has the option to repair or replace the defective Product or part of the Product with a product or part of like kind and quality. - Page 15 Service under this warranty may be limited by the area in which you live. Service to remote and regional areas may incur additional travel costs which will be payable by you. You will be advised of this at the time you make a claim and Kleenmaid arranges to attend your premises.
- Page 16 Other products available in the Kleenmaid range of appliances Washing machines Clothes dryers Dishwashers Ovens Cooktops Steam ovens Microwave ovens Built in espresso coffee machines Rangehoods Freestanding ovens Refrigerators & Freezers Beverage Serving Cabinets Water Dispensers Vacuum Cleaners Compass Capital Services Pty Limited...
