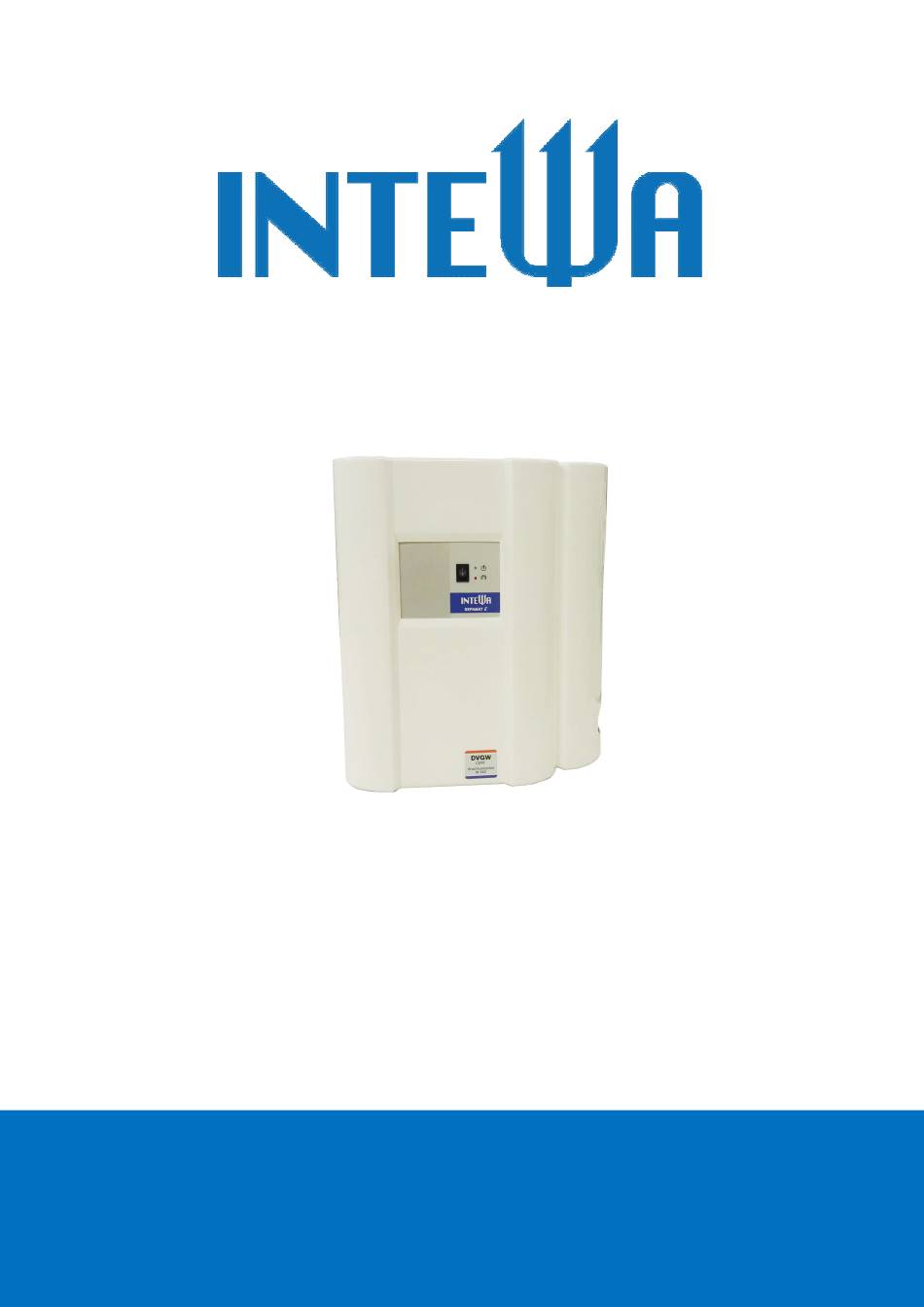

- Page 1 SEPAMAT E Installation and user manual WATER, WE´RE IN OUR ELEMENT www.intewa.com...
-
Page 2: Table Of Contents
Introduction and scope of application ....................2 Safety instructions ..........................2 Scope of delivery ..........................3 Technical data ............................4 4.1 Device overview and dimensions ....................5 4.2 Standards, directives, tests ......................6 Overview of components ........................7 5.1 Components of basic controller ...................... 7 5.2 Components of diaphragm pump .................... -
Page 3: Introduction And Scope Of Application
1. Introduction and scope of application Congratulations on purchasing your SEPAMAT E (Short name, SMT E). The SMT E is designed as a separation unit, for use with small volume flows. The DVGW certified, fully automatic and ready-to-connect separation unit fulfills the separation of drinking water from category 5 liquids according to DIN EN 1717. -
Page 4: Scope Of Delivery
• Do not install any electric products in flood-prone areas. • The operator is responsible for adherence of the safety and installation guidelines. 3. Scope of delivery Separation unit SEPAMAT E Accessory A Accessory B Accessory C (mains water connection):... -
Page 5: Technical Data
Max. height to the user: 10 m Mains water connection: ½” female Pressure line connection: ¾” female, union nut Suction line connection: ¾” male Emergency overflow connection DN50 (Ø55mm) Protection class: IP 44 Performance curve for SEPAMAT E SEPAMAT F_Manual_Vers.1.4f_en... -
Page 6: Device Overview And Dimensions
4.1 Device overview and dimensions Top View [1] Diaphragm pump [2] Pressure switch [3] Pump connection (Suction/Pressure) [4] Switching power supply [5] Separation chamber [6] Place holder for fill status indicator (not for SMT-E) Bottom View [7] Basic controller [8] Expansion tank [9] Pressure shut-off valve (1/2“... -
Page 7: Standards, Directives, Tests
24 V DC low voltage technology. The above mentioned device corresponds with the basic safety and health requirements of the EC directives for machines. Any modification of the device not coordinated by INTEWA will void the warranty. -
Page 8: Overview Of Components
Switching power supply: TÜV Rheinland, TÜV GS approved 5. Overview of components The SMT E has a modular design. Each component can be separately changed. 5.1 Components of basic controller Pos. Description of required connections Fan plug/connector Pump pressure switch (no polarity) Cabel (blue) Cabel (blue) Diaphragm pump/Fan... -
Page 9: Components Of Diaphragm Pump
5.2 Components of diaphragm pump 5.2.1 Diaphragm pump 1. Supply cable (red/black) 2. Suction connection (union nut/grommet) 3. Pressure connection (fix) 4. Non-return valve 5. O-ring 6. Pressure switch with fastener 5.2.2 Fan The fan cools the pump by a uniform air flow. If no continuous operation is provided, the fan can be disconnected electronically. -
Page 10: Components Of The Supplemental Supply Chamber
5.3 Components of the supplemental supply chamber The floating valve keeps the water level constant in the separation chamber. The maximum water level should be approx. 2-3 cm below the overflow rim when the floating valves closed (backside of the container). -
Page 11: Installation Instructions
4.) Check the air pressure through the air valve with an air pump and gauge (i.e. a bicycle or car tire pump). If the pressure is too low, use the air pump to increase it back to the necessary 2.0 bar. 5.) Reconnect the mains power to start the unit again and drain the water, via the vent cock, until bubble free water gushes out. -
Page 12: Wall Mounting
6.1 Wall mounting The SMT E is mounted on the wall using the mounting material provided. The lid, bottom and lateral distances indicated should be adhered to when mounting to provide clear maintenance access. >400 mm >200 mm 275 mm 260 mm Ø... -
Page 13: Connection To The Mains Water Line
6.2 Connection to the mains water line The connection to the mains water line is done with the provided flexible hose with stopcock. Note: The flexible hose must not be mounted with tension, since the internal float valve is pressed against the inner wall from here. -
Page 14: Installation Of The Pressure Line Set
6.3 Installation of the pressure line set The pressure line set (see section 3) establishes the connection between the pump and pressure line system. The expansion tank is fixed to the wall with the pipe clamps provided. The vent cock is equipped with a gasket ring so that it can be screwed directly into the T-piece without additional gaskets. -
Page 15: Connecting The Emergency Overflow
6.4 Connecting the emergency overflow The SMT E has an emergency overflow line (DN 50) which must be connected to the waste drainage system of the building. The drainage line must be of a size to accommodate a maximum volume flow rate of 20 l/min. The position of the backwater level must be taken into consideration while connecting to a drainage system, in order to prevent backflow of drainage water from the open sewer line (design according to the DIN EN 1717) entering the SMT E. -
Page 16: Start Up And Operation Modes
7. Start up and operation modes 7.1 Start-up 1.) Check that all lines are connected. Select mode = Switch position I. Open the mains water line stopcock so that the separation chamber is filled with water. 2.) Close the pressure shut-off valve. 3.) Open the air vent (hold a bucket of water under the air vent) and start the pump by plugging in the mains power. -
Page 17: Operation Modes
5.) Open the pressure shut-off valve and release the air from the (house) line (e.g. by flushing the toilet several times). Close the pressure shut off valve. The pump will automatically switch off when the maximum system pressure is reached. 7.2 Operation modes When the unit is switched on, the green LED lights up and the pump will start if the pressure is below 2 bar. -
Page 18: Trouble-Shooting
8. Trouble-shooting Description of error Cause Solution The pump is not starting The pump has shut down and all LEDs are flashing after running non-stop (2 - Check the functioning and position hours continuous operating) of the float switch (see due to: chapter 6.3.4). - Page 19 Pump is running a) non-sealed leaky fixture a) Fix leakage continuously b) withdrawal of water is too b) Check fixture low at the fixture a) Change pressure switch Pump ticks and the LED The power consumption of the (see section 5.2) light flashes ON/OFF pump is too high (protection regularly...
-
Page 20: Maintenance
9. Maintenance Description Maintenance interval Pre-pressure of the expansion tank: 6 months For a description for the inspection and preparation of the pre-pressure see section 5.4 Mains water valve: 6 months If the mains water valve continuously drips, then this must be decalcified. Therefore, remove the entire valve from the tank and place it in a decalcifying solution (citric acid) so that the inlet and outlet are fully submerged. -
Page 21: Guarantee
12. Contact / Device number For customers in Germany: For any queries, ordering of spare parts, as well as in case of service, kindly contact INTEWA GmbH directly, quoting your product‘s model and identification numbers and the purchase invoice details, at: INTEWA GmbH Auf der Hüls 182...
