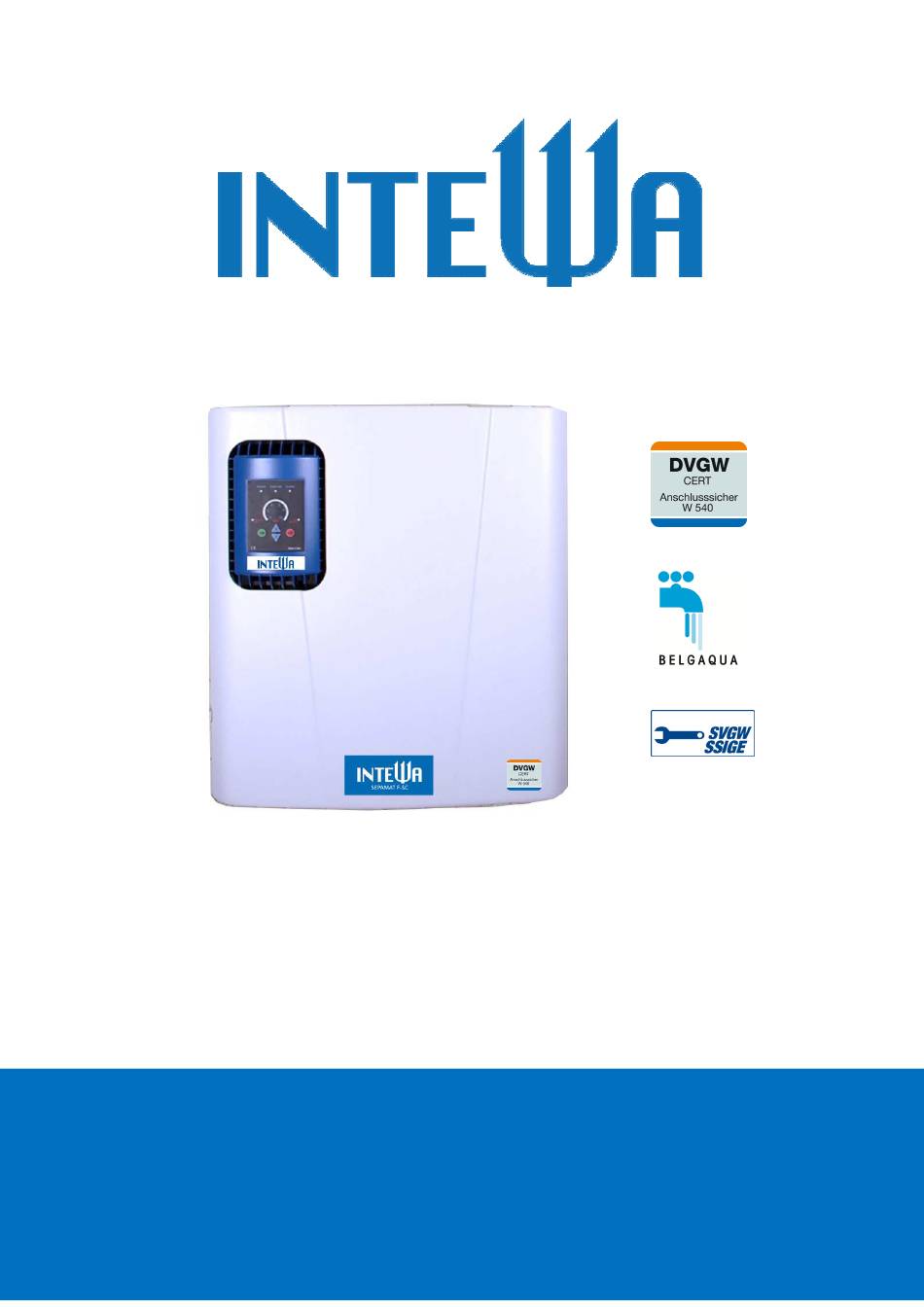

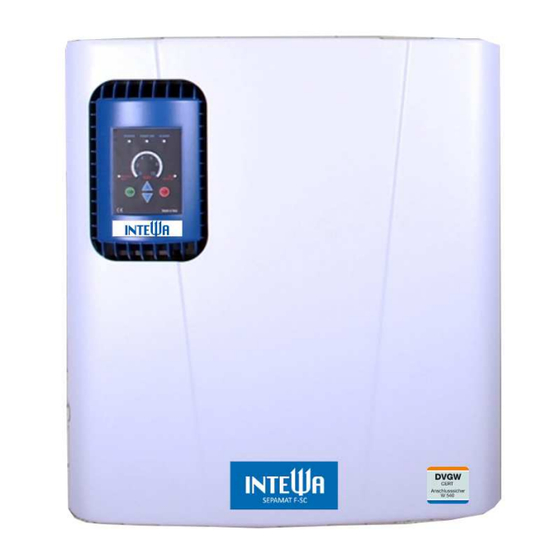

- Page 1 SEPAMAT F-SC Installation and user manual WATER, WE´RE IN OUR ELEMENT WATER, WE’ RE IN OUR ELEMENT www.intewa.com www.intewa.de...
-
Page 2: Table Of Contents
Introduction and scope of application ....................2 Safety instructions ..........................4 Scope of delivery ..........................5 Technical Data ............................6 4.1 Device overview and dimensions ....................7 4.2 Standards, directives, tests ......................9 Overview of components ........................10 5.1 Components of the pump controller ....................10 5.1.1 Description of display and buttons.................. -
Page 3: Introduction And Scope Of Application
1. Introduction and scope of application Congratulations on purchasing your SEPAMAT F-SC (SMT-F-SC). The SMT-F-SC is designed as a separation unit, for use in single-family homes, apartment buildings, offices and industry. The DVGW certified, fully automatic and ready-to-connect separation unit fulfills the separation of drinking water from category 5 liquids according to DIN EN 1717. - Page 4 Speed control In both modes (automatic/maintenance), the speed of the centrifugal pump is controlled by a frequency converter corresponding to a set pressure level. The pressure is monitored via a built-in analog pressure sensor. The current is monitored with the basic controller. This ensures 100% that the pump never dry runs.
-
Page 5: Safety Instructions
2. Safety instructions The live components have to be installed only by a qualified electrician. In case of failure of the electronic device, the product has to be repaired by a qualified electrician before being operated again. There is a risk of electric shock! The outlet circuit used for the device has to be secured through a protected circuit breaker (16 A in most countries). -
Page 6: Scope Of Delivery
3. Scope of delivery Separation unit Wall mounting material, SEPAMAT F-SC installation and user manual Standard accessory A Standard accessory B (Mains water connection) (Pressure line set) SEPAMAT F-SC_Manual_Vers.1.0e_en... -
Page 7: Technical Data
4. Technical Data SEPAMAT F-SC 20 SEPAMAT F-SC 40 Dimensions (H x W x D): 595 x 550 x 265 mm 595 x 550 x 265 mm Weight: 33 kg 34 kg Nominal voltage / frequency : 230 V / 50-60 Hz 230 V / 50-60 Hz Rated voltage: 207 ... -
Page 8: Device Overview And Dimensions
4.1 Device overview and dimensions Right side view Front view Left side view SEPAMAT F-SC_Manual_Vers.1.0e_en... - Page 9 1. Multistage centrifugal pump SEPAMAT F-SC 20 / 2. Pump terminal box with basic controller 3. Vent cock 4. Pressure line shut-off valve (1“ female) 5. Pump controller 6. Pressure sensor 4-20 mA, ¼“ male 7. Separation chamber 8. Stopcock for mains water (3/4“ female) 9.
-
Page 10: Standards, Directives, Tests
The above mentioned device corresponds with the basic safety and health requirements of the EC directives for machines. Any modification of the device not coordinated by INTEWA will void the warranty. This equipment specifically fulfils the requirements of the following EU directives:... -
Page 11: Overview Of Components
5. Overview of components The SMT-F-SC has a modular design. Each component can be separately exchanged. 5.1 Components of the pump controller The pump controller (see section 4.1) monitors the pressure in pressure line system and maintains it at a constant level by speed controller. - Page 12 LED-Indicator Description POWER POWER Green, steady: Inverter voltage supply is ON PUMP ON PUMP ON Green, steady: Pump ON Green, flashing: Enable OFF condition ALARM Red, steady: Pump stopped due to a malfunction ALARM Restart necessary (STOP then START) Red, flashing: Pump stopped due to a malfunction (auto restart) Minimum Flow Yellow, steady:...
-
Page 13: Cable Connection Plan
5.1.2 Cable connection plan Mains input connector (230 V / 50 Pump connector (3 ~230V÷400 V) Pressure sensor (4-20 mA output) S (white cable) +15 V (brown cable) In the event of a damaged cable or faulty pressure sensor, it is necessary to open the housing of the pump control. -
Page 14: Self-Initialization
5.1.3 Self-initialization Each SMT-F-SC pump is factory set for the initial pump control! The below described self-initialization must be performed only when a program RESET was conducted or if a new pump or a new pump control was installed. In this automatic initialization, the characteristic current values are analysed at different operating parameters, which form the basis of the speed controller. -
Page 15: Preferences / Settings / Parameters
5.1.4 Preferences / Settings / Parameters In the default setting, the parameters are predefined for the SMT-F-SC pump. However, the option exists to define precise parameters in the setting mode. Attention! This should only be performed by an experienced technician. Command Button combination Activation of setting... - Page 16 LED- Function Description Range Default Code Display setting Minimum Setting of the minimum flow 10...+10 flow rate stop rate level Each step: 1 Maximum Setting of the maximum 1...7 A motor current motor current Each step: 0.5 SMT-F-SC20: 3.0 A SMT-F-SC40: 3.5 A Minimum Setting of the minimum...
- Page 17 LED- Function Description Range Default Code Display setting Pressure sensor Setting for the operating 10..20 bar 16 bar operating range range of the pressure Each step: sensor 0.5 bar Proportional Setting for proportional 0..6000 3000 P.I.D. factor in P.I.D. Each step: 300 Factor (Proportional-Integral- Derivative) for pressure...
-
Page 18: Components Of Basic Controller
5.2 Components of basic controller The unit’s basic controller is located in the terminal box of the pump. Here are all the electronic components of the SMT-F-SC are connected. On the side of the terminal box is the mode selections switch I / II for Automatic and Maintenance mode (see section 7.3 for functional description). -
Page 19: Components Of The Multistage Pump
5.3 Components of the multistage pump Exploded view of the SMT F-SC 20 / 40 centrifugal pump. Nr. KIT REF.Nr RM F 20 RM F-SC 20 RM F 40 RM F-SC 40 DESCRIPTIO COMPONENT DESCRIPTION SMT F 20 SMT F-SC 20 SMT F 40 SMT F-CS 40 REF. -
Page 20: Components Of Separation Chamber
5.4 Components of separation chamber The floating valve keeps the water level constant separation tank. maximum water level should be approx. 2- 3 cm below the overflow rim when the floating valves closed (backside of the container). The correct distance of the float (5) to the horizontal lever is factory set at 8.5 cm. -
Page 21: Installation Instructions
6. Installation instructions 6.1 Wall mounting The SMT-F-SC is mounted on a wall with the supplied wall bracket. The lid and lateral distances indicated should be adhered to when mounting, to provide clear maintenance access. The SMT-F-SC is wall mounted in such a way, that the groove in the top back panel of the unit hangs off the affixed wall bracket. -
Page 22: Connection To The Mains Water Line
The provided rubber clamping device is to be fit on the back side of the unit in the lower corners. Thanks to the rubber pads, the device can be installed close to the wall. The unevenness of the wall can be balanced by various screwing depths. -
Page 23: Installation Of The Pressure Line Set
6.3 Installation of the pressure line set The pressure line set (see section 3) establishes the connection between the pump and pressure line system. The pressure line set is connected to the pump controller. The flexible hose and the shut-off valve then connect to the pressure line set and the pressure line. -
Page 24: Connecting The Emergency Overflow
6.4 Connecting the emergency overflow The SMT-F-SC has an emergency overflow line (DN 50) which must be connected to the waste drainage system of the building. The drainage line must be of a size to accommodate a maximum volume flow rate of 90 l/min. Note: The position of the backwater level must be taken into consideration while connecting to a drainage system, in... -
Page 25: Start-Up And Use
7. Start-up and use 1. Open the mains water line stopcock so that the separation chamber is filled with water. Note: In maintenance mode the pump primed with water automatically over the mains water tank. In this case the pump doesn’t need to be filled up with water by hand. - Page 26 4. Close the air vent. 5. Open the pressure line shut-off valve and flush the air from the consumer line (e.g. by flushing the toilet several times or opening the garden tap). Close all the fixtures. The pump will now automatically switch off when the maximum system pressure is reached.
-
Page 27: Safety Monitoring And Error Notifications
8. Safety monitoring and error notifications Code LED-Display Features Description Current monitoring Pump is turned off instantaneously if this value exceeds a peak that can damage the electronic components - high starting current - short-circuit on motor. Surge protection Pump is turned off if the voltage exceeds a maximum instantaneous limit (+15%Vn) Undervoltage Pump is turned off if the voltage falls under... -
Page 28: Trouble-Shooting
Protection and Alarm details: Current monitoring (A1): The controller immediately stops the pump in the case the current exceeds the maximum limit defined (F2). Flow rate monitoring (A7): To prevent the pump from working when the fixtures are closed, the software compares the function with the pump performance curve. -
Page 29: Maintenance
Description Cause Solution Pump runs continuously a.) Unsealed, leaking fixture a.) Repair leak with a low flow rate or turns b.) Too little water demand from on without use from the b.) Check fixtures the fixture (<1 l/min) consumer c.) Selected operating pressure is too high c.) Reduce operating pressure (3 d.) Settings changed or a... -
Page 30: Warranty / Guarantee
13. Contact / Device number For customers in Germany: For any queries, ordering of spare parts, as well as in case of service, kindly contact INTEWA GmbH directly, quoting your product‘s model and identification numbers and the purchase invoice details, at: INTEWA GmbH Auf der Hüls 182... -
Page 31: Appendix 1.0
Appendix 1.0 Scope of DUPLEX or TRIPLEX application For larger commercial applications, where pumping reliability and consistency is a must, the speed- controlled SMT-F-SC models are used to ensure water is always efficiently and reliably delivered to the required application. Up to three SMT-F-SC units can be connected in parallel, as a powerful multiple pumping system. -
Page 32: Appendix 1.2 Bluetooth Function In Duplex And Triplex Applications
Appendix 1.2 Bluetooth function in Duplex and Triplex applications 1. Each SMT-F-SC unit is factory initialized, allowing pre-set operation procedures to occur. Is it still necessary to perform a self-initialization (i.e. after a RESET), after which every device will be initialized individually (see note below). In order to initiate a Bluetooth connection, the mains plug of all SMT-F-SCs must be inserted within 10 seconds of each other (all LEDs must be extinguished beforehand).
