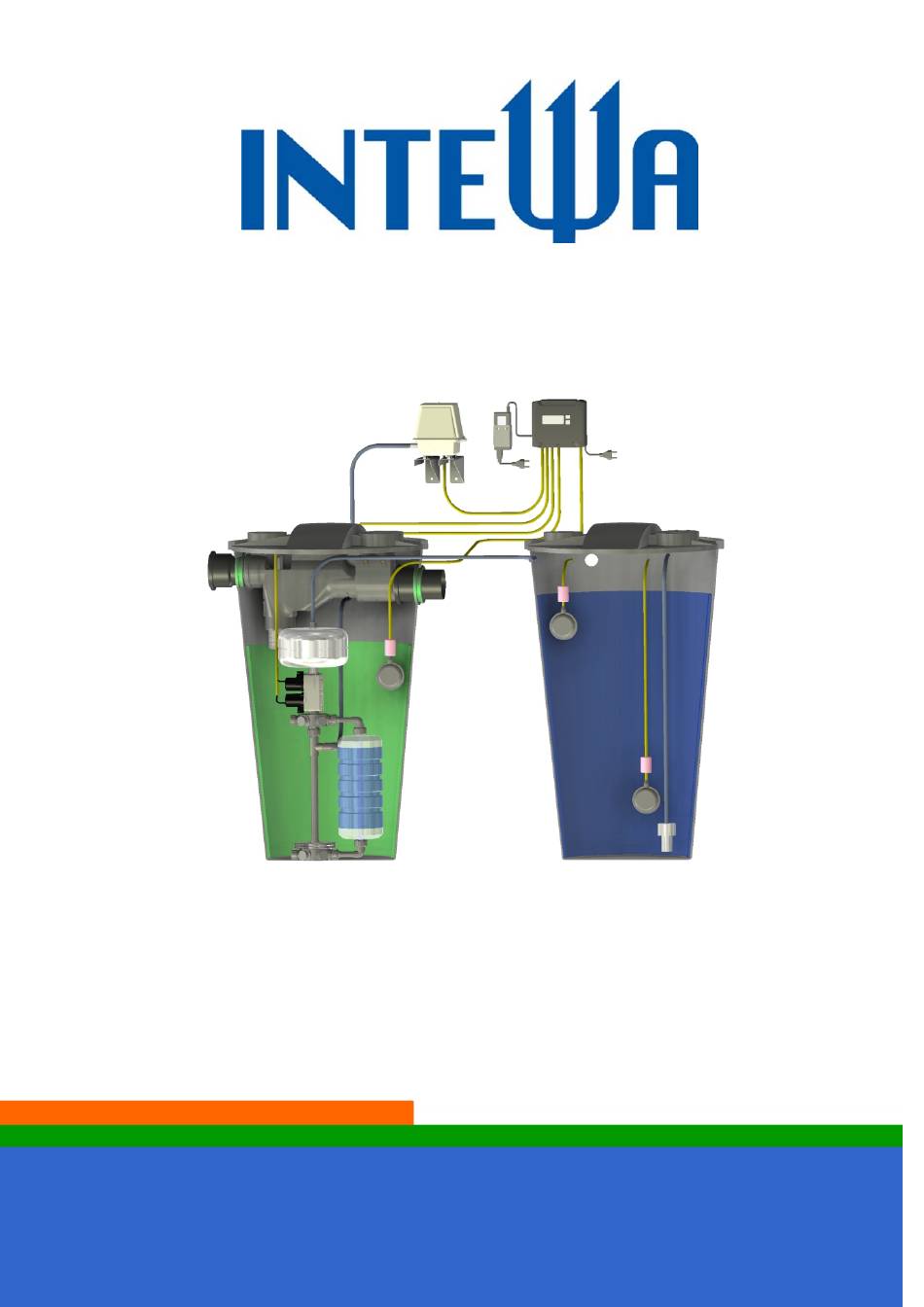

- Page 1 AL-System 6 AQUALOOP System 6 Installation and operating instructions WATER IS OUR ELEMENT www.intewa.com...
-
Page 2: Table Of Contents
Table of contents Introduction and general instructions ............................2 Scope of delivery ....................................3 Technical data ..................................... 4 Installation instructions ................................... 6 Maintenance and cleaning ................................9 Warranty / Contact ..................................... 9... -
Page 3: Introduction And General Instructions
Fig. 1: AQUALOOP components The manual describes the installation of the pre-configured tank and system components in the tank. Detailed information on each component is included in the respective components manual or latest updated information can be found at: http://www.intewa.de/1/wasser/wasseraufbereitung/... -
Page 4: Scope Of Delivery
2. Scope of delivery AQUALOOP-MS, membrane station with control unit, switching power supplier, floating switch (2pcs.) AQUALOOP-MEM, membrane AQUALOOP-F100, prefilter AQUALOOP-30L, blower AQUALOOP-FK30l, growth media material Bioreactor tank 350 Litres, pre-configured Clear water tank 350 L, pre-configured Installation material: • 2pcs. -
Page 5: Technical Data
3. Technical Data Bioreactor Tank dimension (Ø x H): Ø740 x 1275 mm Inflow connection: DN100 (Ø110mm), bush Inflow height: 1045 mm Emergency overflow connection : DN100 (Ø110 mm), spigot Emergency overflow height: 980 mm Cable ducts: PG 11(suction pump, back flush pump, float switch BR min) Blower connection: 1 ¼“... - Page 6 1. Bioreactor 11. 24 Volt switching power supply 2. Wheel weight 12. Control unit 3. Membrane 13. Bioreactor emergency overflow 4. Suction pump 14. Clear water inflow 5. Back flush pump 15. Clear water tank emergency overflow 6. Float switch Bioreactor BR min 16.
-
Page 7: Installation Instructions
Installation instructions Drainage inflow Cable gland back flush pump Cable gland suction pump Blower connection 1 ¼“ male Clear water hose to clear water tank Emergency overflow Cable glant float switch BR min Fig. 4: Bio reactor Clear water inflow Emergency overflow clear water tank Cable gland floating switch CL max Cable gland for separate float switch minimum... - Page 8 Installation sequence: 1.) Wall installation of control unit and switching power supply holder Installation instructions (drilled hole distance etc.) are to be taken from the installation and operating manual of the AQUALOOP-MS. 2.) Wall mounting of blower Mounting instructions (distance from drilled hole etc.) are to be taken from the instruction sheet of the AQUALOOP- BL30 3.) Installing pre-filter...
- Page 9 - Then, holding the pre-filter inlet on the outside of the bioreactor, line up with the pre-filter inflow and slide into place. Note: first, rub the pipe and seal with installation lubricant before sliding the pipe in. 4.) Assembling the membrane station and insertion in the bioreactor The installation of membrane station should be done as shown in the installation and operating manual of the...
-
Page 10: Maintenance And Cleaning
The warranty provisions are included in our sales conditions, and can be viewed at: http://www.intewa.de/1/cs/dialog/rechtliches/verkaufsbedingungen/ For any queries, orders for spare parts or service enquiries, please get in touch with your local dealer or visit the service domain at the INTEWA website of your country. Always keep your purchase invoice handy. www.intewa.com... - Page 11 © INTEWA GmbH Version: 1.0 Technical changes reserved.
