XPower X-3400A Owner's Manual

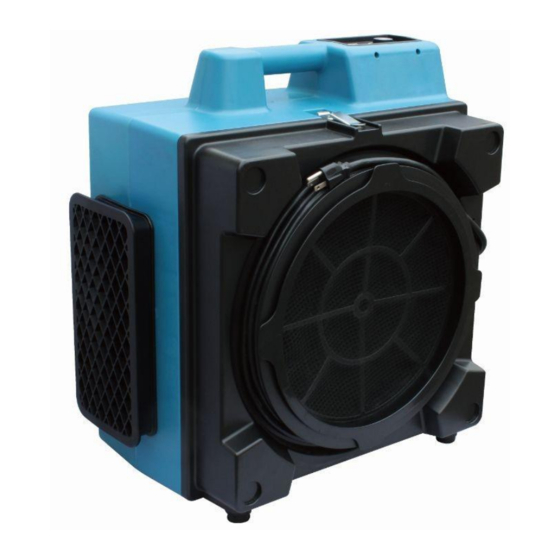

Air scrubber
Hide thumbs Also See for X-3400A:
Table of Contents

Advertisement

Quick Links

Download this manual
AIR SCRUBBER
X-3400A, X-3500, X-3700

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-3400A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for XPower X-3400A

Summary of Contents for XPower X-3400A

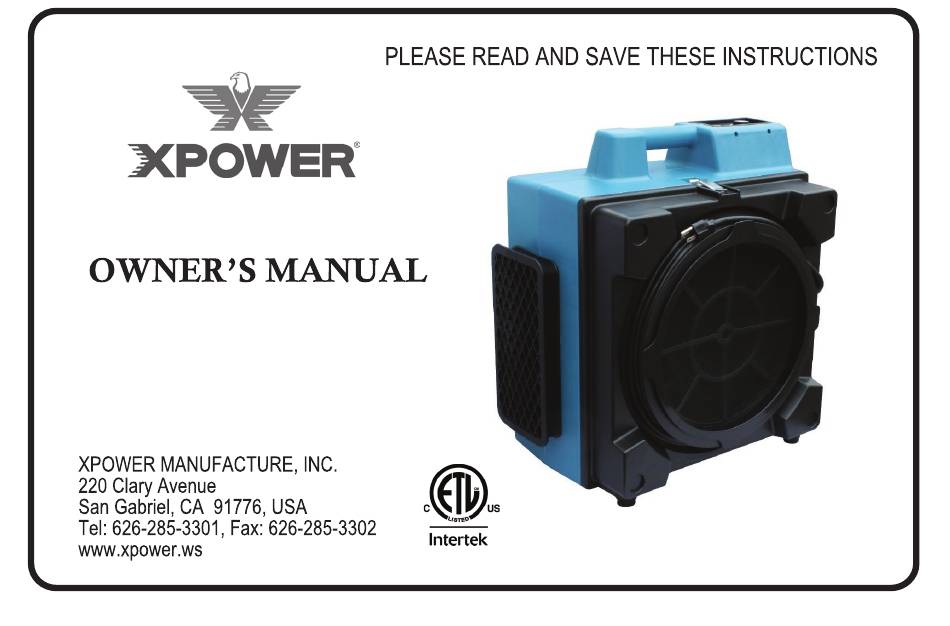

  • Page 1 AIR SCRUBBER X-3400A, X-3500, X-3700...

  • Page 2: Table Of Contents

    Index Introduction ..........................2 Safety Instructions ........................3 Operation ..........................4 Specifications .......................... 5 Parts List ..........................6~7 Additional Features ......................... 8 Filter Systems ........................9~10 Maintenance ........................11~15 Troubleshooting ........................16 Warranty / Service ........................17 Registration Form ........................18...

  • Page 3: Introduction

    • Filter change light illuminates when insufficient air passes through the HEPA filter • Stackable, compact, and lightweight design • X-3400A with GFCI daisy chain capability - connects up to 3 units using one power circuit • 2 airflow positions – upright (vertical) or horizontal...

  • Page 4: Safety Instructions

    Safety Instructions WARNING: IMPORTANT SAFETY PRECAUTIONS! PLEASE READ COMPLETELY BEFORE USING PRODUCT! When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including but not limited to the following: 1.

  • Page 5: Operation

    Operation 1. XPOWER Air Scrubbers are shipped ready-to-use. Prior to plugging the unit into the power source, inspect completely for any shipping damage. 2. Carefully place the Air Scrubbers upright on a stable, flat dry surface. 3. Plug the electrical cord into the power outlet.

  • Page 6: Specifications

    Specifications X-3500 X-3700 Model X-3400A 115V / 60Hz 115V / 60Hz Volt / Frequency 115V / 60Hz 1/3 HP 1/3 HP Power 1/2 HP 550 CFM 550 CFM Rated Airflow (On High) 700 CFM Variable Speed Variable Speed Speed Variable Speed 33.5 LBS...

  • Page 7: Parts List

    Parts List (ex. X-3400A) Item No. Parts Name Item No. Parts Name Removable Air Inlet Foam Cap Air Inlet Inlet Panel Latch 16”x16” Nylon Mesh Filter Activated Carbon Filter 2" Thick HEPA Filter GFCI Receptacle Front Housing Pressure Switch Motor...

  • Page 9: Additional Features

    Additional Features GFCI Daisy Chain for X-3400A XPOWER X-3400A Air Scrubber is GFCI daisy chainable with a low 2.8 amp draw. The 12-amp on-board circuit breaker will allow three (3) additional X-3400A units to run on one circuit at the same time.

  • Page 10: Filter Systems

    Filter Systems X-3500 X-3700 X-3400A 4-STAGE FILTER SYSTEM 4-STAGE FILTER SYSTEM 3-STAGE FILTER SYSTEM 1st stage - Outer Nylon Mesh Filter 1st stage - Nylon Mesh Filter 1st stage - Nylon Mesh Filter 2nd stage - Nylon Mesh Filter 2nd stage - Pleated Media Filter...
  • Page 11 Tpyes of Filters NFR12 NFS16 PF16 CF35 HEPA35 / HEPA50 12” Ø I.D. 16” x 16” 16” x 16” 16” x 16” x 1.4” (1.4” / 2” Thick ) Outer Nylon Mesh Nylon Mesh Pleated Media Activated Carbon 16” x 16” Filter Filter Filter...

  • Page 12: Maintenance

    Important: Filter Maintenance and Replacement The XPOWER Air Scrubbers offer 3 models with different varieties of filter configuration to suit your particular air filtration requirements. To help prevent cross-contamination between jobs, limit your liability, and to optimize the performance of your air scrubber, you should perform a basic maintenance routine between every use: decontaminate the entire unit inside and out, and replace the entire filter system (both pre-filters and primary) before placing the unit on a new job.
  • Page 13 Air Scrubber is turned off before removing filters. Before cleaning, remove all the debris from the nylon mesh, rinse with water and lay filter flat on a clean and dry surface and let dry completely before re-installing. NFR12 fits X-3500 model only; the NFS16 fits all XPOWER Air Scrubbers. Fig. 4 Fig.
  • Page 14 When putting the HEPA filter back into the machine, make sure the side with the gasket is facing the motor housing to prevent air leakage. HEPA35 fits X-3500; HEPA50 fits X-3400A & X-3700. - 13 -...
  • Page 15 CF35 - Activated Carbon Filters are used to remove contaminants and impurities through the process of chemical absorption. The CF35 captures a wide variety of volatile organic compounds that includes smoke, food odors, fumes from paint and paint thinners, sewer odors and more. Carbon Filters can be reused if the adsorbed substances are removed.
  • Page 16 The filters may need to be changed after certain period of time depending on your usage and the life of each type of filters. All filter accessories are available for purchase at XPOWER California office. Please call our Customer Service at (626) 376-0190 or email us at info@xpower.ws.

  • Page 17: Troubleshooting

    Switched off ON mode Motor not Power failure Check outlet/change to another outlet running Wiring failure Contact XPOWER for service/repair. Obstruction at the intake or exhaust of fan Remove obstruction Scraping noise from fan Fan broken Contact XPOWER for service/repair...

  • Page 18: Warranty / Service

    XPOWER Service Department. XPOWER will inspect, assess and advise the repairs needed and the applicable cost, if any. For users outside the US, please contact an XPOWER Distributor in your country or region for Warranty service and parts replacement.
  • Page 19 Warranty Registration (for US customer only) For your product warranty, please complete and mail / fax this form to XPOWER MANUFACTURE, INC. Address: 220 Clary Ave., San Gabriel, CA 91776. Tel: 626-285-3301 Fax: 626-285-3302 (For your convenience, register your product online at xpower.ws)
  • Page 21 • Filter change light illuminates when insufficient air passes through the HEPA filter • Stackable, compact, and lightweight design • X-3400A with GFCI daisy chain capability - connects up to 3 units using one power circuit • 2 airflow positions – upright (vertical) or horizontal...

  • Page 22: Registration Form

    Index Introduction ..........................2 Safety Instructions ........................3 Operation ..........................4 Specifications .......................... 5 Parts List ..........................6~7 Additional Features ......................... 8 Filter Systems ........................9~10 Maintenance ........................11~15 Troubleshooting ........................16 Warranty / Service ........................17 Registration Form ........................18 Safety Instructions WARNING: IMPORTANT SAFETY PRECAUTIONS! PLEASE READ COMPLETELY BEFORE USING PRODUCT!
  • Page 23 Operation 1. XPOWER Air Scrubbers are shipped ready-to-use. Prior to plugging the unit into the power source, inspect completely for any shipping damage. 2. Carefully place the Air Scrubbers upright on a stable, flat dry surface. 3. Plug the electrical cord into the power outlet.
  • Page 24 Specifications X-3500 X-3700 Model X-3400A 115V / 60Hz 115V / 60Hz Volt / Frequency 115V / 60Hz 1/3 HP 1/3 HP Power 1/2 HP 550 CFM 550 CFM Rated Airflow (On High) 700 CFM Variable Speed Variable Speed Speed Variable Speed Unit Weight 27.6 LBS...
  • Page 25 Additional Features GFCI Daisy Chain for X-3400A XPOWER X-3400A Air Scrubber is GFCI daisy chainable with a low 2.8 amp draw. The 12-amp on-board circuit breaker will allow three (3) additional X-3400A units to run on one circuit at the same time.
  • Page 26 Important: Filter Maintenance and Replacement The XPOWER Air Scrubbers offer 3 models with different varieties of filter configuration to suit your particular air filtration requirements. To help prevent cross-contamination between jobs, limit your liability, and to optimize the performance of your air scrubber, you should perform a basic maintenance routine between every use: decontaminate the entire unit inside and out, and replace the entire filter system (both pre-filters and primary) before placing the unit on a new job.
  • Page 27 Air Scrubber is turned off before removing filters. Before cleaning, remove all the debris from the nylon mesh, rinse with water and lay filter flat on a clean and dry surface and let dry completely before re-installing. NFR12 fits X-3500 model only; the NFS16 fits all XPOWER Air Scrubbers. Fig. 4 Fig.
  • Page 28 The filters may need to be changed after certain period of time depending on your usage and the life of each type of filters. All filter accessories are available for purchase at XPOWER California office. Please call our Customer Service at (626) 376-0190 or email us at info@xpower.ws.
  • Page 29 - 16 - Warranty Registration (for US customer only) For your product warranty, please complete and mail / fax this form to XPOWER MANUFACTURE, INC. Address: 220 Clary Ave., San Gabriel, CA 91776. Tel: 626-285-3301 Fax: 626-285-3302 (For your convenience, register your product online at xpower.ws)
  • Page 30 XPOWER Service Department. XPOWER will inspect, assess and advise the repairs needed and the applicable cost, if any. For users outside the US, please contact an XPOWER Distributor in your country or region for Warranty service and parts replacement.

This manual is also suitable for:

X-3500X-3700
