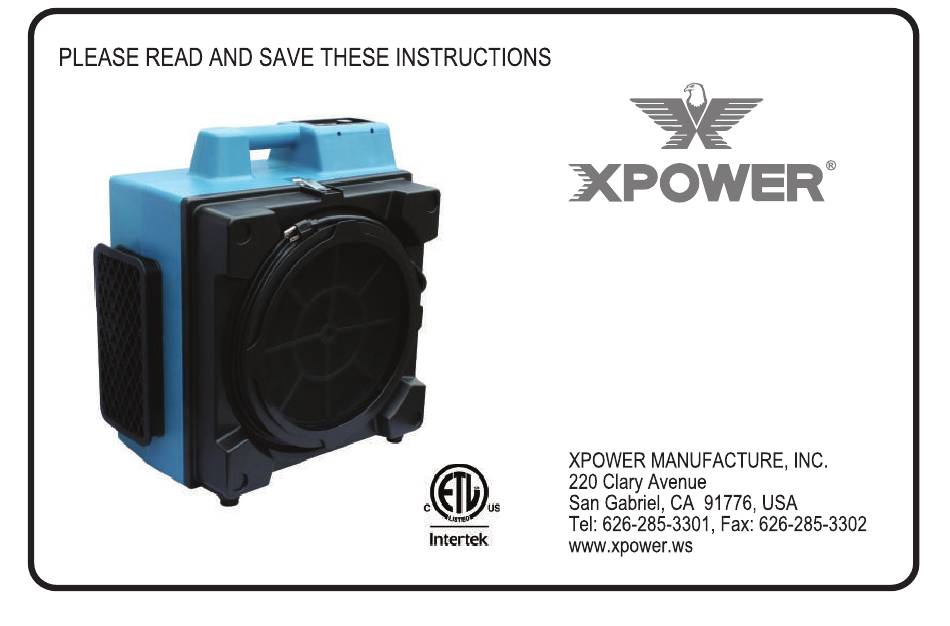

- Page 1 AIR SCRUBBER OWNER’S MANUAL Models: X-3300, X-3500...
-
Page 2: Table Of Contents
Parts List ..........................6~7 4-Stage Filtration Systems ...................... 8 Maintenance ........................9-14 Cleaning of Washable Nylon Pre-Filters ................10 X-3300 Primary Filter Care ....................11 X-3500 Primary Filter Care..................12-13 Filter Replacement ......................14 Troubleshooting ........................15 Warranty / Service ......................... 16... -
Page 3: Introduction
XPOWER's unique and highly innovative air scrubber purifying systems create a fresh, clean environment in even difficult areas such as grooming salons. Both the X-3500 & X-3300 feature an advanced technology 4 stage filtration system along with a powerful 1/3 HP high capacity motor for spaces up to 1500 sq. -
Page 4: Safety Instructions
Safety Instructions WARNING: IMPORTANT SAFETY PRECAUTIONS! PLEASE READ COMPLETELY BEFORE USING PRODUCT! When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including but not limited to the following: 1. -
Page 5: Operation
Operation 1. XPOWER Air Scrubbers are shipped ready-to-use. Prior to plugging the unit into the power source, inspect completely for any shipping damage. 2. Carefully place the Air Scrubber upright on a stable, flat dry surface. 3. Plug the electrical cord into the power outlet. -
Page 6: Specifications
Specifications MODEL NO. X-3300 X-3500 VOLTAGE / FREQUENCY 115 V / 60 Hz POWER 1/3 HP AMPERAGE 2.3 Amps (On Highest Speed) RATED AIRFLOW 550 CFM SPEEDS (RPM) Variable Speed Control (950 – 2,400 RPM) UNIT WEIGHT 30.5 lbs 32.8 lbs UNIT DIMENSIONS (L x W x H) 19.6"... -
Page 7: Parts List
Parts List Item No. Parts Name Item No. Parts Name Air Inlet Washable outer nylon mesh filter Inlet Panel Latch 16”x16” Nylon Mesh Filter Activated Carbon Filter Washable 1.4" Thick HEPA Filter Front Housing HEPA Filter Change Light Pressure Switch Control Panel Speed Control Knob Potentiometer... - Page 8 10 11...
-
Page 9: 4-Stage Filtration Systems
3rd Stage 4th Stage 4-Stage Filtration Systems 2nd Stage 1st Stage WF35 (Double Layered) 16” x 16” x 1.4” Washable PET Purifying Filter NFR12 12” Ø I.D. NFS16 16” x 16” Washable Outer Washable Inner Nylon Mesh Filter Nylon Mesh Filter CF35 HEPA35 16”... -
Page 10: Maintenance
Basic routine maintenance of filters is required to optimize performance of your air scrubber and extend the life of primary filters. Both the XPOWER X-3300 and X-3500 filtration system include easy to clean, washable nylon pre-filters that should be frequently maintained. -
Page 11: Cleaning Of Washable Nylon Pre-Filters
The NFR12 and NFS16 filters are used for X-3300 and X-3500 air scubbers as first two stages. Both filters needs to be cleaned frequently, especially for the Outer Nylon Mesh Filter NFR12. -
Page 12: X-3300 Primary Filter Care
X-3300 Primary Filter Care WF35 – Two layers of washable PET Purifying Filters are featured with the X-3300 Air Scubber. These filters trap smaller contaminants to alleviate allergies and other common respiratory problems. The Primary WF35 filters require a simple maintenance routine for effective performance.The Filter Change Light will light up when filters need attention. -
Page 13: X-3500 Primary Filter Care
X-3500 Primary Filter Care CF35 - Activated Carbon Filters are used to remove contaminants and impurities through the process of chemical absorption. The CF35 captures a wide variety of volatile organic compounds that includes smoke, food odors, fumes from paint and paint thinners, sewer odors and more. Carbon Filters can be reused if the adsorbed substances are removed. - Page 14 X-3500 Primary Filter Care (cont’d) HEPA35 – HIGH EFFICIENCY PARTICULATE AIR FILTER, also known as HEPA filter, ensures superior air quality inside our homes and protects us from a wide range of health risks associated with indoor air pollution. the filter is designed and implemented to trap even the tiniest contaminants (approximately 99.97% of all particles measuring 0.3 microns) that aren’t usually captured by traditional air filters, in order to prevent allergies and other common respiratory problems.
-
Page 15: Filter Replacement
The filters may need to be changed after certain period of time depending on your usage and the life of each type of filters. All filter accessories are available for purchase directly from XPOWER's headquarters in California. Please call our Customer Service at (626) 376-0190 or email us at info@xpower.ws. -
Page 16: Troubleshooting
Switched off ON mode Motor not Power failure Check outlet/change to another outlet running Wiring failure Contact XPOWER for service/repair. Obstruction at the intake or exhaust of fan Remove obstruction Scraping noise from fan Fan broken Contact XPOWER for service/repair... -
Page 17: Warranty / Service
XPOWER Service Department. XPOWER will inspect, assess and advise the repairs needed and the applicable cost, if any. For users outside the US, please contact an XPOWER Distributor in your country or region for Warranty service and parts replacement. - Page 18 XPOWER Pet Products for Professional Grooming Industry Force Dryers B-3 (2 HP / 8 Amps / 130 CFM) - with vacuuming feature B-4 (3 HP / 10 Amps / 150 CFM) -with vacuuming feature B-8 (4 HP / 12 Amps / 150 CFM) - brushless DC motor with heater...
-
Page 19: Registration Form
Warranty Registration (for US customer only) For your product warranty, please complete and mail / fax this form to XPOWER MANUFACTURE, INC. Address: 220 Clary Ave., San Gabriel, CA 91776. Tel: 626-285-3301 Fax: 626-285-3302 (For your convenience, register your product online at xpower.ws) - Page 21 XPOWER's unique and highly innovative air scrubber purifying systems create a fresh, clean environment in even difficult areas such as grooming salons. Both the X-3500 & X-3300 feature an advanced technology 4 stage filtration system along with a powerful 1/3 HP high capacity motor for spaces up to 1500 sq.
- Page 22 Parts List ..........................6~7 4-Stage Filtration Systems ...................... 8 Maintenance ........................9-14 Cleaning of Washable Nylon Pre-Filters ................10 X-3300 Primary Filter Care ....................11 X-3500 Primary Filter Care..................12-13 Filter Replacement ......................14 Troubleshooting ........................15 Warranty / Service ......................... 16 Registration Form ........................
- Page 23 Operation 1. XPOWER Air Scrubbers are shipped ready-to-use. Prior to plugging the unit into the power source, inspect completely for any shipping damage. 2. Carefully place the Air Scrubber upright on a stable, flat dry surface. 3. Plug the electrical cord into the power outlet.
- Page 24 Specifications MODEL NO. X-3300 X-3500 VOLTAGE / FREQUENCY 115 V / 60 Hz POWER 1/3 HP AMPERAGE 2.3 Amps (On Highest Speed) RATED AIRFLOW 550 CFM SPEEDS (RPM) Variable Speed Control (950 – 2,400 RPM) UNIT WEIGHT 30.5 lbs 32.8 lbs UNIT DIMENSIONS (L x W x H) 19.6"...
- Page 25 The NFR12 and NFS16 filters are used for X-3300 and X-3500 air scubbers as first two stages. Both filters needs to be cleaned frequently, especially for the Outer Nylon Mesh Filter NFR12.
- Page 26 X-3300 Primary Filter Care WF35 – Two layers of washable PET Purifying Filters are featured with the X-3300 Air Scubber. These filters trap smaller contaminants to alleviate allergies and other common respiratory problems. The Primary WF35 filters require a simple maintenance routine for effective performance.The Filter Change Light will light up when filters need attention.
- Page 27 The filters may need to be changed after certain period of time depending on your usage and the life of each type of filters. All filter accessories are available for purchase directly from XPOWER's headquarters in California. Please call our Customer Service at (626) 376-0190 or email us at info@xpower.ws.
- Page 28 Switched off ON mode Motor not Power failure Check outlet/change to another outlet running Wiring failure Contact XPOWER for service/repair. Obstruction at the intake or exhaust of fan Remove obstruction Scraping noise from fan Fan broken Contact XPOWER for service/repair...
- Page 29 XPOWER Service Department. XPOWER will inspect, assess and advise the repairs needed and the applicable cost, if any. For users outside the US, please contact an XPOWER Distributor in your country or region for Warranty service and parts replacement.
- Page 30 XPOWER Pet Products for Professional Grooming Industry Force Dryers B-3 (2 HP / 8 Amps / 130 CFM) - with vacuuming feature B-4 (3 HP / 10 Amps / 150 CFM) -with vacuuming feature B-8 (4 HP / 12 Amps / 150 CFM) - brushless DC motor with heater...
