Summary of Contents for XPower AP-2500D

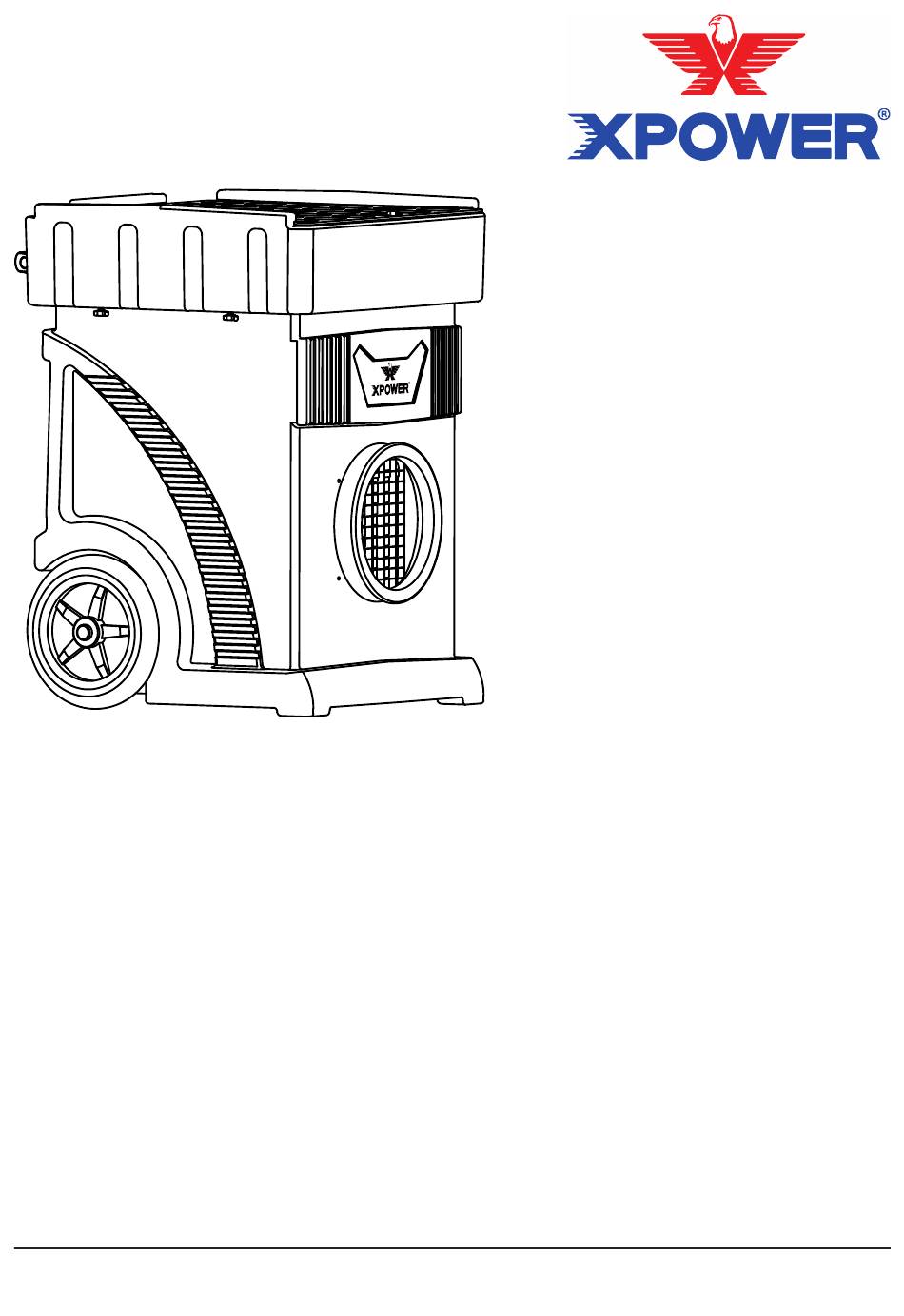

- Page 1 Air Scrubber Owner's Manual Model AP-2500D (115V~60HZ) Read and save these instructions www.xpower.com | 1-(855)-855-8868 | info@xpower.com Index: NA-1-A40 Edition: 1.1.Final...
-
Page 2: Safety Instructions
• If the appliance is damaged or it malfunctions, continue to use it. Unplug the product from the electrical outlet. Refer to troubleshooting guide or contact XPOWER. • Store in a dry area, away from exposure to sunlight, extreme temperature and humidity, or other extreme environments, when not in use. -
Page 3: Parts Description
Parts Description 18 19 20 22 23 24 25 26 27 English - 3... -
Page 4: Items Included
(1) Inlet Grille Cover Screw (13) Motor Left Housing (26) Speed Switch Circuit (2) Inlet Grille Cover (14) Motor Control Circuit Board (3) Rigid Polyester Filter Board Assembly (27) Circuit Breaker (4) Pleated Media Filter (15) Rivet Nut (28) Air Quality Sensor Box (5) Plastic V-Shaped HEPA (16) Filter Fixator (29) Pressure Gauge... - Page 5 Installation and Operation Guide Extension Setup (Optional) Exhaust Ducting • Turn off the machine. • Attach the ducting hose to the exhaust. Selecting a Location (Important) • Enclosed Area: For optimal efficiency and longer filter lifespan, the Air Scrubber should be operated in an enclosed area.
-
Page 6: Reset Button
Control Panel Air Quality Good Moderate Poor Air Quality Monitor Circuit Breaker Power Switch Speed Switch Air Quality Sensor Pressure Gauge Air Quality Air Quality Good Moderate Poor Air Quality Monitor • When this monitor blinks, it indicates the Air Quality Sensor is now preparing for Good Moderate Poor Air Quality Monitor Circuit Breaker... - Page 7 Control Panel (Continued) Speed Switch • Turn to “OFF” position to switch the Ventilateur Axial OFF. Turn clock-wisely to any position between “MAX” and “MIN” to switch the Ventilateur Axial ON. • You can adjust to any desired speed variably. “MAX” is the highest speed and “MIN” is the lowest speed.
-
Page 8: User Maintenance Instructions
User Maintenance Instructions Frequent maintenance is recommended on this appliance. Failure to follow the maintenance instructions may cause failure of the appliance and void the warranty. Before performing any maintenance or cleaning, always disconnect the Air Scrubber from its power source. Machine Maintenance •... - Page 9 Filter Maintenance To ensure the best filtration efficiency and to prevent secondary pollution of used filters, you should replace or clean the filters frequently or when the filter clean/change light illuminates. Please follow the instructions below. Unload the filters (See Also Page 3: Parts Description) •...
- Page 10 • When placing the filter, the side with label should face up. The arrow on the label should point to the exhaust. * All replacement filters are available on www.xpower.com. English - 10...
-
Page 11: Troubleshooting Guide
(See Page 8: Filter illuminates. Maintenance) The additional The circuit breaker trips. Press circuit reset button. electrical receptacle has no power If troubleshooting does not resolve your problem, please contact XPOWER or other parties authorized by XPOWER for further instructions. English - 11... -
Page 12: Technical Specification
Technical Specification Machine Specification MODEL NUMBER AP-2500D Voltage/Frequency 115 V~60 Hz Amperage 8.0 A Rated Airflow 2000 CFM Speed Control Variable Speeds Cord Length 25 ft. / 7.6 m Unit Dimension 29.4 x 26.7 x 38.8 in. / 74.8 x 67.8 x 98.6 cm... -
Page 13: Year Limited Warranty
(1) Please finish the online warranty registration before usage. Visit www.xpower.com/ service-support/warranty-registration. (2) This Limited Warranty applies with its own timeliness. Contact XPOWER or visit www.xpower.com for more information. Items mentioned but not limited to below are not covered by warranty: (1) Power cord, filters or any other components considered as a “consumable parts”... - Page 14 (1) Request a RMA (Return-Merchandise-Authorization) number. (2) Use the original or an equivalent packaging, prepay shipping charges at your own expense to the address provided by XPOWER, with the RMA number on the shipping label or the packaging. (3) Include all the original parts and components.
- Page 15 English - 15...
- Page 16 XPOWER Manufacture, INC. 668 S. 6th Ave., City of Industry, CA 91746 USA www.xpower.com | 1-(855)-855-8868 | info@xpower.com Read and save these instructions Index: NA-1-A40 Edition: 1.1.Final...
