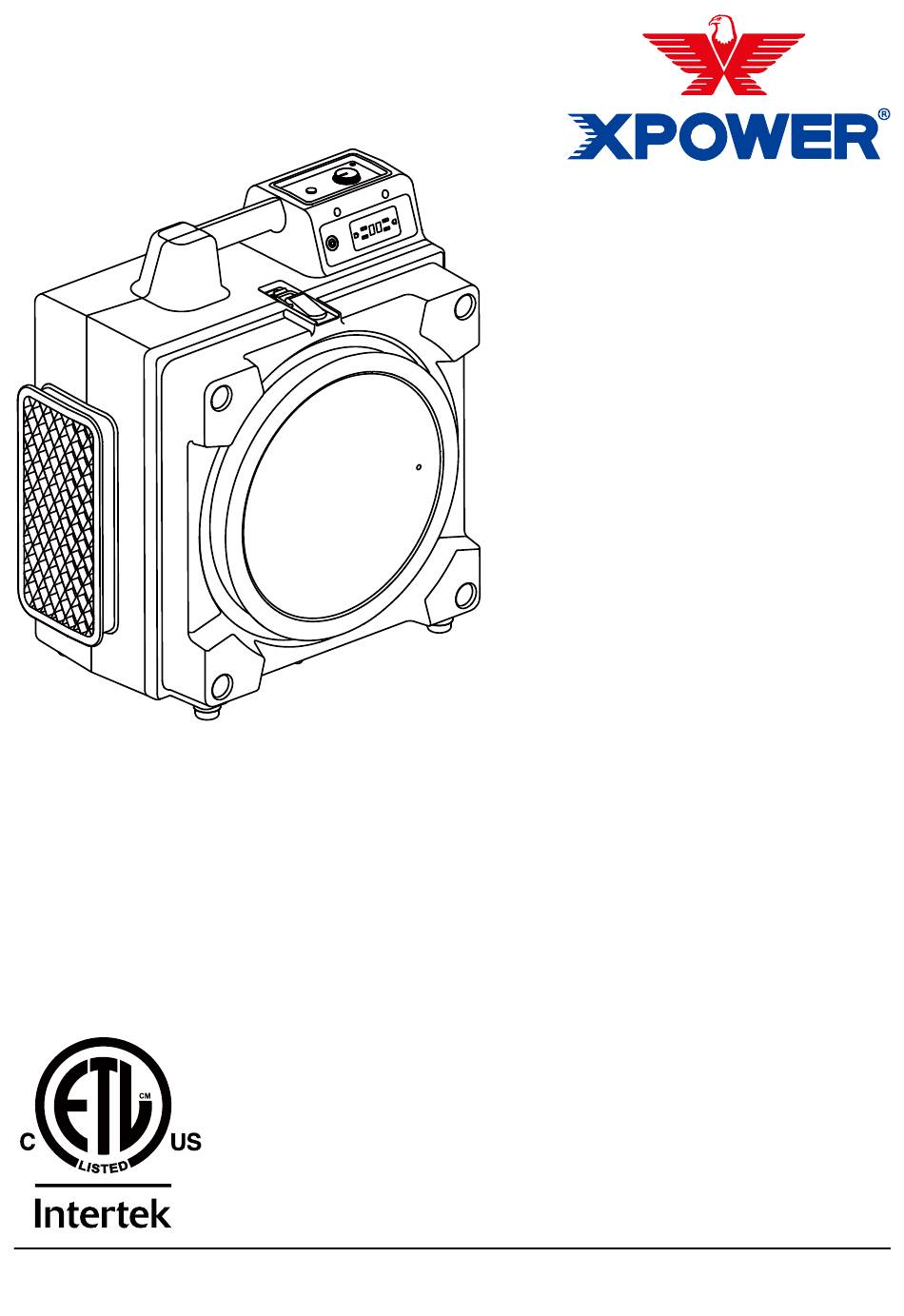

Air Scrubber Owner's Manual
Model:
X-2000 Series / X-3000 Series
(115V 60HZ)
Read and save these instructions before use
www.xpower.com | 1-(855)-855-8868 | info@xpower.com
Index: NA-1-A7
Edition: 1.3.Final

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-3000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for XPower X-3000 Series

  • Page 1 Air Scrubber Owner's Manual Model: X-2000 Series / X-3000 Series (115V 60HZ) Read and save these instructions before use www.xpower.com | 1-(855)-855-8868 | info@xpower.com Index: NA-1-A7 Edition: 1.3.Final...
  • Page 2: Safety Instructions

    • If the appliance is damaged or it malfunctions, continue to use it. Unplug the product from the electrical outlet. Refer to troubleshooting guide or contact XPOWER. • Store in a dry area, away from exposure to sunlight, extreme temperature and humidity, or other extreme environments, when not in use.
  • Page 3: Items Included

    P-80 Series, P-100 Series, P-200 Series (115V 60HZ) Read and save these instructions before use Lea y guarde estas instrucciones antes de usar la unidad Lire et conserver ces instructions avant utilisation www.xpower.com | 1-(855)-8868 | info@xpower.com Index: NA-1-A2 Edition: 1.0.Alpha Parts Description Machine (Continued)
  • Page 4 The graph only presents the appearance of the filters. The actual sizes of filters with (See Page 15: Technical Specifications) different part number could be slightly different. If your product(s) is not listed above, please visit www.xpower.com for more information. English - 4...
  • Page 5 • Air Circulation: It’s suggested to have a constant efficient air circulation inside your working area. You may achieve this with XPOWER Air Mover combinations. • Environment Humidity: For optimal efficiency and higher filter lifespan, the Air Scrubber should not be operated in an environment with a high relative humidity level.
  • Page 6 Extension Setup (Optional) For model X-2380/X-2400A/X-2580/X-3380/X-3400A/X-3580 only. Outer Nylon Foam Cover Mesh Filter Intake Ducting • Turn off the machine and remove the outer nylon mesh filter* and foam cover**. • Attach the ducting hose to the intake. * For model X-2380/X-2580/X-3380/X-3580 only. ** For model X-2480A/X-3400A only.
  • Page 7 Control Panel Filter change light Filter Change Light Variable Speed Control Five Speed Control Filter Change Light This indicates that the filters have exceeded the maximum capacity of particles, and the filtration efficiency has diminished. You should clean or replace the filters. (See Page 10: Filter Maintenance)
  • Page 8 Additional Electrical Receptacle* (Daisy Chain) * The additional electrical receptacle function does not apply to all models mentioned in this manual. (See Page 14: Technical Specifications) Regular Additional Electrical Receptacle (For model X-2480A) AUXILIARY OUTLET 115 VOLTS AC Circuit Electrical Reset Receptacle Button...
  • Page 9: User Maintenance Instructions

    Transportation Handle Carry with Handle Stack in Carrier Lift the Air Scrubber with the You can stack up to 5 Air Scrubbers handle on the top of the housing. and transport. User Maintenance Instructions Frequent maintenance is recommended on this appliance. Failure to follow the maintenance instructions may cause failure of the appliance and void the warranty.
  • Page 10 Machine Maintenance (Continued) (Continued) Organize the Cord • Wrap the power cord around the intake for storage after use.* • Use convenient clip at end of cord to secure in place. * Wrap-around design does not apply to all models mentioned in this manual. Filter Maintenance To ensure the best filtration efficiency and to prevent secondary pollution of used filters, you should replace or clean the filters frequently or when the filter change light...
  • Page 11 Filter Maintenance (Continued) Other Filters Open the filter cover by releasing the latch kit on top. Unload other filters inside. (See Also Page 4: Filters) Clean the filters • Nylon Mesh Filters/Washable Filters: These filters are washable with water. Use a vacuum or clean cloth to remove loose debris.
  • Page 12 Filter Maintenance (Continued) WArninG: DisposAl oF Filters no lonGer in use The particles captured by a used filter can cause adverse human health effects and contaminate the nearby environment once the filter is exposed to the open air. Adequate personal protection equipment (PPE) is required during the whole process, for example, industry approved masks, eye protectors, gloves and coveralls.
  • Page 13 Filter Maintenance (Continued) Last Stage Filter: • On one of the side of the last stage filter, there is an EVA sealing pad around the frame. Former • The last stage filter must be Stage Housing loaded with EVA side facing Filters the machine housing.
  • Page 14: Troubleshooting Guide

    */** The additional electrical receptacle / GFCI function does not apply to all models mentioned in this manual (See Page 14: Technical Specifications). If troubleshooting does not resolve your problem, please contact XPOWER or other parties authorized by XPOWER for further instructions. English - 14...
  • Page 15 English - 15...
  • Page 16: Technical Specification

    32.8 lbs. Unit Weight 23.6 lbs. / 10.7 kg / 10.4 kg / 13.8 kg / 13.1 kg / 14.9 kg Safety ETL/C-ETL Certification If your product(s) is not listed above, please visit www.xpower.com for more information. English - 16...
  • Page 17 Filter Specification FILTER MODEL Type of Filter Size Thickness Function NUMBER NFR9 9 x 9 in. NFR12 12 x 12 in. Primary filtration for Nylon Mesh Filter visible and coarse particles. NFS13 13 x 13 in. NFS16 16 x 16 in. PF13 13 x 13 in.
  • Page 18 (3) Visit XPOWER U.S. Head Office at 240 Clary Ave., San Gabriel, CA 91776 or the most current address provided on www.xpower.com. Please also have your original proof of purchase and the serial number(s) of your product(s) ready when you contact XPOWER.
  • Page 19 (1) Request a RMA (Return-Merchandise-Authorization) number. (2) Use the original or an equivalent packaging, prepay shipping charges at your own expense to the address provided by XPOWER, with the RMA number on the shipping label or the packaging. (3) Include all the original parts and components.
  • Page 20 XPOWER Manufacture, INC. 240 Clary Avenue San Gabriel, CA 91776 USA www.xpower.com | 1-(855)-855-8868 | info@xpower.com Read and save these instructions before use Index: NA-1-A7 Edition: 1.3.Final...
