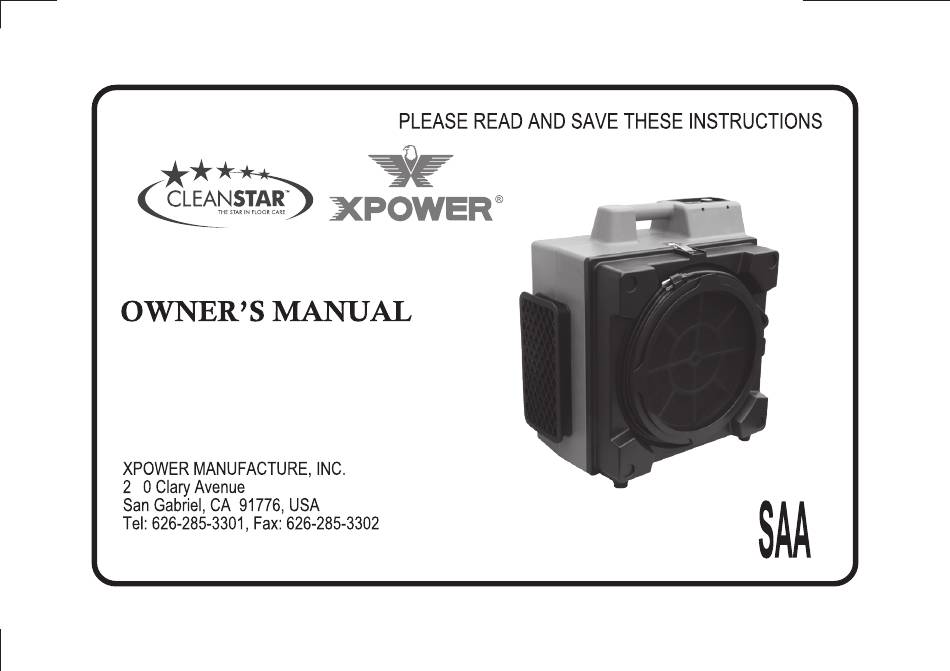

- Page 1 AIR SCRUBBER X-2480,X-3480,X-3780 X-3400, X-3700...
-
Page 2: Table Of Contents
Index Introduction ............................. 2 Safety Instructions .......................... 3 Operation ............................4 Specifications ..........................5 Parts List (ex. X-2480 and X-3400) .................... 6~9 Additional Features ........................10 Filter Systems ......................... 11~12 Maintenance ........................... 13~17 Troubleshooting ..........................18 Warranty/Service ...........................19 - 1 -... -
Page 3: Introduction
HEPA and activated carbon filters – you can be sure the XPOWER Air Scrubbers can contain ground-water contaminants that lead to environmental and human toxicity. The air filtra- tion system captures a wide range of compounds and prevents organism migration from location to location. -
Page 4: Safety Instructions
Safety Instructions WARNING: IMPORTANT SAFETY PRECAUTIONS! PLEASE READ COMPLETELY BEFORE USING PRODUCT! When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including but not limited to the following: 1. -
Page 5: Operation
Operation In order to remove airborne particles from the surrounding environment, XPOWER Air Scrubbers are designed to draw air through a series of filters and deliver the purest air. Each filter stage operates with progressively higher efficiency. The unit removes airborne particles like hair, skin flakes, visible dust, mold spores, pollen, pet dander and miscellaneous debris. -
Page 6: Specifications
Specifications Model X-3400/X-3480 X-2480 X-3700/X-3780 Volt / Frequency 220-240V / 50Hz 220-240V / 50Hz 220-240V / 50Hz Power 220W 220W 220W Rated Airflow (On High) 600 CFM 550 CFM 600 CFM Speed Variable Speed/5 Speeds 5 Speeds Variable Speed/5 Speeds 49.8 x 31.2 x 54.9cm/... -
Page 7: Parts List (Ex. X-2480 And X-3400)
Air Valve Bracket Pressure Sensor/Switch Air Outlet Grill Rear Housing HEPA Filter Clean/Change Light Speed Control Knob Control Panel Switch ** Actual parts are not limited on this list, contact XPOWER or local distributor for ordering parts. - 6 -... - Page 8 17 18 - 7 -...
- Page 9 2" Thick HEPA Filter Capacitor Front Housing Pressure Sensor/Switch Filter Change Light Speed Control Knob Control Panel Potentiometer Air Outlet Grille Rear Housing ** Actual parts are not limited on this list, contact XPOWER or local distributor for ordering parts. - 8 -...
- Page 10 13 14 10 11 - 9 -...
-
Page 11: Additional Features
The red Filter Clean/Change indicator Light will illuminate when accumulated debris is over-satu- rated, and filter needs to be cleaned. If the light is still illuminated after the filters are cleaned, the filter(s) possibly need to be replaced. X-3400,X-3700 Switch Panel X-2480,X-3480,X-3780 Switch Panel - 10 -... -
Page 12: Filter Systems
Filter Systems X-2480 X-3700/X-3780 X-3400/X-3480 3-STAGE FILTER SYSTEM 4-STAGE FILTER SYSTEM 3-STAGE FILTER SYSTEM 1st stage - Nylon Mesh Filter NFS13 1st stage - Nylon Mesh Filter NFS16 1st stage - Nylon Mesh Filter NFS16 2nd stage - Pleated Media Filter PF13... - Page 13 Tpyes of Filters NFS16 PF16 CF35 HEPA50 16” x 16” 16” x 16” 16” x 16” x 1.4” (2” Thick ) Nylon Mesh Filter Pleated Media Filter Activated Carbon Filter 16” x 16” HEPA Filter NFS13 PF13 HEPA35-33 13” x 13” (13”...
-
Page 14: Maintenance
Important: Filter Maintenance and Replacement The XPOWER Air Scrubbers offer 3 models with different varieties of filter configuration to suit your particular air filtration requirements. To help prevent cross-contamination between jobs, limit your liability, and to optimize the performance of your air scrubber, you should perform a basic maintenance routine between every use: decontaminate the entire unit inside and out, and replace the entire filter system (both pre-filters and primary) before placing the unit on a new job. - Page 15 Air Scrubber is turned off before removing filters. Before cleaning, remove all the debris from the nylon mesh, rinse with water and lay filter flat on a clean and dry surface and let dry completely before re-installing. The NFS13 fits X-2480,the NFS16 fitsX-3400,X-3480,X-3700,X-3780 Air Scrubbers. - 14 -...
- Page 16 Use vacuum or clean cloth and lay it flat on a clean, dry surface. When putting the HEPA filter back into the machine, make sure the side with the gasket is facing the motor housing to prevent air leakage. HEPA35-33 fits X-2480; HEPA50 fits X-3400,X-3480, X-3700,X-3780. - 15 -...
- Page 17 CF35 - Activated Carbon Filters are used to remove contaminants and impurities through the process of chemical absorption. The CF35 captures a wide variety of volatile organic compounds that includes smoke, food odors, fumes from paint and paint thinners, sewer odors and more. Carbon Filters can be reused if the adsorbed substances are removed.
-
Page 18: Filter Replacement
Filter Replacement The filters may need to be changed after certain period of time depending on your usage and the life of each type of filters. Always wear a respirator and personal protective gear when removing or replacing filters. Lay the Air Scrubber flat, unlock top latch of the housing, open the inlet panel and remove filters. -
Page 19: Troubleshooting
ON mode Motor not Power failure Check outlet/change to another outlet running Wiring failure Contact XPOWER for service/repair. Obstruction at the intake or exhaust of fan Remove obstruction Scraping noise from fan Fan broken Contact XPOWER for service/repair. -
Page 20: Warranty/Service
XPOWER LIMITED WARRANTY XPOWER warrants this product to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. The liability of XPOWER is limited solely to the cost of the repair or replacement of parts/the unit at XPOWER’s discre�on.
