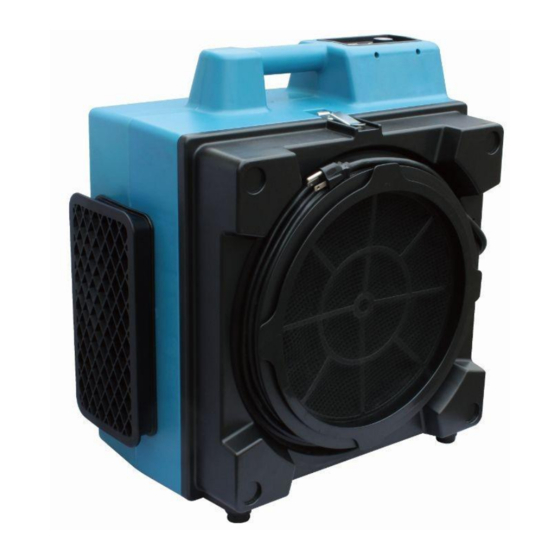

XPower X-3400A Owner's Manual
Hide thumbs
Also See for X-3400A:
- Owner's manual (20 pages) ,
- Owner's manual (20 pages) ,
- Owner's manual (30 pages)
Subscribe to Our Youtube Channel
Related Manuals for XPower X-3400A
Summary of Contents for XPower X-3400A

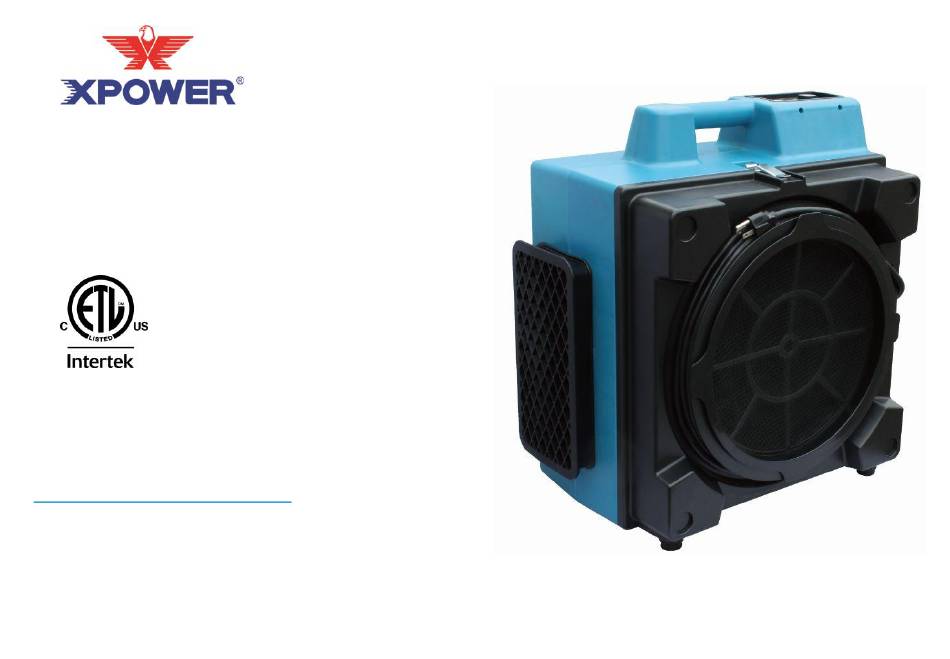

- Page 1 X-3400A, X-3500, X-3700 OWNER’S MANUAL XPOWER MANUFACTURE, INC. 220 Clary Avenue San Gabriel, CA 91776, USA Tel: 626-285-3301, Fax: 626-285-330 PLEASE READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
Index Introduction..........................2 Operation Instructions......................3 Safety Instructions........................4 Maintenance Instructions/Troubleshooting................5-6 Specifications..........................7 Parts List............................ 8-9 Accessories ..........................10-12 Warranty/Service........................13 Warranty Registration Form ....................... 14... -
Page 3: Introduction
Filter change light illuminates when insufficient air passes through the HEPA filter • Stackable, compact and lightweight design • X-3400A with GFCI daisy chain capability - connects up to 3 units using one power circuit • 2 airflow positions – upright (vertical) or horizontal •... -
Page 4: Operation Instructions
In order to remove airborne particles from the surrounding environment, XPOWER Air Scrubbers are designed to draw air through a series of filters and deliver the purest air. Each filter stage operates with progressively higher efficiency. The unit removes airborne particles like hair, skin flakes, visible dust, mold spores, pollen, pet dander and miscellaneous debris. -
Page 5: Safety Instructions
Safety Instructions 1. To prevent electric shock, do not operate the unit in standing water. Never plug in or unplug the unit with wet hands or while standing in water. 2. To avoid risk of injury, do not direct air flow at face or body. 3. -
Page 6: Maintenance Instructions/Troubleshooting
Maintenance Instructions 1. To keep the Air Scrubber clean, use a damp cloth to wipe the surface of the housing. 2. Never clean the Air Scrubber with water. 3. W hen not in use, unplug and store the Air Scrubber in a dry indoor place out of reach of children. - Page 7 Switched off ON mode Motor not running Power failure Check outlet/change to another outlet Wiring failure Contact XPOWER for service/repair. Obstruction at the intake or exhaust of fan Remove obstruction Scraping noise from fan Fan broken Contact XPOWER for service/repair...
-
Page 8: Specifications
Specifications X-3500 X-3700 Model X-3400A Volt / Frequency 115V / 60Hz 115V / 60Hz 115V / 60Hz Power 220W 220W 220W 2.3 Amp 2.3 Amp 2.8 Amp Rated Airflow (On High) 600 CFM 550 CFM 550 CFM Variable Speed Variable Speed... -
Page 9: Parts List
X-3400A Parts list Item No. Parts Name Item No. Parts Name Removable Air Inlet Foam Cap Air Inlet Inlet Panel Latch 16”x16” Nylon Mesh Filter Activated Carbon Filter 2" Thick HEPA Filter GFCI Receptacle Front Housing Pressure Switch Motor HEPA Filter Change Light... -
Page 11: Accessories
X-3400A GFCI Daisy Chain XPOWER X-3400A Air Scrubber is GFCI daisy chainable with a low 2.8 amp draw. The 12-amp on-board circuit breaker will allow three (3) additional X-3400A units to run on one circuit at the same time. X-3400A Air Scrubber has an on-board Circuit Breaker. If the Auxiliary Outlet overloads, the Circuit Breaker will trip. - Page 12 Filter Description X-3700 X-3500 X-3400A 4-STAGE FILTER SYSTEM 4-STAGE FILTER SYSTEM 3-STAGE FILTER SYSTEM stage - Nylon Mesh Filter stage - Outer Nylon Mesh Filter stage - Nylon Mesh Filter stage - Pleated Media Filter stage - Nylon Mesh Filter...
- Page 13 16”x16” 16”x16” 16”x16” 16”x16” 12” Ø I.D. HEPA Filter Activated Pleated Nylon Outer Nylon 1.4” Thick / 2” Thick Carbon Filter Media Filter Mesh Filter Mesh Filter...
-
Page 14: Warranty/Service
End user will be responsible to ship the unit (with RMA Number showing on the shipping label) to the XPOWER Service Department. XPOWER to inspect, assess and advise the repairs needed and the applicable cost, if any. For customers outside the US, please contact XPOWER Distributor in your country or region for Warranty service and parts replacement. -
Page 15: Warranty Registration Form
WARRANTY REGISTRATION (for US customers only) For your product warranty, please complete and mail / fax this form to XPOWER MANUFACTURE, INC. Address: 220 Clary Ave., San Gabriel, CA 91776. Tel: 626-285-3301; Fax: 626-285-3302 Company Name / Contact Person / Title _______________________________________... - Page 16 From: ________________________ ________________________ ________________________ XPOWER MANUFACTURE, INC. 220 Clary Avenue San Gabriel, CA 91776, USA Tel: 626-285-3301; Fax: 626-285-3302...
