The PCB is mounted in the upper part of the wired controller. Be
careful not to damage the board with the slot screwdriver.
NOTE
Fasten the back plate of the wired controller
•

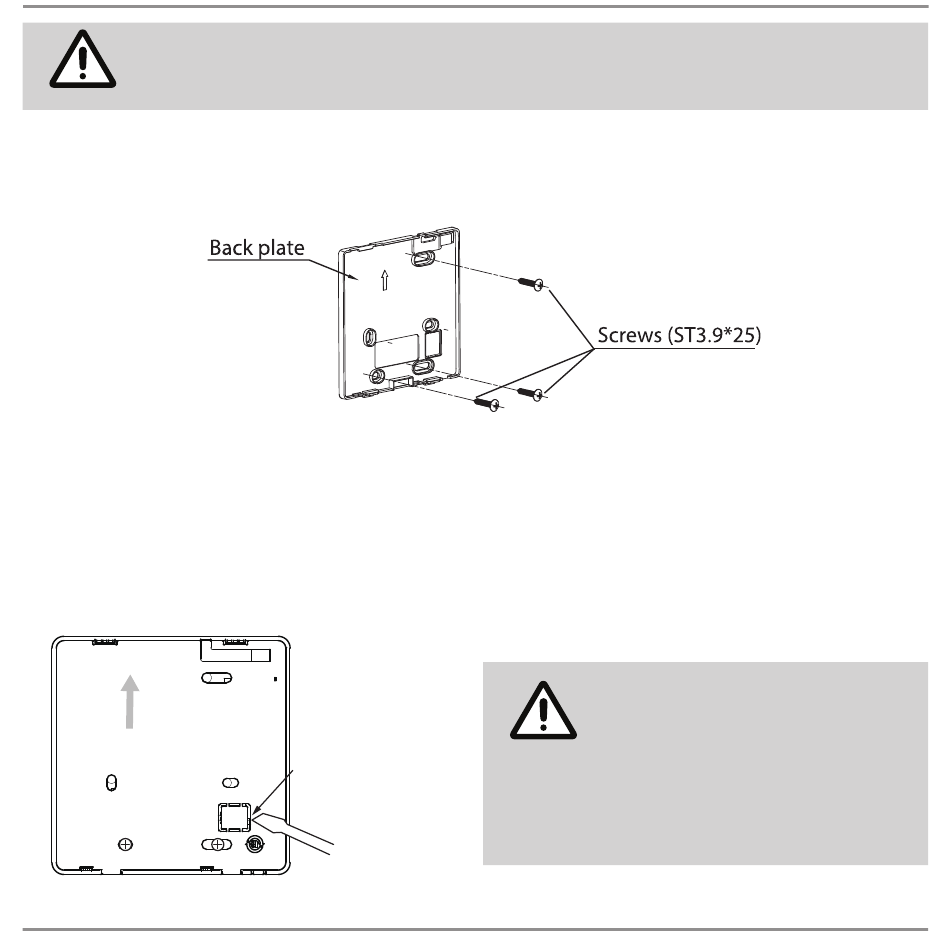

Fasten the back plate on the wall with the 3 screws (ST3.9*25) and plugs
(Figure 3) provided.
Fasten the back plate of the wired controller
•
Remove plastic knockout from the backing plate (Figure 4).
•
Create a hole in the wall to access the wall cavity for routing the loom from FCU
to controller.
Figure 4.
Rinnai
Figure 3.
Remove knockout
10
Put on a flat surface.
Be careful not to distort
the back plate of the
NOTE
wire controller by over
tightening the mounting
screws.
DRCi R32 Wired Controller OIM
