Eden 94095EDAMZ Manual

METAL 18 NOZZLES 3-WAY VARIABLE-WIDTH
OSCILLATING SPRINKLER
Use this manual to familiarize yourself with the various parts and components, the use, handling and features of the
sprinkler. Save this manual for future reference.

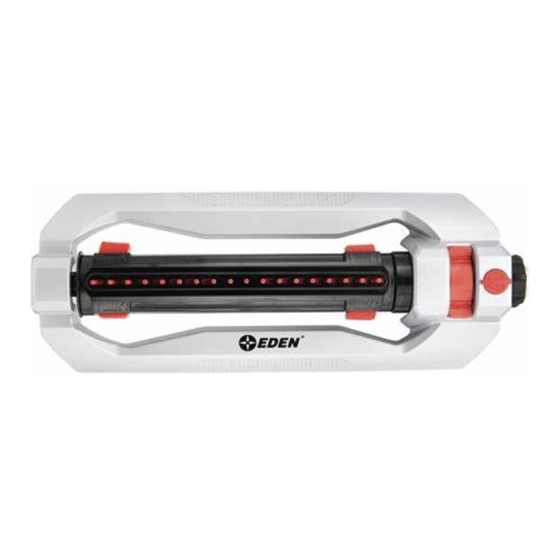

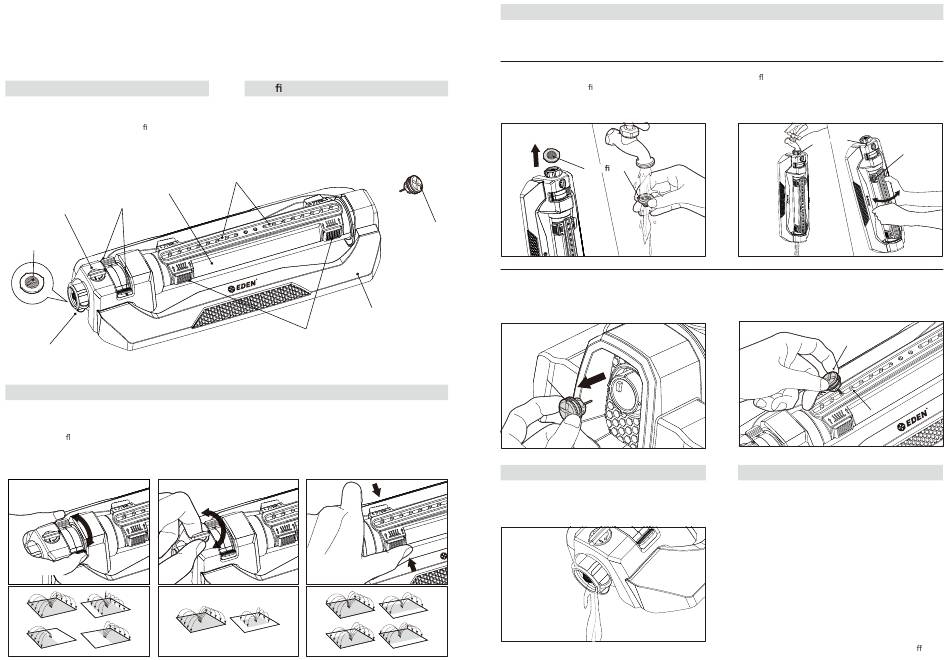

Get To Know Your Sprinkler
1. Base 6. Flow control
2. Oscillator tube 7. Hose connection
3. Spray nozzles (18) 8. Inlet lter
4. Width Adjustment tabs 9. Cleaning pin
5. Sliding tabs
2.
5.
6.
8.
7.
Usage
1. Attach your garden hose to the sprinkler.
2. Use the range sliding tabs to select desired rectangular watering distance. (Fig 1 )
3. Turn water ow control knob to regulate water pressure. (Fig 2)
4. Press Width Adjustment Tabs for wide to narrow spray path.(Fig 3)
5. Turn on the faucet and check to see how the coverage is working. Make adjustments to suit your needs.
Fig. 1 Fig. 2
94095EDAMZ
Speci cations
Plastic nozzle heads : 18
Adjustable range control : Yes
Coverage Max : 4,000 sq. ft. (371m²)
(Based on 40 Psi / 2.768 Bar)
3.
1.
4.
Fig. 3
Maintenance + Care
If your sprinkler begins to display irregular water pressure or is clogged due to dirt buildup, do the following
maintenance task.
1. Remove your hose from your sprinkler.
Notice a small inlet lter from the hose-end of the
oscillator, remove it and run under water to remove
the dirt (Fig. 4).
Fig. 4
inlet lter
9.
3.
Remove the cleaning pin from the opposite end of
the oscillator (Fig. 6).
Fig. 6
cleaning pin
Storage
Drain the sprinkler after use. DO NOT allow water to
freeze in the sprinkler (Fig. 8).
Fig. 8
2. To ush, connect the oscillator to a faucet.
Turn on the faucet and while the water continues
running, spin the tube gently back and forth for few
minutes (Fig. 5)
Fig. 5
hose-end
tube
4.
Use the provided cleaning pin to clear any clogs
from the spray nozzles while running water in
step 2 (Fig. 7).
Fig. 7
Fig. 7
cleaning pin
cleaning pin
spray nozzles
spray nozzles
Tips
1. Think of the best coverage design for the watering
without wasting water resources before placing the
sprinkler in the location where you want to water.
2. Drain any water from the sprinkler after use. This
will preserve the unit for longer lasting use.
3. Place the sprinkler in a dry warm storage area until
it is required.
4. Water only when necessary, preferably in the
morning as this will minimize water loss through
evaporation. To obtain deep root growth,water
deeply but do not water often. Watering every
second day will provide for better water coverage.
Using a timer can be helpful in reducing waste.
Watch water application to avoid water run-o .
