FMC230 First Start
Main Page
>
Advanced Trackers

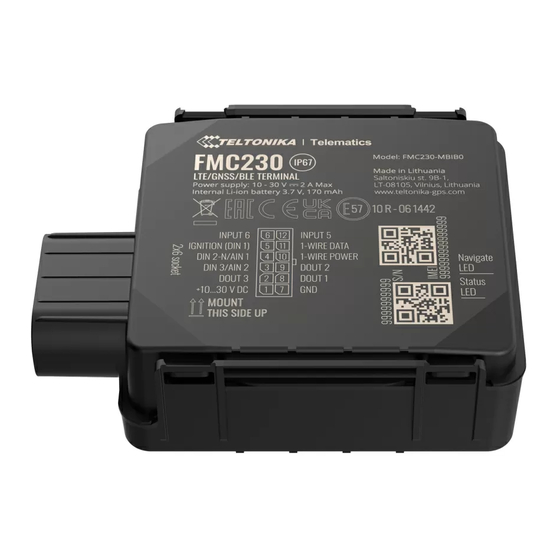

GNSS/GSM/Bluetooth tracker with internal GNSS/GSM antennas, internal battery and IP67
protection
Contents
1 How to insert Micro-SIM card and connect battery
How to insert Micro-SIM card and connect battery
1.You will receive your device partly closed.
2.Gently remove top and bottom covers.
3.Insert SIM card as shown with PIN request disabled or read our Wiki how to enter it later in
Teltonika Configurator. Make sure that SIM card cut-off corner is pointing outward from slot. SIM
slot 1 is closer to PCB, SIM slot 2 is the top one.
4.Connect battery as shown to device. Position the battery in place where it does not obstruct other
components.
5.After configuration, see "PC Connection (Windows)", attach device top and bottom cover back and
press them twice to the full closure.
6.Make sure that product casing is closed correctly.
This device has an IP67 casing with a two-phase closing, that ensures a reliable protection and ease of use. Please make sure
that product casing corner clips are fixed tightly and cable is connected to the device in order to maintain the degree of IP67
protection.
>
FMC230
> FMC230 First Start
Advertisement
Table of Contents
Related Manuals for Teltonika FMC230
Summary of Contents for Teltonika FMC230
- Page 1 3.Insert SIM card as shown with PIN request disabled or read our Wiki how to enter it later in Teltonika Configurator. Make sure that SIM card cut-off corner is pointing outward from slot. SIM slot 1 is closer to PCB, SIM slot 2 is the top one.
- Page 2 Battery placement after complete device disassembling Using double sided tape, stick internal battery to the bottom part of the device case. Battery should be glued approximately 15 millimeters from the bottom wall of the case. Picture on the left. Connect battery to the PCB. Gently place PCB into the bottom case.
- Page 3 Data for 1–Wire devices. INPUT 5 RX EXT (LVCAN - RX). PC Connection (Windows) Power-up FMC230 with DC voltage 10-30 V power supply using supplied power cable. LED’s should start blinking, see “FMC230 LED status”. Connect device to computer using Micro-USB cable or Bluetooth connection:...
- Page 4 Various and etc. FMC230 has one user editable profile, which can be loaded and saved to the device. After any modification of configuration the changes need to be saved to device using Save to device button. Main buttons offer following functionality: Load from device –...
- Page 5 If device has made a record it is sent to the server every 120 seconds After successful SMS configuration, FMC230 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika...
- Page 6 These points in the car are the battery terminals. Therefore, we recommend connecting the power of FMC230 (GND and POWER wires) directly to the battery terminals. Another valid option is to connect the wires to the main POWER cable inside the fuse box (if there is none, then to the power supply where the fuses of vehicle’s computer are), GND wire must be connected in a special point, designed to connect GND vehicle computer.
- Page 7 Device should be mounted with the sticker view to the open sky. FMC230 device should be mounted with the device logo view to the open sky for the best device performance with not less than ¾ of metal free area. FMC230 has IP67 protection class. Top performance is reached if mounted outside of the vehicle.
