BRUEL & KJAER 2513 Instruction Manual

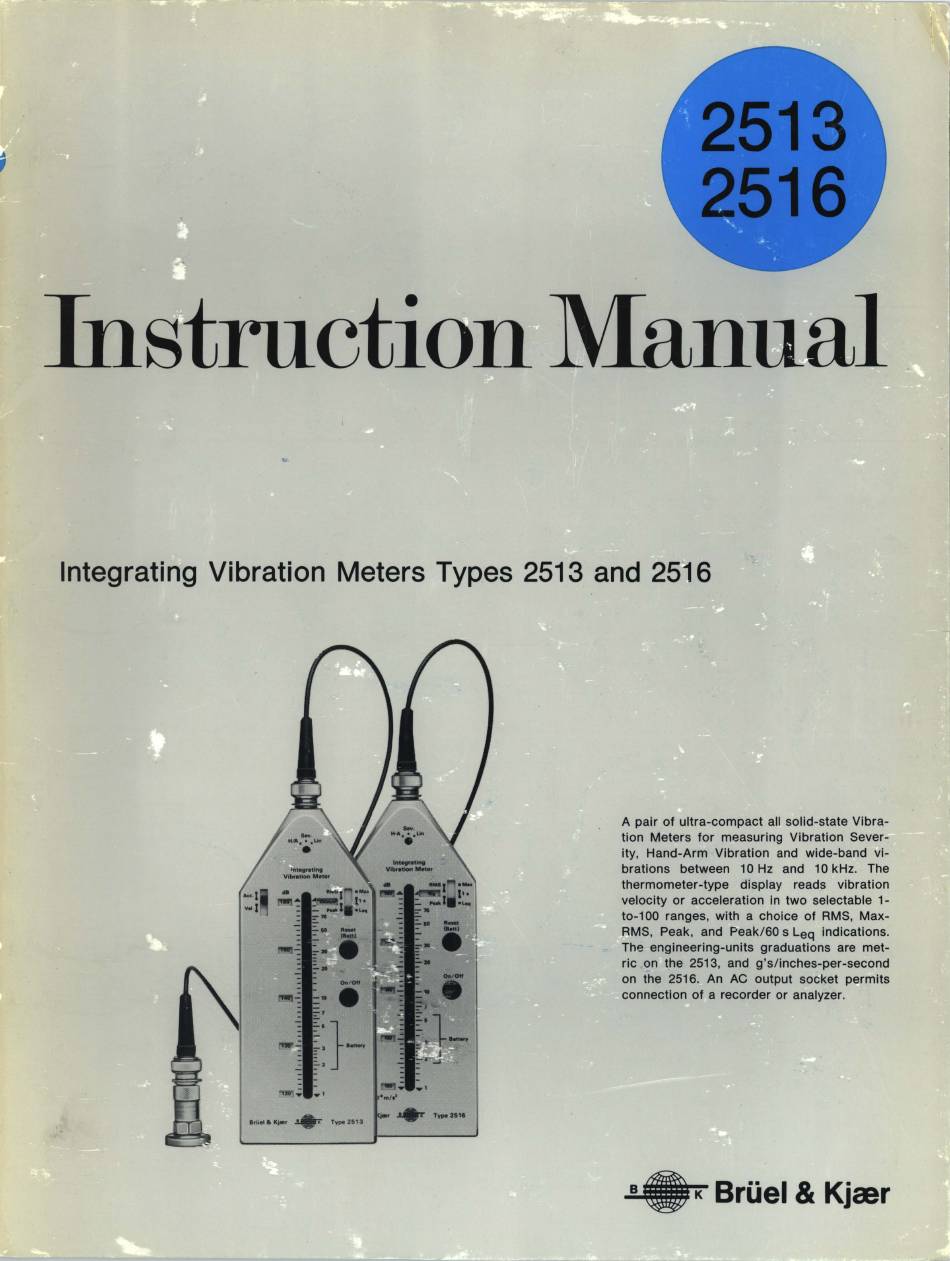

Instruction Manual
Integrating Vibration Meters Types 2513 and 2516
8n,ll&Kjoof' . . . Type2513
A pair of ultra-compact all solid-state Vibra-
tion Meters for measuring Vibration Sever-
ity, Hand-Arm Vibration and wide-band vi-
brations between 10 Hz and 10 kHz. The
thermometer-type display reads vibration
velocity or acceleration In two selectable 1-
to-100 ranges, with a choice of RMS, Max-
RMS, Peak, and Peak/60 s Leq indications.
The engineering-units graduations are met-
ric on the 2513, and g's/inches-per-second
on the 2516. An AC output socket permits
connection of a recorder or analyzer.
+
