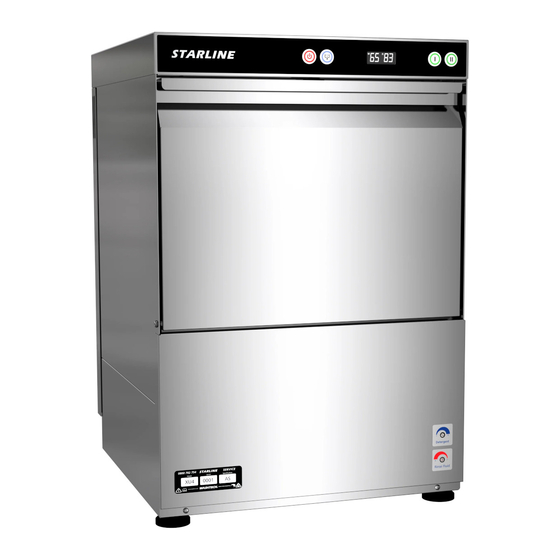

Washtech Starline XU Operator User Manual

Starline XU
OPERATOR USE

START

• Turn on at wall.
• Ensure the Wash / Drain Filter Basket (1) is in place and shut the door.
• Press the Power switch, the switch will glow red and the machine will fill automatically.

OPERATION

• Load rack into the machine and shut door.
• Press either Cycle 1 (1min) or Cycle 2 (2min) to start the dishwasher.
• Cycle buttons glow green while machine operates.
• When Cycle lights goes out, the cycle is complete.
NOTE: The machine may be started while the rinse water is being heated – the machine will continue to run the wash cycle until the
rinse water is up to temperature.

SHUT DOWN - EVERY NIGHT

• Open the door, press the Drain switch and leave the door open.
• Allow to drain for approximately 1 minute or until the tank is empty.
• Turn the Drain and then the Power switches off.
• Once the machine has cooled down, clean the wash tank, then remove and rinse Wash / Drain Filter Basket (1)
• Check and clear any waste from inside the drain sump.
• Replace Wash / Drain Filter back into machine.
CLEANING – AT LEAST ONCE A WEEK
• Remove, rinse and replace when machine has cooled down:
Wash / Drain Filter Basket
Wash / Rinse Arm Thumbscrew
Rinse Arms
Wash Arms
• Unscrew thumbscrew (3) to remove Wash Arms (4) and Rinse (3) Arms.
• Inspect Arm and ensure that all jets are clear.
• Use a small object (e.g. toothpick) where necessary to remove any blockages.

SUGGESTED BEST PRACTICE

Pre-rinse Scrape and/or rinse glasses in cool water.
Chemical Use a good quality non foaming commercial detergent and drying agent – do not use domestic detergents
which will cause the machine to foam.
Servicing Commercial dishwashers should be serviced at least every 6 months or 15,000 cycles.
Service
Parts
Starline XU Series-4
1
2
3
4
0800 STARLINE
09 829 0930
Oct-23
POWER DRAIN WASH
ON TEMPERATURE
RINSE CYCLE 1 CYCLE 2
TEMPERATURE
4
2
3
1
4
