- Page 1 Operator Manual...
-
Page 2: Table Of Contents

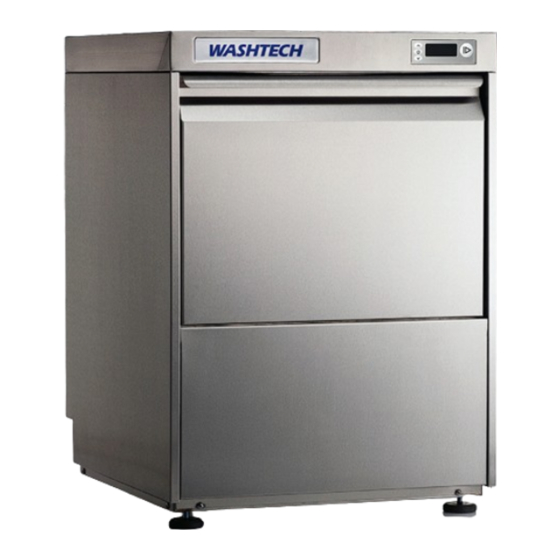

High performance passthrough Dishwasher - Operator Manual Service 1 800 622 216 Parts 1 800 337 963 Distributed in Australia by Moffat Pty Limited 740 Springvale Road, Mulgrave, Victoria Tel 09 9518 3888 Fax 03 9518 3818 2 UL - Operator Manual 141124... -
Page 3: Safety Instructions
High performance passthrough Dishwasher - Operator Manual Power Cord Replacement • If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard 3 UL - Operator Manual 141124... -
Page 4: Installation Checklist
If machine doesn’t fill after switching on power, check & ensure that hot water supply tap is open, water supply pressure is not below specification and DCV is correctly installed as per arrow on DCV body. 4 UL - Operator Manual 141124... -
Page 5: Installation Diagram
UL Installation Diagram UL-S INST 16-10-14 3C 5 UL - Operator Manual 141124... -
Page 6: Keypad Operation
Start key glows green when machine is CYCLE TIMES fully heated. For different cycles press the UP and DOWN arrows: Light, The UL has a 1, 2, 3 minute cycle. Medium, Heavy, Manual or Drain. Close door, press start key to start cycle. CHEMICAL... - Page 7 ocedures Care DAILY CLEANING It is essential that the machine is drained and cleaned at the end of by Food Hygiene Regulations. The each day. Drain the machine as per the shut down instructions. warm water with a Fisher Remove, clean and replace filters. Regularly check the wash and y scraping or dunking in water.
-
Page 8: Troubleshooting
Display Code Cause Remedy Fill Failure - wash tank Check flow rate of water supply Check water supply not full after fill timeout Drain Failure Drain hose jammed/blocked Check/unblock drain hose 8 UL - Operator Manual 141124... - Page 9 Pre-rinse, change wash water regularly Not drying Poor wash/rinse performance Refer above Low temperatures Check heating systems Drying agent not used Use quality drying agent/rinse fluid Foaming Wash Excessive Rinse Fluid Adjust Rinse Fluid Injector 9 UL - Operator Manual 141124...
-
Page 10: Wiring Diagram
UL Wiring Diagram UL(W) WIRING DIAGRAM 030314 06/11/14 1D IMPORTANT 10 UL - Operator Manual 141124... - Page 11 Accessories Code Description 600 70029 Cuprack 500mm 600 70028 Dishrack 500mm C660503 G Cutlery Container 11 UL - Operator Manual 141124...
- Page 12 ISO9001 quality management system, covering design, manufacture and final inspection, ensuring consistent high quality at all times. In line with policy to continually develop and improve its products, Washtech Ltd reserves the right to change specifications and design without prior notice.
