3.2.2. Connections for input and output

Front
Touch Display
Ethernet connection to host PC
To
Capillary Tray Gate

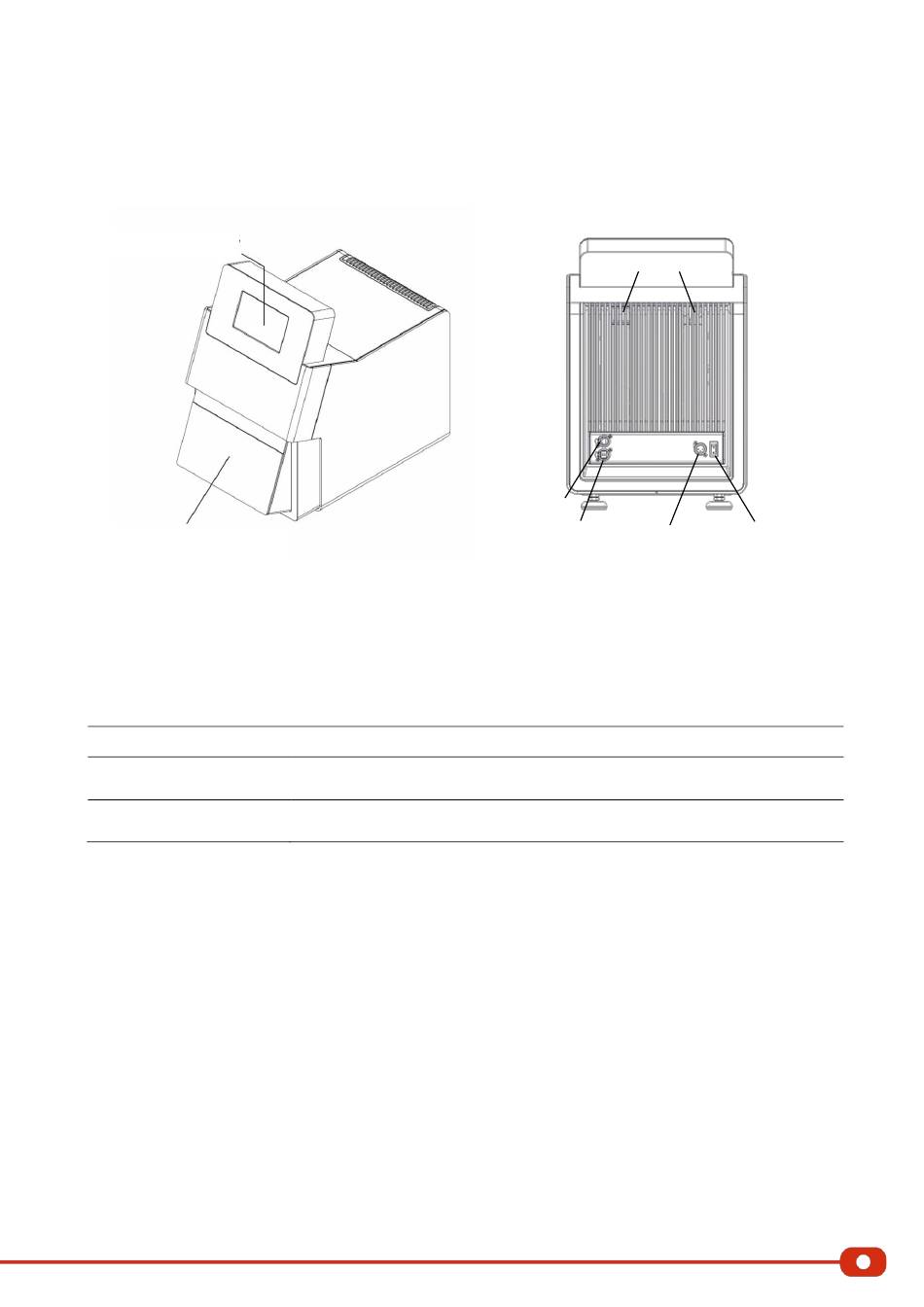

Figure 2: Connections on the Prometheus Panta device.
Type
Ethernet
DC Input
On/Off Button
All ingoing and outgoing connections can be found on the rear panel of the instrument.
Ethernet (PC)
Function
To connect the system to the Control PC/LAN via Ethernet cable
To connect the system to electrical power
Turning the switch to position "I" switches on the instrument.
Back
Cooling Fans
Ethernet (LAN) DC Input
On/Off Button
