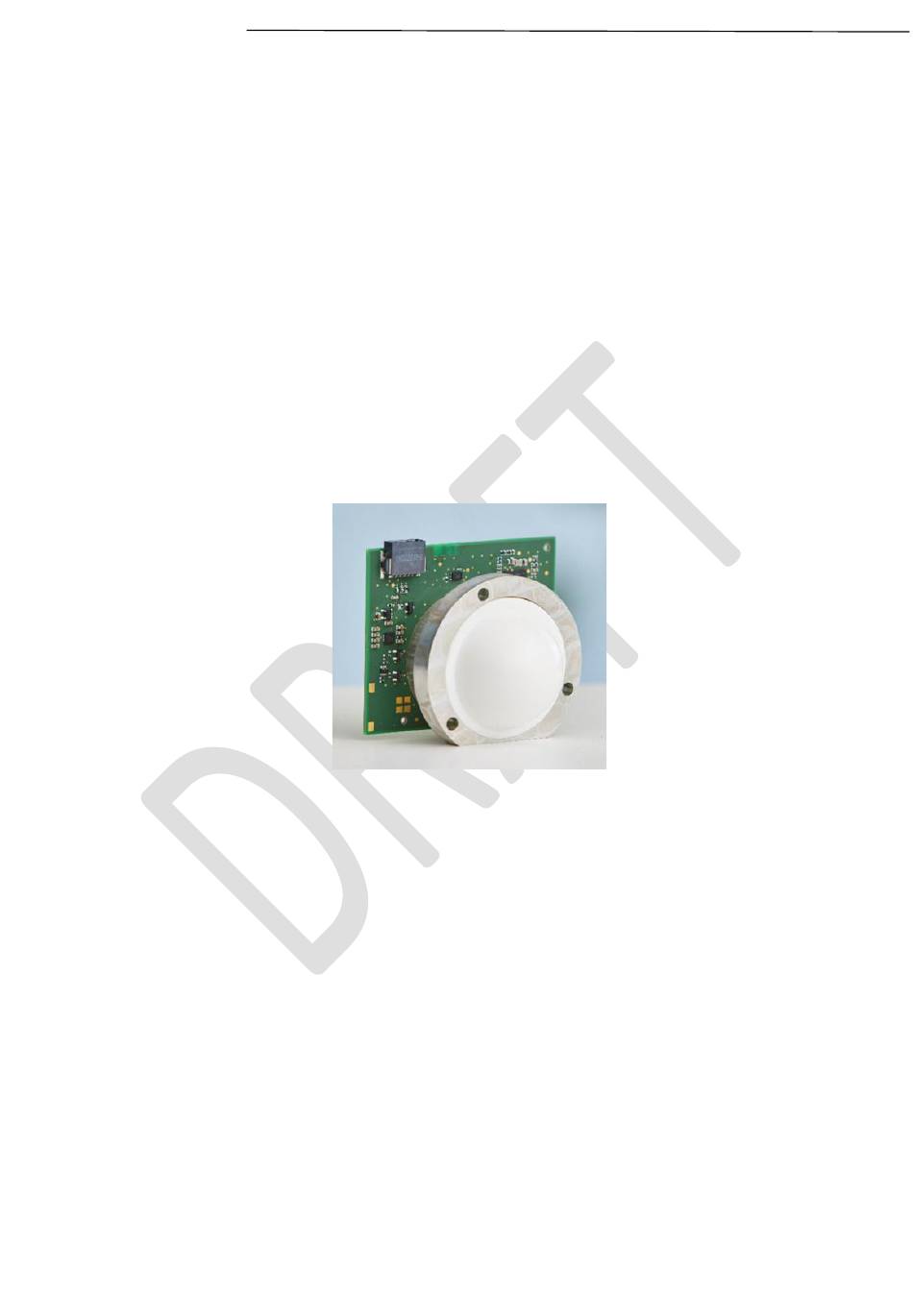

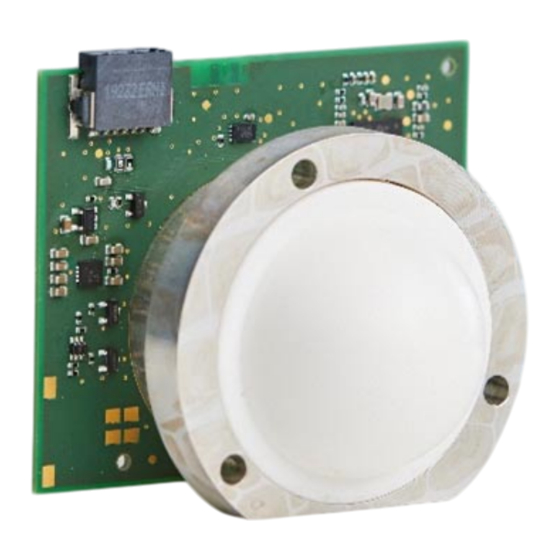

- Page 1 Products Solutions Services TI01709O/00/DE/01.23-00 71609654 2023-05-09 Technical Information Radar sensor USR30 Free space radar Sensor unit for distance measurement and level monitoring of liquids and bulk solids...
- Page 2 Application Your benefits • Continuous distance measurement and level monitoring • Reliable 80 GHz radar sensor • Precise distance measurement due to strong focus, even in of liquids and bulk solids • Maximum measuring range: 35 m (115 ft)) rough environments •...
-
Page 3: Table Of Contents
Radarsensor USR30 FCC ..................... 11 Table of contents About this document ..........3 Document function ..............3 Symbols used ................3 Function and system design ........4 Measuring principle ..............4 Input ................. 4 Measured variable ..............4 Measuring range ............... 4 Operating frequency .............. - Page 4 Industry Canada ................. 11 Supplementary documentation ..........12 Other standards and guidelines ..........12 Disposal ..................12 Contact addresses ..............12 Explanations and supplementary documentation . .. 12 Endress+Hauser...
-
Page 5: About This Document
Radarsensor USR30 About this document This document contains all the technical data for the device and provides an overview of the Document function device versions that can be ordered. Symbols used Safety symbols Symbol Meaning NOTICE! NOTICE This symbol contains information on procedures and other facts which do not result in personal injury. - Page 6 Endress+Hauser...
-
Page 7: Function And System Design
Radarsensor USR30 Function and system design The Micropilot is a measuring system, operating based on the time-of-flight method (ToF). It measures Measuring principle the distance from the reference point to the product surface. The radar signals based on the "Frequency Modulated Continious Wave" (FMCW) principle are emitted by an antenna, reflected off the product surface and received again by the radar system. - Page 8 Endress+Hauser...
-
Page 9: Operating Frequency
VCM (vinyl chloride monomer) To measure absorbing gases, either use a guided radar, measuring devices with another measuring frequency or another measuring principle. If measurements must be performed in one of these media, please contact Endress+Hauser. 80 GHz Operating frequency The operating frequency is for measurement purposes only. - Page 10 Endress+Hauser...
-
Page 11: Output
Digital interface: 1.7 to 3.6 VDC ~32 mW static Power consumption ~1000 mW peak for < 10 ms during measurement The connection of the sensor is described in the documentation "USR30 Customer Manual" Connection of the sensor (see Supplementary documentation ä... - Page 12 Endress+Hauser...
-
Page 13: Performance Characteristics
Radarsensor USR30 Performance characteristics • Temperaturr = +24 C (+75 F) ±5 C (±9 F) Reference operating condi- • Pressure = 960 mbar abs. (14 psi) ±100 mbar (±1.45 psi) tions • Humidity = 60 % ± 5 % • Reflector: metal plate with a diameter ≥ 1 m (40 in) •... -
Page 14: Beam Angle
Radarsensor USR30 Maximum nozzle height and distance to wall A0046856 Diameter D [mm] Measuring distance [mm] Radiation width [mm] [mm] 1000 2000 5000 1020 10000 1399 The beam angle is 8° 8° Beam angle Environment –40 to +85 C (–40 to 185 F) Ambient temperature –40 to +85 C (–40 to +185 F) - Page 15 Endress+Hauser...
-
Page 16: Mechanical Construction
Radarsensor USR30 Process • Measurement directly through the tank only possible for electrically non-conductive tank walls with low dielectric constant and small wall thickness No contact is made with the process medium. Mechanical construction Dimensions Sensor unit 211067982 * Unit of measurement mm NOTICE The recommended geometry of the antenna aperture to limit the radiation angle to 8°... -
Page 17: Integration Into An Overall System
Endress+Hauser Integration into an overall system It is not allowed to modify the sensor module in any way or form. The sensor must be used with the antenna provided. Characteristics • Simple mechanical/electrical integration into an end device • Configuration and control via widely used digital interface (UART) with defined command set (see Customer Manual) •... - Page 18 • Is the sensor undamaged (visual inspection)? • Is the sensor properly mounted and fixed in position? • Is the antenna and housing properly sealed? • Is the sensor signal cone unobstructed? • Is the electrical connector properly fitted and locked? •...
-
Page 19: Certificates And Approvals
Certificates and approvals NOTICE The USR30 radar sensor is a sensor unit that is installed as a component in the customer's end system. It is therefore the customer's responsibility to obtain the relevant approvals for his end device / measuring system. - Page 20 Radarsensor USR30 Country Name of the station Latitude Longitude Great Britain Cambridge ° 09' 5 9" North ° 02' 2 0" East Damhall ° 09' 2 2" North ° 32' 0 3" West Jodrell Bank ° 14' 1 0" North °...
- Page 21 Compliance procedure The final host device, into which this modular approved transmitter is finally integrated has to of host device: comply itself to the appropriate technical requirements (typically §15.107 AC Powerline Conducted Limits, §15.109 Radiated Emission Limits for an Unintentional Radiator) and apply applicable FCC Equipment Authorization Procedures (SDoC or Certification).
- Page 22 Endress+Hauser...
- Page 23 WEEE as unsorted municipal waste. Such products may not be disposed of as unsorted municipal waste and can be returned to Endress+Hauser for disposal under the conditions stipulated in the General Terms and Conditions or as individually agreed.
- Page 24 Radarsensor USR30...
- Page 25 Endress+Hauser...
- Page 26 Radarsensor USR30...
- Page 27 Endress+Hauser...
- Page 28 Radarsensor USR30...
- Page 29 Endress+Hauser...
- Page 30 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 7 1 6 0 9 6 5 4 436431...
