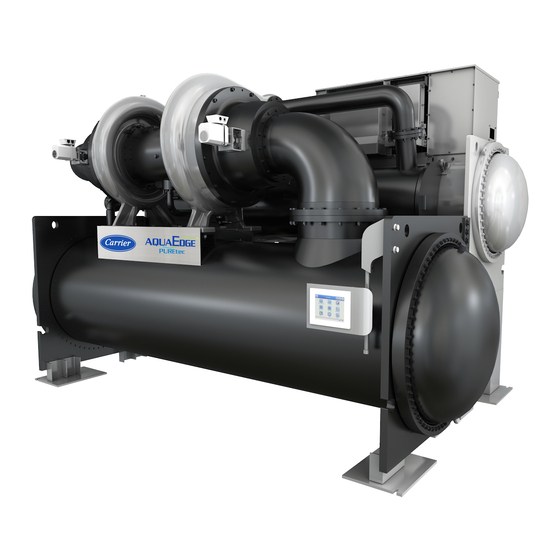

Two-stage high-efficiency semi-hermetic centrifugal liquid chillers with pic6 controls
Hide thumbs Also See for AquaEdge 19DV:
Table of Contents

Advertisement

Quick Links

Controls Operation and Troubleshooting
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . . 1
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Abbreviations Used in This Manual . . . . . . . . . . . . . . 2
HARDWARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Main Control Board . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SIOB (Starfire Input/Output Board) . . . . . . . . . . . . . . 2
IOB (Input/Output Board) . . . . . . . . . . . . . . . . . . . . . . 2
Communication Cables . . . . . . . . . . . . . . . . . . . . . . . 11
Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Controls Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
USER INTERFACE . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Web Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
General Interface Features . . . . . . . . . . . . . . . . . . . . 12
CONTROL OPERATION . . . . . . . . . . . . . . . . . . . . . . . 16
Start-Stop Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Compressor Run Status . . . . . . . . . . . . . . . . . . . . . . 16
Chiller Start-Up Sequence . . . . . . . . . . . . . . . . . . . . . 16
Chiller Shutdown Sequence . . . . . . . . . . . . . . . . . . . 17
Refrigerant Lubrication Control . . . . . . . . . . . . . . . . 17
Control Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Displaying Data Trends . . . . . . . . . . . . . . . . . . . . . . . 26
Hydraulic Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Alarm/Alert Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Displaying Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Resetting Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Event States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
CONTROLLER SETTINGS . . . . . . . . . . . . . . . . . . . . . 42
Unit IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
System Configuration . . . . . . . . . . . . . . . . . . . . . . . . 43
COMMUNICATION PROBLEMS . . . . . . . . . . . . . . . . 43
Hardware Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Web Interface Problems . . . . . . . . . . . . . . . . . . . . . . 43
Ethernet/IP Connection Problems . . . . . . . . . . . . . . 44
STRUCTURE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
APPENDIX B - IOB AND HMI DIP SWITCH
SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
STATUS INDICATORS . . . . . . . . . . . . . . . . . . . . . . 83

SAFETY CONSIDERATIONS

Installing, starting up, and servicing this equipment can be haz-
ardous due to system pressures, electrical components, and
equipment location (roof, elevated structures, etc.). Only trained,
qualified installers and service mechanics should install, start up,
and service this equipment. When working on this equipment,
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Catalog No. 04-53190083-01
Semi-Hermetic Centrifugal Liquid Chillers
Printed in U.S.A.
Form 19DV-CLT-5T
19DV Two-Stage High-Efficiency
observe precautions in the literature, and on tags, stickers, and
labels attached to the equipment, and any other safety precau-
tions that apply. Follow all safety codes. Wear safety glasses and
work gloves. Use care in handling, rigging, and setting this
equipment, and in handling all electrical components.
ELECTRICAL SHOCK HAZARD
Failure to follow this warning will result in personal injury
or death.
Before performing service or maintenance operations on
unit, turn off main power switch to unit and install lock(s)
and lockout tag(s). Ensure electrical service to rooftop unit
agrees with voltage and amperage listed on the unit rating
plate. Unit may have more than one power switch.
WARNING
Electrical currents cause components to get hot either tempo-
rarily or permanently and may cause burns. Handle power
cable, electrical cables and conduits, terminal box covers,
and motor frames with great care.
CAUTION
This unit uses a microprocessor control system. Do not
short or jumper between terminations on circuit boards or
modules; control or board failure may result.
Be aware of electrostatic discharge (static electricity) when
handling or making contact with circuit boards or module con-
nections. Always touch a chassis (grounded) part to dissipate
body electrostatic charge before working inside control center.
Use extreme care when handling tools near boards and
when connecting or disconnecting terminal plugs. Circuit
boards can easily be damaged. Always hold boards by the
edges and avoid touching components and connections.
This equipment uses, and can radiate, radio frequency energy.
If not installed and used in accordance with the instruction
manual, it may cause interference to radio communications.
The PIC6 control boards have been tested and found to com-
ply with the limits for a Class A computing device pursuant to
International Standard in North America EN 61000-2/3 which
are designed to provide reasonable protection against such in-
terference when operated in a commercial environment. Oper-
ation of this equipment in a residential area is likely to cause
interference, in which case the user, at his own expense, will
be required to take whatever measures may be required to cor-
rect the interference.
Always store and transport replacement or defective boards
in anti-static shipping bag.
Pg 1
AquaEdge
with PIC6 Controls
DANGER
5-21
Replaces: 19DV-CLT-4T
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AquaEdge 19DV and is the answer not in the manual?

Questions and answers

Related Manuals for Carrier AquaEdge 19DV

Summary of Contents for Carrier AquaEdge 19DV

  • Page 1: Table Of Contents

    AquaEdge ® 19DV Two-Stage High-Efficiency Semi-Hermetic Centrifugal Liquid Chillers with PIC6 Controls Controls Operation and Troubleshooting observe precautions in the literature, and on tags, stickers, and SAFETY CONSIDERATIONS ....1 labels attached to the equipment, and any other safety precau- GENERAL .

  • Page 2: General

    J6 — LEN CONNECTOR Chiller Control Module — J7 — CCN CONNECTOR CCN mode Operating mode: CCN — Carrier Comfort Network ® — J8 — RS485, BACnet MS/TP OR Modbus RTU DHCP Dynamic Host Configuration Protocol — J9 — RNET (future) Discharge Superheat —...
  • Page 3 19DV IOB COMPONENTS AND WIRING Table 1 — IOB Configuration The components listed in Tables 2-5 are available at the user’s ANALOG INPUT ANALOG OUTPUT terminal block on the IOB. Some are available only if the unit Disable Disable is operating in Remote mode. Table 6 lists SIOB inputs and out- 0 to 5 VDC 4 to 20 mA puts.
  • Page 4 Table 4 — 19DV IOB3 Connections DESCRIPTION CHANNEL TERMINAL TYPE OPTIONAL 1st Stage Bearing Temperature J16-1,5 5 k — 2nd Stage Bearing Temperature J16-2,6 5 k — Guide Vane 2 Actual Position J16-4,8 4 to 20 mA — Remote Reset Temperature J15-6,12 (5TB-27,28) 5 k...
  • Page 5 LEGEND FOR FIG. 2-6 NOTE: A suitable 24 VAC relay is Carrier part number MOLEX CONNECTOR 19XV05005503. Carrier recommends using a relay with ASSEMBLY PART NO. a contact rating of 10 amp sealed RMS or greater. (SHORT WIRE INCLUDED PINS...
  • Page 6 Fig. 3 — IOB2 and IOB3...
  • Page 7 Fig. 4 — IOB 4...
  • Page 8 Fig. 5 — 19DV Control Panel Abbreviations...
  • Page 9 NOTE: Jumper wires installed only on 60 Hz units. When jumper wires are installed, the power wiring from the VFD to PP1 and PP2 is not installed. FROM Fig. 6 — 19DV Control Wiring...
  • Page 10 7TB IN HMI PANEL FOR CUSTOMER COMMUNICATION CCN CONNECTION A (+) a19-2251 C (G) B (-) Fig. 7 — HMI Panel REFRIG PUMP POWER CTL POWER ECONOMIZER VENT POWER GUIDE VANE 1 PURGE POWER GUIDE VANE 2 COMMUNICATION - FREE COOLING VFD/CONTROL PANEL ENVELOPE CONTROL (HGBP) REFRIGERANT PUMP POWER...

  • Page 11: Communication Cables

    Table 8 — Temperature Sensors EVAPORATOR/CONDENSER WATER PUMP The controller regulates the evaporator/condenser water pump. TEMPERATURE SENSOR PURPOSE Note that Carrier requires full or parallel pump control. Entering Chilled Water Measures entering evaporator water temperature Leaving Chilled Water Measures leaving evaporator water temperature...

  • Page 12: General Interface Features

    of the user. Connection is from a personal computer using a If the interface is not used for a long period, it goes into screen- Java-enabled web browser. See “CONTROLLER SETTINGS” saver mode and displays a black screen. However, the control on page 42 for configuration instructions.
  • Page 13 The default User password is 1111. • Service access can be granted through Carrier Smart Ser- vice by an administrator. Password is good for 7 days and gives access to all Service tables.
  • Page 14 See Fig. 19. (Certain configuration settings are available only for Service or Factory access levels.) Refer to Appendix A, page 54, for more information about Configuration options. Fig. 16 — User Login Screen — Password Menu Main Menu Screen Fig. 19 — General Configuration Screen To access the Main Menu screen, press the Main Menu icon After changing a value, press Return.
  • Page 15 Status Display Screens Figure 22 shows the system status overview (home) screen. Press any component on the screen to see the status of that component. Press the arrows at the bottom right corner to navi- gate through the component status displays. Figures 23-29 show the component status displays.

  • Page 16: Control Operation

    Progress is shown on the Startup Sequence screen (see Fig. 30). This screen can be accessed by touching the mode title (top blue bar) of the home screen. Table 12 lists pre-start alert and alarm conditions. The compressor RUN STATUS parameter on the default screen line now reads PRESTART.

  • Page 17: Chiller Shutdown Sequence

    Table 12 — Pre-Start Alerts and Alarms PRE-START ALERT CONDITION STATE NO. ALARM OR ALERT STARTS IN 12 HOURS >= 8 Alert CONDENSER PRESSURE >= COND PRESS OVERRIDE – 20 psi Alert Number of recycle restart in the last 4 hours is greater than 5 Alert COMP BEARING TEMP >= COMP BEARING ALERT –...

  • Page 18: Control Points

    Table 13 — Lube Assembly Control Valve (CV) CONTROL VALVE STATUS DESCRIPTION EVAPORATOR CONDENSER CHILLER OFF Close Close Chiller is off - a start is to be initiated to change state. Refrigerant pump turns on if pump differential pressure is less than 5 psig - if differential PRE-START Close Open...
  • Page 19 VFD % SPEED MAX. START VFD AT START-UP SPEED, STARTUP: MODULATE GUIDE VANES VFD TO START-UP SPEED, GUIDE VANES CLOSED MIN. GUIDE VANES AT MAX. MODULATE VFD GUIDE VANES TRAVEL LIMIT GUIDE VANES % POSITION Fig. 31 — Guide Vane Position and VFD Speed From the compressor relay closed point to the end of ramp Temperature Ramp Loading loading, the VFD TARGET SPEED is the configured VFD...
  • Page 20 SURGE CORRECTION CONTROL The EC/HGBP control valve is a modulating type controlled by a 4 to 20 mA signal. There are two stages for surge correction: envelope control Envelope/hot gas bypass operation has three different modes (surge prevention) and surge protection. when installed (hgbp_opt >...
  • Page 21 Table 15 — Override Parameters DEFAULT VALUE/ FIRST STAGE SECOND STAGE OVERRIDE OVERRIDE CONDITION OVERRIDE PARAMETER CONFIGURABLE CAPACITY INHIBIT CAPACITY DECREASE TERMINATION RANGE High condenser pressure over- CONDENSER > COND PRESS 55 psig/20 to 56 psig > COND PRESS OVER- <...
  • Page 22 All of these can be viewed on the RUN TIMES screen. Both On- PROTECTIVE LIMIT - CONDENSER FREEZE). The fault time counters roll over to 0 at 500,000 hours. Manual changes to state will clear and the pump will turn off when the condenser SERVICE ONTIME from the screen are permitted at any time.
  • Page 23 To enable this function, the AUTO RESTART OPTION point The black box file can be uploaded with the Carrier Service in the CONF_OPT table should be set to ENABLE. Tool. Once the upload is done, the original files are automati- cally deleted.
  • Page 24 2. Each transducer is supplied with 5 vdc from the IOB. Cal- ibration is done by selecting the appropriate Pressure Sen- sor option on the Pressure Sensor Calib screen. The screen for the selected option is displayed. Figure 34 shows the Evap Pressure Sensor screen (PRSCAL01 as an example).
  • Page 25 The two chillers can be configured to be in parallel or in series. When they are in series mode, the master chiller’s evaporator must be downstream. The lead chiller shall always be started first, and the lag chiller shall be maintained at zero percent ca- pacity.

  • Page 26: Displaying Data Trends

    The liquid bypass actuator will return to normal (closed) when the Hydraulic Option Discharge Superheat is less than Software Required Discharge Su- WATER FLOW MEASUREMENT perheat plus (Economizer Liquid Bypass Valve Off Discharge). The PIC6 controller provides the function of measuring water Figure 43 shows the Liquid Bypass screen.

  • Page 27: Diagnostics And Troubleshooting

    Free Cooling DIAGNOSTICS AND TROUBLESHOOTING If Option 2  Free Cooling is enabled, any one of the follow- The 19DV PIC6 control system has many fault tracing aid ing will make the chiller start free cooling. functions. The local interface and its various menus give ac- •...
  • Page 28 Table 16 — PIC6 Alert Codes* ALERT DESCRIPTION OF ACTION TAKEN BY THE CRITERION FOR TRIP ALERT RESET METHOD POSSIBLE CAUSE CODE ALERT TEXT CONTROL Check STARTS IN 12 HOURS in Run times screen. Enable the “Enable Prestart Alert - Starts Limit Tested only on prestart run status, if Automatic when STARTS Excessive Starts”...
  • Page 29 Table 16 — PIC6 Alert Codes* (cont) ALERT DESCRIPTION OF ACTION TAKEN BY THE CRITERION FOR TRIP ALERT RESET METHOD POSSIBLE CAUSE CODE ALERT TEXT CONTROL LEAVING CONDENSER WATER Tested when the compressor is on all temperature sensor reading is out of of the run status and chiller is in cooling Automatic when the Sensor Alert - Leaving...
  • Page 30 Table 16 — PIC6 Alert Codes* (cont) ALERT DESCRIPTION OF ACTION TAKEN BY THE CRITERION FOR TRIP ALERT RESET METHOD POSSIBLE CAUSE CODE ALERT TEXT CONTROL Automatic when the Check for excess refrigerant charge. Process Alert - Low If (DSH < DSH REQUIRED - 3.0) OR Alt-150 situation comes back to Alert Relay is ON...
  • Page 31 Table 16 — PIC6 Alert Codes* (cont) ALERT DESCRIPTION OF ACTION TAKEN BY THE CRITERION FOR TRIP ALERT RESET METHOD POSSIBLE CAUSE CODE ALERT TEXT CONTROL Compressor is running but not in ramp loading status Condenser approach is greater than Process Alert –...
  • Page 32 Table 16 — PIC6 Alert Codes* (cont) ALERT DESCRIPTION OF ACTION TAKEN BY THE CRITERION FOR TRIP ALERT RESET METHOD POSSIBLE CAUSE CODE ALERT TEXT CONTROL Reset the AHF - if fault persists, please Alt-190 AHF Fault Receive a fault state from AHF Automatic Alert Relay is ON determine the fault state and contact...
  • Page 33 Table 17 — PIC6 Alarm Codes* ALARM DESCRIPTION OF ALARM RESET ACTION TAKEN BY THE CRITERION FOR TRIP POSSIBLE CAUSE CODE ALARM TEXT METHOD CONTROL Tested when the compressor is on Check sensor resistance. Check for whatever the run status and the Automatic when the proper wiring between LEAVING Sensor Fault - Leaving...
  • Page 34 Table 17 — PIC6 Alarm Codes* (cont) ALARM DESCRIPTION OF ALARM RESET ACTION TAKEN BY THE CRITERION FOR TRIP POSSIBLE CAUSE CODE ALARM TEXT METHOD CONTROL Tested when the compressor is whatever the run status and the communication Check Evaporator pressure transducer between Main board and IOBs is ok.
  • Page 35 Table 17 — PIC6 Alarm Codes* (cont) ALARM DESCRIPTION OF ALARM RESET ACTION TAKEN BY THE CRITERION FOR TRIP POSSIBLE CAUSE CODE ALARM TEXT METHOD CONTROL Tested only on prestart condition, if Evaporator pressure sensor and Check Evaporator Pressure, Evap Sat temperature sensor are in the range Refrig Temp, and Evap Refrig Liquid Temp.
  • Page 36 Table 17 — PIC6 Alarm Codes* (cont) ALARM DESCRIPTION OF ALARM RESET ACTION TAKEN BY THE CRITERION FOR TRIP POSSIBLE CAUSE CODE ALARM TEXT METHOD CONTROL Check for closed compressor discharge isolation valve. Check if chiller was operating in surge conditions.
  • Page 37 Unit shuts down. Alarm Reset shall be automatic when Manual Config Conflict maitanance table for Carrier LV32 VFD relay turns on. communication comes back to normal (DCIB board) configurations Alm-279 Protective Limit - VFD The VFD configuration value on PIC6 Unit shuts down.
  • Page 38 LV32 VFD lost for 10 consecutive Automatic when Alm-308 Loss Communication Unit shuts down. Alarm Bus installation fault or defective slave seconds communication comes With VFD relay turns on. board back to normal Carrier LV32 VFD (address 180) is not searched }...
  • Page 39 With VFD Gateway consecutive seconds communication comes relay turns on. board (LEN) back to normal Carrier Modbus Gateway (address 181) is not searched } If (vfd_opt = 3/4/5/6/8) AND {Modbus side Communication between Modbus Automatic when Loss Communication Unit shuts down. Alarm...
  • Page 40 Alm-432 grnd_flt = TRUE Manual Fault relay turns on. shorts. Disconnect motor from VFD and megger motor. Call Carrier Service. VFD Fault - Line Phase Unit shuts down. Alarm Reverse connections of any two line Alm-433 ph_rev = TRUE...
  • Page 41 Table 17 — PIC6 Alarm Codes* (cont) ALARM DESCRIPTION OF ALARM RESET ACTION TAKEN BY THE CRITERION FOR TRIP POSSIBLE CAUSE CODE ALARM TEXT METHOD CONTROL VFD Fault - Main Power Unit shuts down. Alarm Alm-454 Manual Check the main power to VFD Failure relay turns on.

  • Page 42: Event States

    Event States Table 18 — Event States (cont) An event state is a specific set of conditions that the controller EVENT NO. DESCRIPTION may encounter when controlling the chiller. Event states are re- Running - Damper Valve Forced peatable and predictable, and represent known states of the Operation - Oil EXV Forced control.

  • Page 43: System Configuration

    TOUCH SCREEN CALIBRATION Depending on the user and the position of the panel, it may be necessary to calibrate the touch screen if the cursor does not move precisely with the user’s touch. When the user presses and holds an inactive part of the screen for 10 seconds, the screen will turn black with white text displaying “Calibrating Touch Screen”...

  • Page 44: Ethernet/Ip Connection Problems

    In the example shown in Fig. 51, the PC receives four negative Ethernet/IP Connection Problems responses (request timed out). Use the following methods to troubleshoot: UNIT IS POINT-TO-POINT CONNECTED TO A PC Ensure controller is powered on prior to configuration and check Ethernet connection and PC Network Interface Card (NIC).
  • Page 45 a19-2175 a19-2176 Fig. 54 — Java Control Panel Fig. 53 — Proxy Settings If a configuration script is used, it is not possible to add the unit IP address to the exceptions list. In this case, see the section Java Application Configuration below. If the response to the “ping”...

  • Page 46: Appendix A - Pic6 Screen And Table Structure

    APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE Main Menu Login / Logout Screen Choose Operating Mode Alarm Menu Home Synoptic Confirm Stop Main Menu Alarm Menu General Parameters Temperatures Pressures Inputs Status Reset Alarms 19DV Outputs Status Outputs Status Hydraulic Status Run Times Current Alarms...
  • Page 47 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Main Menu Description PAGE ICON DISPLAYED TEXT* ACCESS ASSOCIATED TABLE General Parameters GENUNIT Temperatures TEMP Pressures PRESSURE Inputs Status INPUTS Outputs Status OUTPUTS 19DV Outputs Status DV_OUT Hydraulic Status HYDRLIC Run Times RUNTIME Modes MODES...
  • Page 48 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) NOTE: This software is shared between multiple product families and therefore not all points indicated in the tables are applicable to 19DV or 19XR as configured. For instance 19DV is not an oil lu- bricated machine, so any reference to oil in the software tables would not be applicable for 19DV.
  • Page 49 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Temperatures CCN TABLE NAME: TEMP PIC6 PATH: Main Menu  Temperatures DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE* Entering Chilled Water –40.0 to 245 °F Leaving Chilled Water –40.0 to 245 °F Entering Condenser Water...
  • Page 50 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Inputs Status CCN TABLE NAME: INPUTS PIC6 PATH: Main Menu  Inputs Status DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE* EC Valve Status 0=Closed, 1=Interim, HGBP_ACT 0 to 3 2=Opened, 3=Failure High Pressure Switch HP_SW...
  • Page 51 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Outputs Status CCN TABLE NAME: OUTPUTS PIC6 PATH: Main Menu  Outputs Status DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE* Guide Vane1 Output GV1_OUT 0 to 20 Chiller Status (Analog) CHST_OUT 4 to 20 Chiller Status (Discrete)
  • Page 52 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Hydraulic Status CCN TABLE NAME: HYDRLIC PIC6 PATH: Main Menu  Hydraulic Status DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE* Condenser Water Pump CDWP OFF/ON Condenser Water Flow CDW_FLOW NO/YES Cond Water Flow Value...
  • Page 53 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Modes CCN TABLE NAME: MODES PIC6 PATH: Main Menu  Modes DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE* Normal Shutdown shut_nor NO/YES Recycle Shutdown shut_rcy NO/YES Alarm Shutdown shut_alm NO/YES Recycle Startup...
  • Page 54 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Configuration Menu for 19DV Navigation: MAIN MENU  CONFIGURATION MENU ICON DISPLAYED TEXT ACCESS ASSOCIATED TABLE PAGE NO. Factory Parameters Factory FACTORY Service Parameters Service SERVICE1 Surge Correction Service CFGSURGE Protective Limit Service CFGLIMIT Lab Test Forced...
  • Page 55 0 to 3 3=19XRF VFD/Starter Option 0 = Starter with ISM, 1 = FS VFD with ISM, 2=Carrier 32VS VFD, 3=Rockwell LF2 VFD, vfd_opt 0 to 8 4=EATON VFD, 5=Rockwell Std Tier VFD, 7= Danfoss VFD, 8 = Benshaw Starter...
  • Page 56 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Surge Correction CCN TABLE NAME: CFGSURGE PIC6 PATH: Main Menu  Configuration Menu  Surge Correction DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE* Surge Line Configuration sgl_cfg 0 to 1 0=PR, 1=Delta T IGV1 Pos Configuration gv1c_sel...
  • Page 57 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Option CCN TABLE NAME: CONF_OPT PIC6 PATH: Main Menu  Configuration Menu  Option LINE PIC6 DESCRIPTION CCN NAME RANGE DEFAULT VALUE* UNIT READ/WRITE Auto Restart Option astart DISABLE/ENABLE DISABLE Swift Restart Option swistart DISABLE/ENABLE DISABLE...
  • Page 58 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) VFD Parameters CCN TABLE NAME: CFGUMVFD PIC6 PATH: Main Menu  Configuration Menu  VFD Parameters DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE* Compressor Speed 100% comp_hz 47 to 110 Rated Line Voltage rlv_i 200-13800...
  • Page 59 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) 19DV CCN TABLE NAME: CFG_19DV PIC6 PATH: Main Menu  Configuration Menu  19DV DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE* Pressure Sensor Option (0=Tianmo, sen_opt 0 to 2 1=Texas, 2=Sensata) Purge System Option pg_opt...
  • Page 60 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Master Slave CCN TABLE NAME: CONF_MS PIC6 PATH: Main Menu  Configuration Menu  Master Slave DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE* Slave Address slv_addr 1 to 236 Master/Slave Select msl_sel 0 to 2...
  • Page 61 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Schedule Menu Navigation: MAIN MENU  CONFIGURATION MENU  SCHEDULE MENU ICON DISPLAYED TEXT ACCESS ASSOCIATED TABLE Local Schedule User Ice Build Schedule User Network Schedule User Fig. B — Schedule Menu and Submenus...
  • Page 62 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Holiday Menu Navigation: MAIN MENU  CONFIGURATION MENU  HOLIDAY MENU The Holiday Menu has 16 submenus (HOLDY-01 to HOLDY_16), so it is possible to set 16 different holiday peri- ods. For more information about holiday periods, see the Time Schedule section on page 23.
  • Page 63 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) BMS Protocol CCN TABLE NAME: CONNECT PIC6 PATH: Main Menu  Configuration Menu  BMS Protocol DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE* Port J8 Option 0=None, 1=BACnet MS/TP, j8_opt 0 to 2 2=Modbus RTU...
  • Page 64 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Date/Time Configuration Navigation: MAIN MENU  SYSTEM CONFIGURATION MENU DATE/TIME CONFIGURATION Fig. E — Date/Time Configuration Menu Quick Test Menu Navigation: MAIN MENU  QUICK TEST Quick Test CCN TABLE NAME: QCK_TEST PIC6 PATH: Main Menu ...
  • Page 65 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Quick Test Menu Navigation: MAIN MENU  19DV QUICK TEST 19DV Quick Test CCN TABLE NAME: QCK_DV PIC6 PATH: Main Menu  19DV Quick Test DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE...
  • Page 66 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Quick Calibration Menu Navigation: MAIN MENU  QUICK Calibration Quick Calibration CCN TABLE NAME: QCK_CALI PIC6 PATH: Main Menu  Quick calibration DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE* Quick Test Enable QCK_TEST...
  • Page 67 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Maintenance Menu Navigation: MAIN MENU  MAINTENANCE MENU PAGE ICON DISPLAYED TEXT* ACCESS ASSOCIATED TABLE Capacity Control Service CAPACTRL Override Control Service OVERRIDE Surge Correction Service MAISURGE Maintenance VFD Config Service VFD_MCFG Swift Restart Service...
  • Page 68 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Capacity Control CCN TABLE NAME: CAPACTRL PIC6 PATH: Main Menu  Maintenance Menu  Capacity Control DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE* Total Error + Resets tot_err °F Control Point Error ctrl_err...
  • Page 69 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Surge Correction CCN TABLE NAME: MAISURGE PIC6 PATH: Main Menu  Maintenance Menu Surge Correction DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE* Surge Region 0 = No, 1 = Low, 2 = High, act_reg 0 to 4 3 = Deadband, 4 = Noise...
  • Page 70 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Swift Restart CCN TABLE NAME: MAISWRST PIC6 PATH: Main Menu  Maintenance Menu Swift Restart LINE PIC6 DESCRIPTION CCN NAME RANGE DEFAULT VALUE* UNIT READ/WRITE SRD Position @Shutdown srd_shut 0 to 100 VFD Speed @Shutdown vfd_shut 0 to 100...
  • Page 71 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Power Load Parameters CCN TABLE NAME: POWER_O PIC6 PATH: Main Menu  Maintenance Menu Power Load Parameters DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE* VFD Load Current VFD_LOAD Percent VFD Load Current amps_p_o Ground Fault Current...
  • Page 72 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) VFD Status CCN TABLE NAME: VFD_STAT PIC6 PATH: Main Menu  Maintenance Menu UM VFD Status DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE Single Cycle Dropout cycle_1 NO/YES Line Current Imbalance lineim_i NO/YES...
  • Page 73 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Maintenance Others CCN TABLE NAME: MAIOTHER PIC6 PATH: Main Menu  Maintenance Menu Maintenance Others LINE PIC6 DESCRIPTION CCN NAME RANGE DEFAULT VALUE* UNIT READ/WRITE 5V Sensor Power Monitor tran_v Evap Pres Trans Volts evapp_v Cond Pres Trans Volts condp_v...
  • Page 74 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Maintenance IOB CCN TABLE NAME: MAIIOB PIC6 PATH: Main Menu  Maintenance Menu Maintenance IOB DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE* IOB1 Power Supply Volt vol_iob1 IOB1 Num Peak Prev Sec nm_peak1 IOB1 Low Voltage Flag low_vol1...
  • Page 75 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Pressure Sensor Calib (PRES_CAL) Menu Description Navigation: MAIN MENU  MAINTENANCE MENU  PRESSURE SENSOR CALIB PAGE ICON DISPLAYED TEXT ACCESS ASSOCIATED TABLE Evap Pressure Sensor Service PRSCAL01 Cond Pressure Sensor Service PRSCAL02 Evap Entering Water P...
  • Page 76 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Evap Pressure Sensor CCN TABLE NAME: PRSCAL01 PIC6 PATH: Main Menu  Maintenance Menu Pressure Sensor Calib Evap Pressure Sensor DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE Evap Pressure Sensor Calibration Enable cal_en DISABLE/ENABLE...
  • Page 77 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Evap Leaving Water P CCN TABLE NAME: PRSCAL08 PIC6 PATH: Main Menu  Maintenance Menu Pressure Sensor Calib Evap Leaving Water P DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE Evap Leaving Water P Calibration Enable...
  • Page 78 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Bearing Inlet Pressure CCN TABLE NAME: PRSCAL12 PIC6 PATH: Main Menu  Maintenance Menu Pressure Sensor Calib  Bearing Inlet Pressure DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE Pump Input Press Cali cal_en DISABLE/ENABLE...
  • Page 79 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) System Status CCN TABLE NAME: SYS_STAT PIC6 PATH: Main Menu  Maintenance Menu System Status DEFAULT LINE PIC6 DESCRIPTION CCN NAME RANGE UNIT READ/WRITE VALUE* System Control Mode sys_ctlm System Status sys_stat Master Run Status mas_stat...
  • Page 80 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) System Configuration CCN TABLE NAME: N/A PIC6 PATH: Main Menu  System Configuration LINE PIC6 DESCRIPTION CCN NAME RANGE DEFAULT VALUE* UNIT READ/WRITE Date/Time Configuration Current Date Current Time Config Date Config Time Time Zone Time Zone Status...
  • Page 81 APPENDIX A — PIC6 SCREEN AND TABLE STRUCTURE (CONT) Alarms Menu Description PAGE ICON DISPLAYED TEXT ACCESS ASSOCIATED TABLE Reset Alarms ALARMRST Current Alarms CUR_ALM History Alarms ALMHIST1 Alarm Reset CCN TABLE NAME: ALARMRST PIC6 PATH: Main Menu  Alarm Menu  Alarm Reset DEFAULT LINE PIC6 DESCRIPTION...

  • Page 82: Settings

    APPENDIX B — IOB AND HMI DIP SWITCH SETTINGS IOB Dip Switch Settings (Fig. F) SW1 SETTING (1 TO 4) SW2 SETTING (1 TO 10) IOB-1 0000 0000000000 IOB-2 1000 0010000110 IOB-3 0100 0001010100 IOB-4 1100 0000000110 IOB ADDRESS 20 mA SHUNT IOB ADDRESS 20 mA SHUNT a19-2135...

  • Page 83: Appendix C - Input/Output Board (Iob) Status Indicators

    APPENDIX C — INPUT/OUTPUT BOARD (IOB) STATUS INDICATORS All control boards have LED indicators that show control • Microprocessor operational and communicating with con- board and communication status. trol system: LED flashes at 0.5 Hz rate (1 second on, 1 sec- ond off) in sync (±100 ms) with all other new control mod- A red LED on each control module operates in the following ules on the same communication bus...

  • Page 84: Appendix D - Network Configuration

    APPENDIX D — NETWORK CONFIGURATION OBJECT NAME OBJECT TYPE INSTANCE OPTION COVINC PV ACCESS DESCRIPTION ALARMRST_alarm_1 Type 6 Jbus Current Alarm 1 ALARMRST_alarm_2 Type 6 Jbus Current Alarm 2 ALARMRST_alarm_3 Type 6 Jbus Current Alarm 3 ALARMRST_alarm_4 Type 6 Jbus Current Alarm 4 ALARMRST_alarm_5 Type 6 Jbus Current Alarm 5...
  • Page 85 APPENDIX D — NETWORK CONFIGURATION (CONT) OBJECT NAME OBJECT TYPE INSTANCE OPTION COVINC PV ACCESS DESCRIPTION HYDRLIC_CHW_FLOW Type 4 Chilled Water Flow HYDRLIC_CHW_FV Type 6 Chilled Water Flow Value HYDRLIC_chw_pd Type 6 Chilled Water Delta P HYDRLIC_CHWP Type 4 Chilled Water Pump HYDRLIC_ctrlw_dt Type 6 Controlled Water DT...
  • Page 86 APPENDIX D — NETWORK CONFIGURATION (CONT) OBJECT NAME OBJECT TYPE INSTANCE OPTION COVINC PV ACCESS DESCRIPTION OUTPUTS_COMP_PSV Type 4 Purge Comp Valve OUTPUTS_COMP_SR Type 4 Compressor Start Relay OUTPUTS_COND_CV Type 4 Condenser Control Valve OUTPUTS_COND_DCV Type 4 Condenser Drain Valve OUTPUTS_COND_FCV Type 4 Condenser Filling Valve...
  • Page 87 APPENDIX D — NETWORK CONFIGURATION (CONT) OBJECT NAME OBJECT TYPE INSTANCE OPTION COVINC PV ACCESS DESCRIPTION PRESSURE_PUMP_PD Type 6 Ref Pump Delta P PRESSURE_REF_PD Type 6 Bearing Delta P QCK_TEST_Q_DIFTGT Type 6 Diffuser Target Pos QCK_TEST_Q_GV1ACT Type 6 Guide Vane 1 Actual Pos RUNTIME_C_STARTS Type 6 Compressor Starts Num...
  • Page 88 APPENDIX E — MODBUS CONFIGURATION ADDRESS VALUE DISPLAY REG. N° PARAMETER DESCRIPTION TYPE UNIT COMMENT MODE HEXADEC. DEC. MIN. MAX. DEFAULT 0x0FA0 4000 GENUNIT_ctl_mode Control Mode 32bits UINT 0x07D0 2000 GENUNIT_statstop Deter Start Stop Command 1bit BOOL 0x07D1 2001 GENUNIT_CHIL_S_S Network:Cmd Start/Stop 1bit BOOL 0x07D2...
  • Page 89 APPENDIX E — MODBUS CONFIGURATION (CONT) ADDRESS VALUE DISPLAY REG. N° PARAMETER DESCRIPTION TYPE UNIT COMMENT MODE HEXADEC. DEC. MIN. MAX. DEFAULT psig 0x0FEC 4076 PRESSURE_REF_PD Bearing Delta P 32bits FLOAT psig 0x0FEE 4078 PRESSURE_PUMP_PD Ref Pump Delta P 32bits FLOAT psig 0x0FF0 4080...
  • Page 90 APPENDIX E — MODBUS CONFIGURATION (CONT) ADDRESS VALUE DISPLAY REG. N° PARAMETER DESCRIPTION TYPE UNIT COMMENT MODE HEXADEC. DEC. MIN. MAX. DEFAULT 0x102A 4138 CAPACTRL_vfd_tgt Target VFD Speed Per 32bits FLOAT 0x102C 4140 CAPACTRL_gv1_tgt Target GV1 Pos 32bits FLOAT 0x102E 4142 CAPACTRL_gv2_tgt Target GV2 Pos...
  • Page 91 APPENDIX E — MODBUS CONFIGURATION (CONT) ADDRESS VALUE DISPLAY REG. N° PARAMETER DESCRIPTION TYPE UNIT COMMENT MODE HEXADEC. DEC. MIN. MAX. DEFAULT 0x108E 4238 CONF_PRG_ref_chg Refrig Charge Status 32bits UINT 0x10A0 4256 POWER_I_KWH Line Kilowatts Hours 32bits FLOAT °F 0x0BB8 3000 SETPOINT_ecdw_sp Heating ECDW Setpoint...
  • Page 92 © 2021 Carrier Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. Catalog No. 04-53190083-01 Printed in U.S.A. Form 19DV-CLT-5T Pg 92 5-21 Replaces: 19DV-CLT-4T...

Table of Contents
