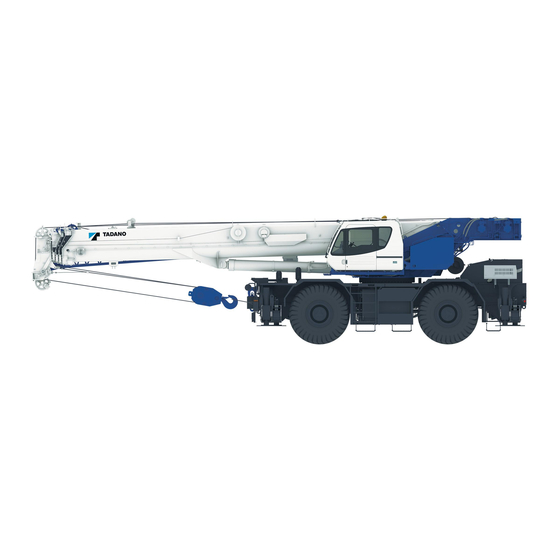

GR-1000EX-4
HYDRAULIC ROUGH TERRAIN CRANE
2,538
3,315
Turning radius (29.5–25)
4 wheel steer
2 wheel steer
(Left-hand drive)
100 Ton Capacity
DIMENSIONS
8,830
15,185
Note : Dimension is with boom angle at -1.5 degree.
GENERAL DIMENSIONS
GENERAL DIMENSIONS
Overall length
6.8 m
Overall width
10.9 m
Overall height
SPEC. SHEET NO. GR-1000E-4-00101/EX-01
2,200
1,875
3,550
3,780
8,580
3,950
2,405
approx. 15,185 mm
approx.
3,315 mm
approx.
3,805 mm
Specifications are subject to change without notice.
