Tadano GR-750XL Manual

Tadano GR-750XL Manual

Hydraulic rough terrain crane 75 ton capacity (68 metric tons)
Hide thumbs

Advertisement

Quick Links

Download this manual

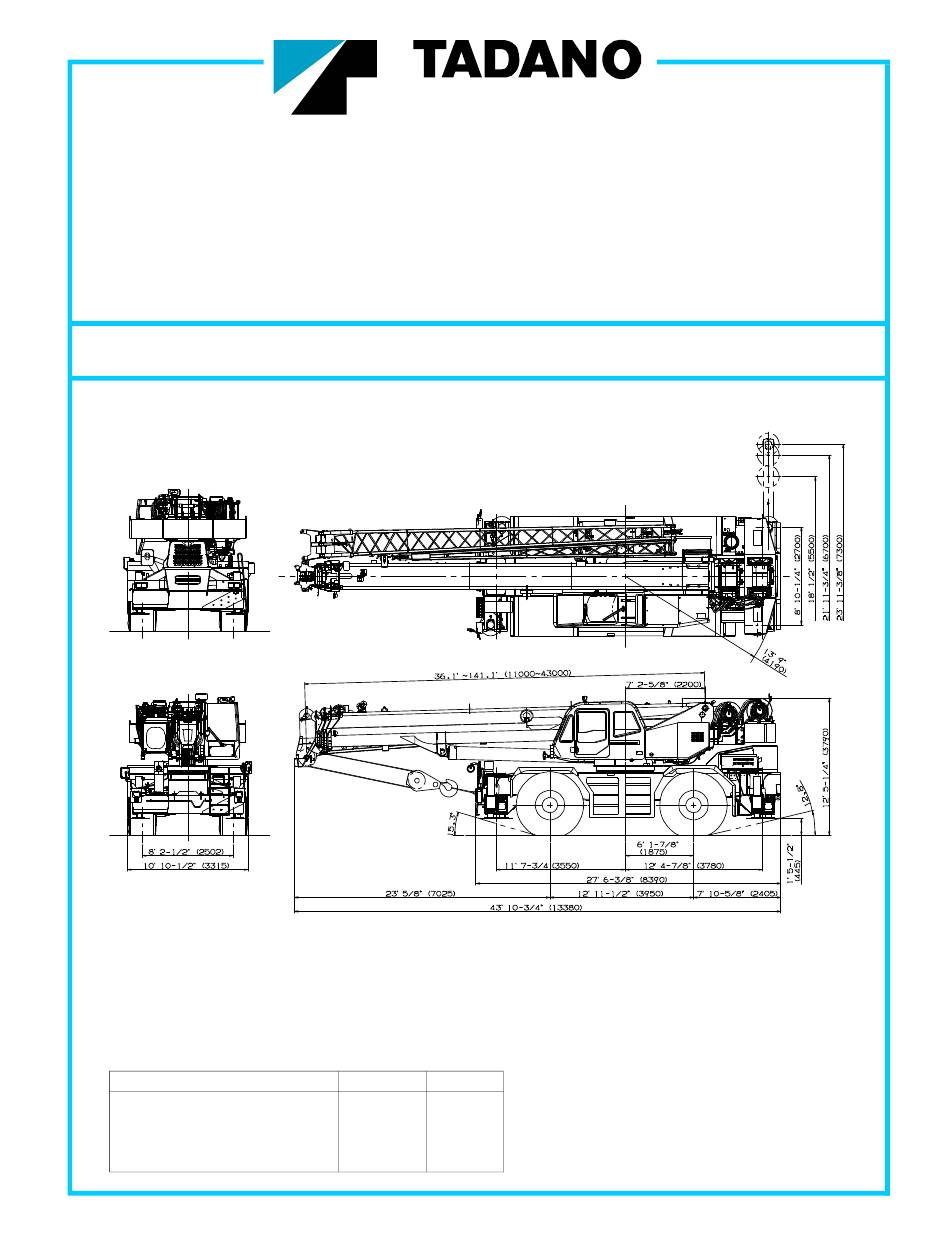

75 Ton Capacity (68 Metric Tons)
HYDRAULIC ROUGH TERRAIN CRANE
GENERAL DIMENSIONS
(29.5 - 25 Tires)
Turning radius
4 wheel steer
2 wheel steer
Tail swing of counterweight
GR-750XL
DIMENSIONS
Feet
Meters
22' 4"
6.8
39' 1"
11.9
13' 9"
4.19
Note : Dimension is with boom angle at -1.6 degree.
Specifications are subject to change without notice.
Specification effective with serial number 548831 and up.

Advertisement

loading
Need help?

Need help?

Do you have a question about the GR-750XL and is the answer not in the manual?

Questions and answers

Sheldon
June 10, 2025

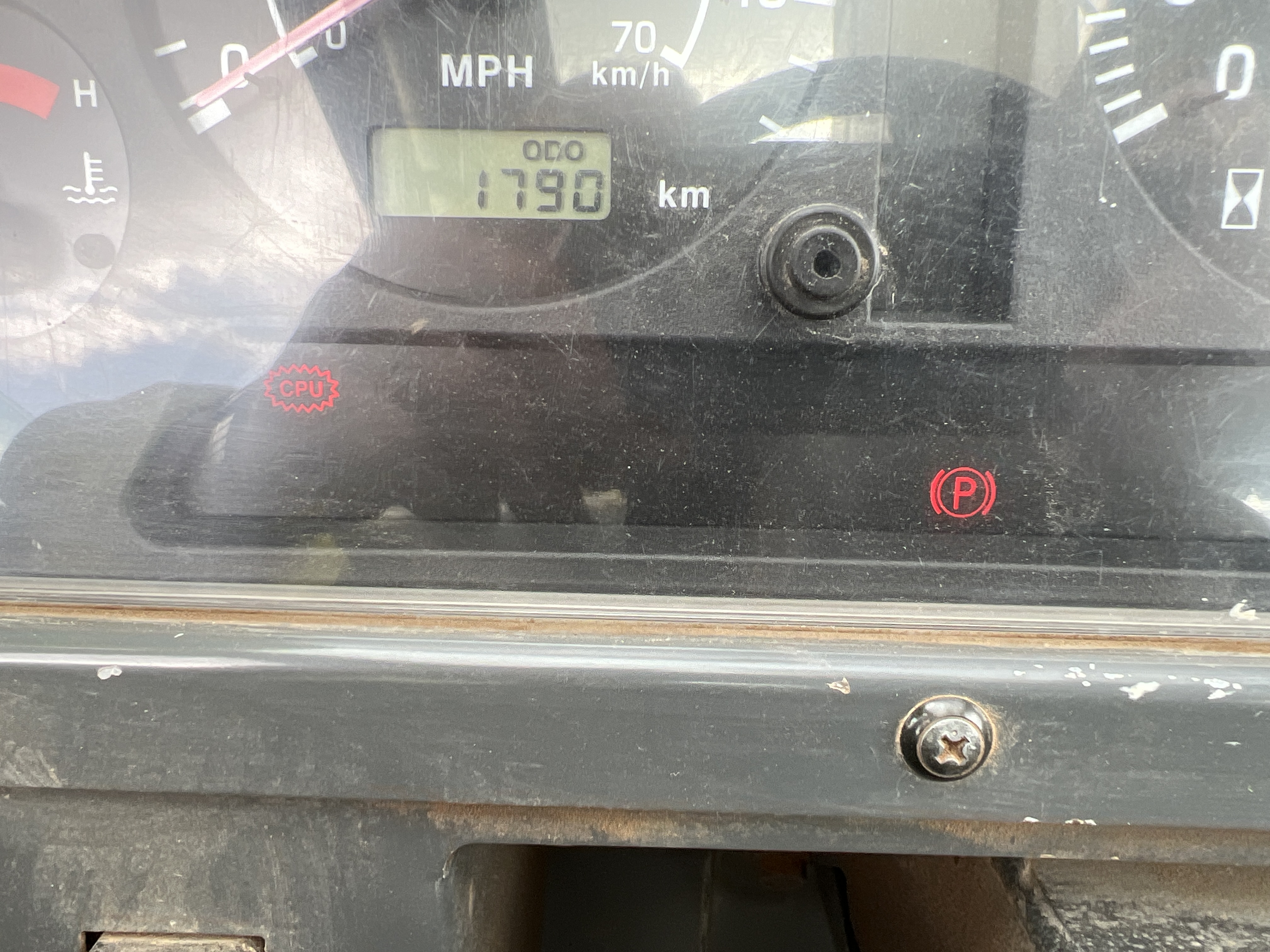

What does cpu stand for in a gr750xl?

User image 684854ec9dd12
0

Subscribe to Our Youtube Channel

Related Manuals for Tadano GR-750XL

Summary of Contents for Tadano GR-750XL

  • Page 1 GR-750XL 75 Ton Capacity (68 Metric Tons) HYDRAULIC ROUGH TERRAIN CRANE DIMENSIONS Note : Dimension is with boom angle at -1.6 degree. GENERAL DIMENSIONS (29.5 - 25 Tires) Feet Meters Turning radius 4 wheel steer 22' 4" 2 wheel steer 39' 1"...

  • Page 2: Crane Specifications

    CRANE SPECIFICATIONS BOOM WIRE ROPE - Warrington seal wire, extra improved plow steel, Five section full power synchronized telescoping boom, preformed, independent wire rope core, right regular lay. 36.1'~141.1' (11.0m~43.0m), of round box construction 3/4" (19 mm) 6x31 class with six sheaves, 17-5/16" (0.44m) root diameter, at boom head. Breaking strength (Main and Aux): 54,700 lbs (24,800 kg) The synchronization system consists of two telescope cylinders, an extension cable and retraction cable.
  • Page 3 Tadano electronic LOAD MOMENT INDICATOR system TADANO AML-C monitors outrigger extended length and (AML-C) including: automatically programs the corresponding "RATED LIFTING Control lever lockout function CAPACITIES" table Boom position indicator Outrigger state indicator Operator's right hand console includes transmission gear Boom angle / boom length / jib offset angle / jib length / load selector, and slewing lock lever and sight level bubble.

  • Page 4: Standard Equipment

    - Anti-Two block device (overwind cutout) - Disc brakes - Boom angle indicator - Fenders - Tadano electronic load moment indicator system (AML-C) - Air dryer - Outrigger extension length detector - Water separator with filter(high filtration) - Electronic crane monitoring system...
  • Page 5 GR-750XL WORKING RANGE CHART...
  • Page 6 GR-750XL WORKING RANGE CHART...
  • Page 7 GR-750XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS FULLY EXTENDED 23' 11-3/8"(7.3m) SPREAD ROTATION 36.1' 49.2' 62.3' (19m) 75.5' (23m) 88.6' (27m) 101.7' (31m) 114.8' (35m) 128.0' 141.1' (11m) C (15m) C C (39m) C (43m) 150,000 90,000 132,300 90,000...
  • Page 8 GR-750XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS FULLY EXTENDED 23' 11-3/8"(7.3m) SPREAD ROTATION 141.1' (43.0m) Boom + 33.2' (10.1m) Jib 141.1' (43.0m) Boom + 58.1' (17.7m) Jib offset offset offset offset offset offset 35.1' 48.6' 55.4' 43.0' 65.6' 76.8'...
  • Page 9 GR-750XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID EXTENDED 21' 11-3/4"(6.7m) SPREAD ROTATION 36.1' 49.2' 62.3' (19m) 75.5' (23m) 88.6' (27m) 101.7' (31m) 114.8' (35m) 128.0' 141.1' (11m) C (15m) C C (39m) C (43m) 150,000 90,000 130,000 90,000...
  • Page 10 GR-750XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID EXTENDED 21' 11-3/4"(6.7m) SPREAD ROTATION 141.1' (43.0m) Boom + 33.2' (10.1m) Jib 141.1' (43.0m) Boom + 58.1' (17.7m) Jib offset offset offset offset offset offset 35.1' 9,300 48.6' 8,800 55.4' 7,500 43.0'...
  • Page 11 GR-750XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID EXTENDED 18' 1/2"(5.5m) SPREAD ROTATION 36.1' 49.2' 62.3' (19m) 75.5' (23m) 88.6' (27m) 101.7' (31m) 114.8' (35m) 128.0' 141.1' (11m) C (15m) C C (39m) C (43m) 150,000 90,000 121,200 90,000...
  • Page 12 GR-750XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MID EXTENDED 18' 1/2"(5.5m) SPREAD ROTATION 141.1' (43.0m) Boom + 33.2' (10.1m) Jib 141.1' (43.0m) Boom + 58.1' (17.7m) Jib offset offset offset offset offset offset 35.1' 9,300 48.6' 8,800 55.4' 7,500 43.0'...
  • Page 13 GR-750XL RATED LIFTING CAPACITIES (IN POUNDS) ON OUTRIGGERS MIN EXTENDED 8' 10-5/16"(2.7m) SPREAD ROTATION 36.1' 49.2' 62.3' (19m) 75.5' (23m) 88.6' (27m) 101.7' (31m) 114.8' (35m) 128.0' 141.1' (11m) C (15m) C C (39m) C (43m) 128,500 90,000 79,000 77,300...
  • Page 14 1. RATED LIFTING CAPACITIES apply only to the machine as 11. Load per line should not exceed 12,300 lbs. (5,600kg) for originally manufactured and normally equipped by TADANO main hoist and auxiliary hoist. LTD. Modifications to the machine or use of optional 12.
  • Page 15 GR-750XL RATED LIFTING CAPACITIES (IN POUNDS) ON RUBBER Stationary Creep Over Front Over Front Rotation 36.1' 62.3' 88.6' 36.1' 62.3' 88.6' 36.1' 62.3' 88.6' (11m) (19m) (27m) (11m) (19m) (27m) (11m) (19m) (27m) 65,000 41,000 51,000 60,000 29,000 44,000 22,000...
  • Page 16 2 degrees from centered over front of chassis, 360 capacities are in effect. aids in place of good operating practice can cause an accident. The operator must exercise caution to assure safety. GR-750XL Axle weight distribution chart Pounds Kilograms Front Rear...
