TPT 60
User's Manual
www.custom.it
TPT 60

Advertisement

loading
Need help?

Need help?

Do you have a question about the TPT 60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Custom Audio Electronics TPT 60

Summary of Contents for Custom Audio Electronics TPT 60

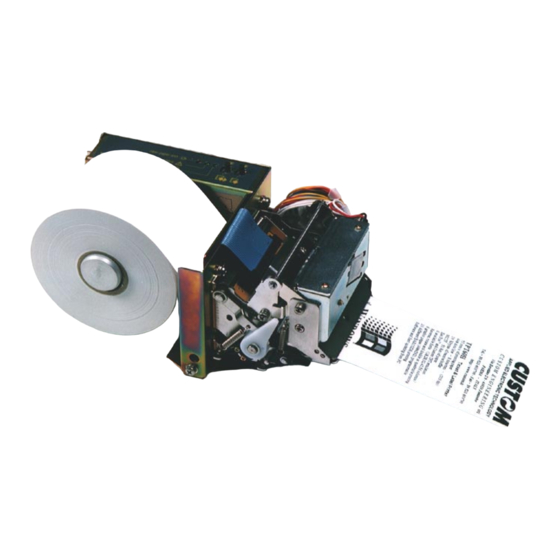

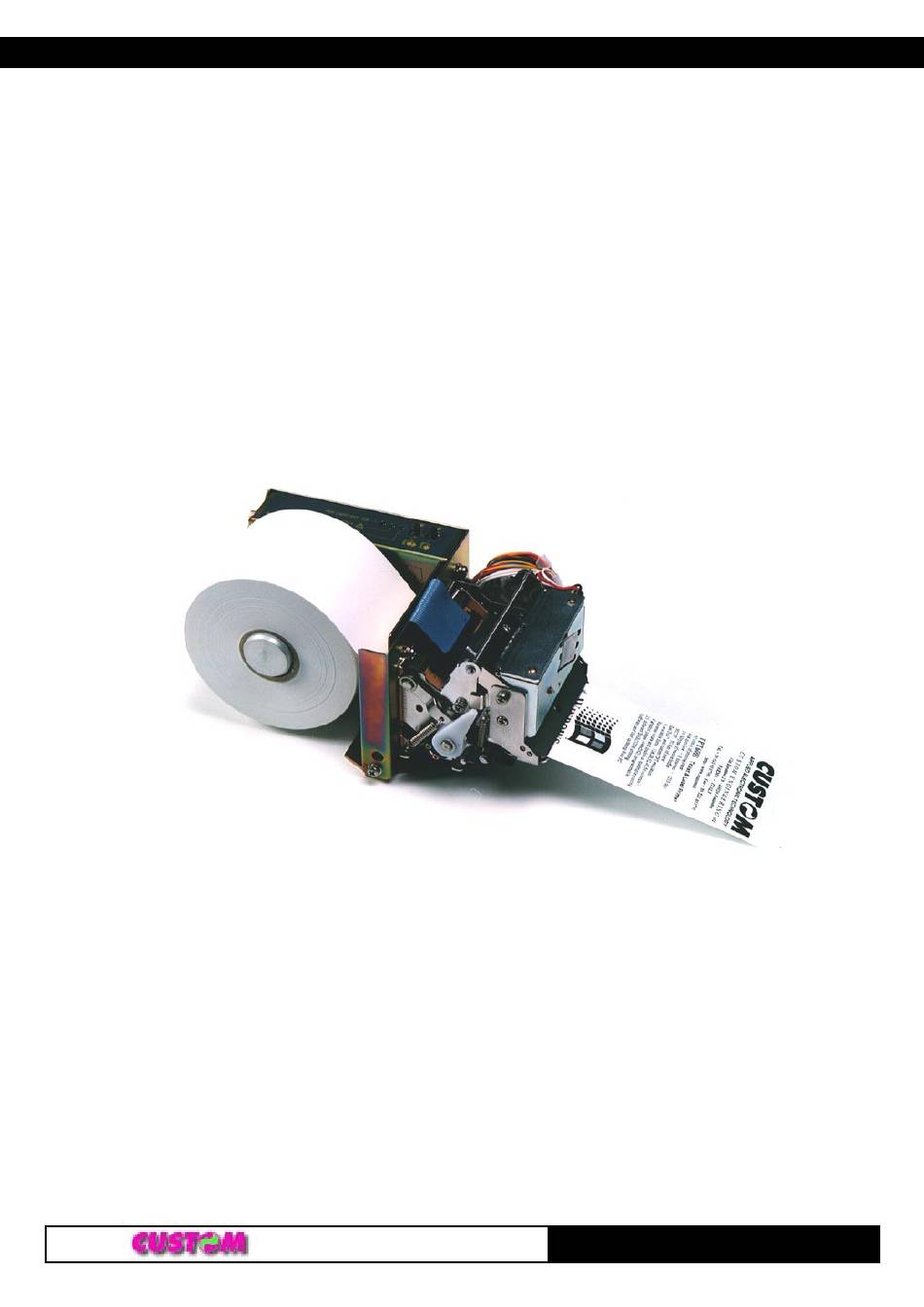

  • Page 1 TPT 60 User’s Manual www.custom.it TPT 60...
  • Page 2 COD. DOME - TPT60 REV. 1.10 Copyright © 1998 Custom Engineering s.r.l. – Italy Custom Engineering Str. Berettine 2 - 43010 Fontevivo (PARMA) - Italy Tel. : +39 0521-680111 Fax : +39 0521-610701 http: www.custom.it Email : support@custom.it TPT 60...
  • Page 3 . s t c i t y t i . s t i t s y t i . s t n i l n i l c i t y t i . t s TPT 60...

  • Page 4: General Information Regarding Safety

    D. The printer is not operating normally despite the instructions in the user’s manual having been followed. E. The printer has been dropped and its case damaged. F. The performance of the printer is poor. G. The printer does not work. TPT 60...
  • Page 5 With the use of Flash memory technology, is possible : • Program 5 graphic pages, and print them quickly; • Print 7 different kinds of barcode; • Updating of fonts or release filmware with Custom Eng. Software. Microsoft Windows driver is available on request. TPT 60...
  • Page 6 Single 24 Vdc ABSORPTION Medium current 1.25 A Current on standby 38 mA Peak current 60 mA ENVIRONMENTAL CONDITIONS Operating temperature 0°C - +50°C Operating humidity 35% - 85% Storage temperature /humidity -35°C - +65°C / 10%-90% Overall Dimensions TPT 60...

  • Page 7: Connectors Layout

    C E N T R O N IC S PA R A L LE L IN T E R FA C E S E R IA L IN TE R FA C E SERIAL VERSION PARALLEL VERSION N.B. The square pads indicate the pin 1 of connectors. TPT 60...
  • Page 8 1 of connectors. SERIAL PORT N.B. The square pads indicate the pin 1 of connectors. PARALLEL PORT J5POWER SUPPLY SIGNAL FUNCTION Power 24 Vcc J7SERIAL PORT SIGNAL FUNCTION RS-232 data output RS-232 data input Request to send TPT 60...
  • Page 9 Serial data input CLOCK Synchronous data clock LATCH Data latch STR5 Strobe 5 Thermal head power (+5v) STR3 Strobe 3 STR4 Strobe 4 STR2 Strobe 2 STR1 Strobe 1 Thermistor Thermistor Thermal head common Thermal head common Thermal head common TPT 60...
  • Page 10 Paper end detection 2 Switch Head open detection switch White Switch Head open detection switch White Switch Head up detection switch White Switch Head up detection switch White CUTTER CONNECTOR SIGNAL COLOUR MOTOR + MOTOR - BLACK SWITCH WHITE SWITCH WHITE TPT 60...

  • Page 11: Installation And Use

    Selects paper sensitivity, that is, the duration of NORM * the strobe pulse applied to the printing head. DOUBLE COPY PAPER WIDTH NORMAL * Selects default printing width DOUBLE QUADRUPLE HEIGHT NORMAL * Selects default printing height DOUBLE QUADRUPLE TPT 60...

  • Page 12: Printer Functions

    GS + ”k”+n 1Dh+6Bh+n PRINTS A BAR CODE GS +”w”+n 1Dh+77h+n SELECTS BAR CODE WIDTH GS +”H”+n 1Dh+48h+n SELECTS HRI PRINT POSITION GS +”h”+n 1Dh+68h+n SELECTS BAR CODE HEIGHT GS +”I”+n 1Dh+46h+n TRANSMIT PRINTER ID (only serial interface) TPT 60...
  • Page 13 This command enables cutter operation; if there is no cutter, a disabling flag is set and any subsequent cut commands will be ignored. If the cutter is the partial cut version, this command makes a partial cut. If the printer receives two paper cut command, it executes only one cut. TPT 60...
  • Page 14 1Bh + 40h Description Resets the printer When this command is received, the printer resets, restoring the default programming and erasing the RAM.The machine requires approx. 2 seconds from reception of the command to regain its full operating capacity. TPT 60...
  • Page 15 0 = 1 Check enabled Ascii 1 Bh + 7Bh + n Description Sets reverse print mode This sets or cancels the reverse print flag according to “n”. n = 0 Normal printing n <> 0 Reverse printing TPT 60...
  • Page 16 8 dots, which on paper correspond to 1 mm, both horizontally and vertically. To fill the memory completely, 1344 bytes are required. For example, to print a filled bar 448 dot long and 24 dot high, send the following command: 1Bh + 2Bh + 05h + 40h + (1344* FFh) TPT 60...
  • Page 17 * 256) + n4 x2=(n5 * 256) + n6 y2=(n7 * 256) + n8 The values of coordinates x1 and x2 are aligned with the byte. Ascii 1Bh + 7Ch Description Cancels the graphic page This cancels the graphic page. TPT 60...
  • Page 18 01h = Print rotated by 90° 02h = Print rotated by 180° 03h = Print rotated by 270° n6 = Printing dimension 00h = Normal dimension 01h = Double height 02h = Double width 03h = Double height + Double width TPT 60...
  • Page 19 This transmits a byte, the bits of which indicate the status of the machine, to the serial port. FUNCTION Paper Almost Out Photocell Nick photocell Paper Presence Line Feed key Form Feed key Over-Heat flag Motor ON Error due to Paper End, Head Up etc. TPT 60...
  • Page 20 This command can transfer graphic page into ram. 56 bytes is an orizzontal dotline of 448 dots ; for 292 dotlines. The number of bytes that make graphic page are 56x292 = 16352, the other 32 bytes must be send, but don’t have importance. TPT 60...
  • Page 21 (must replace). Ascii ESC s 1Bh + 73h Description Sends RAM bank to port (16kbytes) (only serial interface) This command sends the 16384 RAM bytes to serial port. TPT 60...
  • Page 22 Number of dot feeds per FORM FEED n = 3 byte 1 FUNCTION Bar Code size “ “ “ These bits correspond to the coding assigned with the commands GS w and GS H. byte 2 Bar Code height TPT 60...
  • Page 23 = 4 CODE 39 (max 12 char) n = 5 ITF (Interleaved 2 of 5) (max 22 char) n = 6 CODEBAR (max 16 char) n = 7 UPC-A Rotate command don’t have effect on bar code print. TPT 60...
  • Page 24 GS h n 1Dh + 68h + n Description Selects Bar Code height The value of “n” determines bar code height in 1/8 mm units. The minimum value is 8 (1 mm) and the maximum value is 255 (31.8 mm). TPT 60...
  • Page 25 Return printer Type ID suck is specified in the follow table : Off/On Decimal Function Not used. Autocutter equipped. Non-label thermal paper Not used. Not used. Not used. Not used. Not used. if n = 3 Return printer release firmware (4 byte) Example : ‘1’ ‘.’ ‘0’ ‘1’. TPT 60...
