Bcube SP501 User Manual page 18

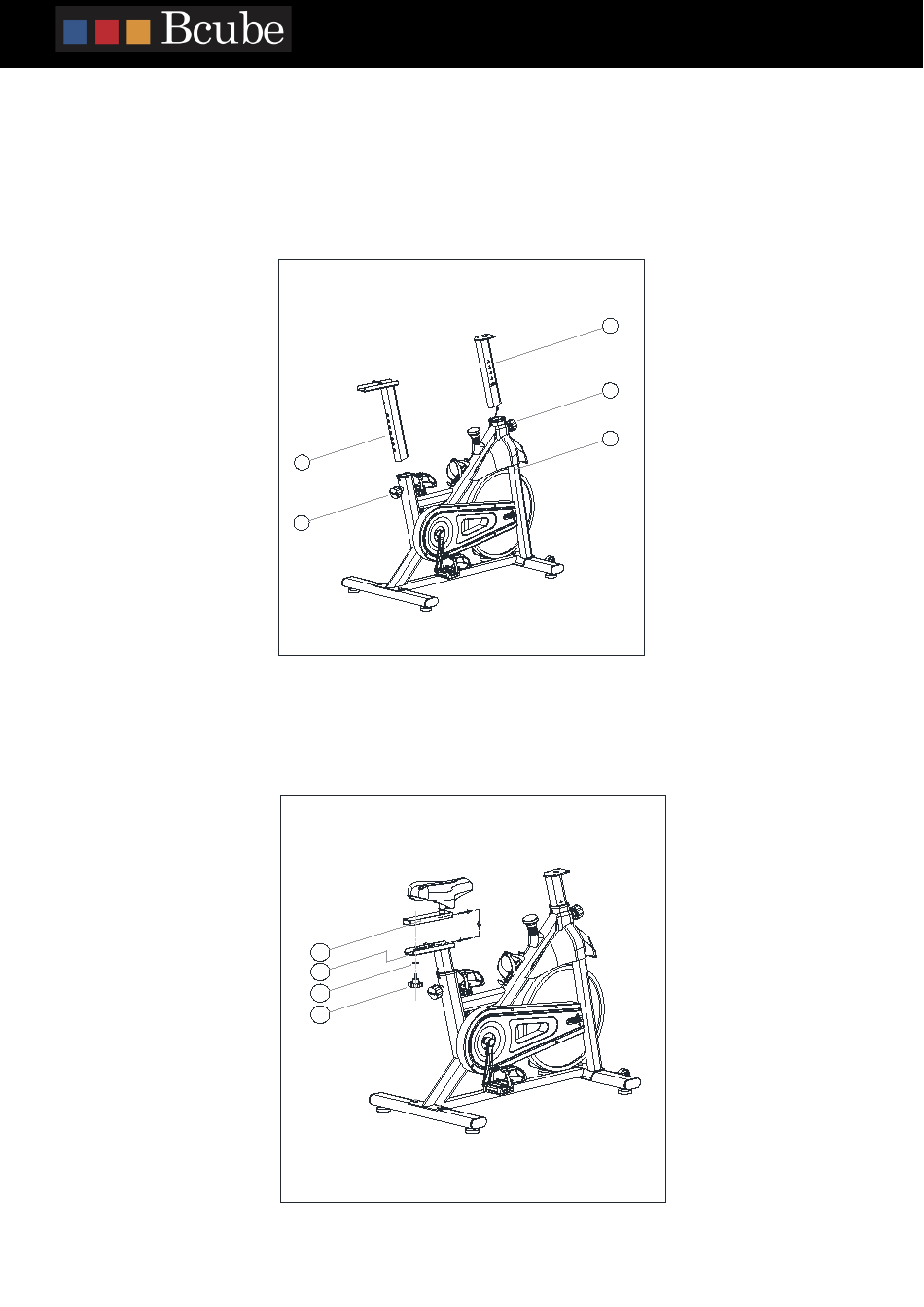

STEP 3:
Insert the seat post (4) into the frame (1) and pull out the adjustment knob (14) so that the adjustment knob (14)
automatically engages in the corresponding hole of the seat post (4).
Similarly, the handlebar support (5) is inserted into the frame (1) and the adjustment knob (14) is pulled out so that the
adjustment knob (14) automatically engages in the corresponding hole in the handlebar (5).
Note: Pull out the adjustment knob (14) to adjust the height of the seat post (4) or the handle post (5). After the adjustment,
you must tighten the adjustment knobs (14) again.
Step 4:
Mount the horizontal saddle adjuster (7) to the seat post (4) and secure it with a washer (19) and adjusting nut (15).
Note: Loosen the adjusting nut (15) to adjust the position of the horizontal saddle adjuster (7) back and forth to the appropriate
position. The adjusting nut (15) must be tightened before use.
B
4
14
7
4
19
15
17
OPERATING INSTRUCTIONS
5
14
1
