LG SH5B Owner's Manual

LG SH5B Owner's Manual

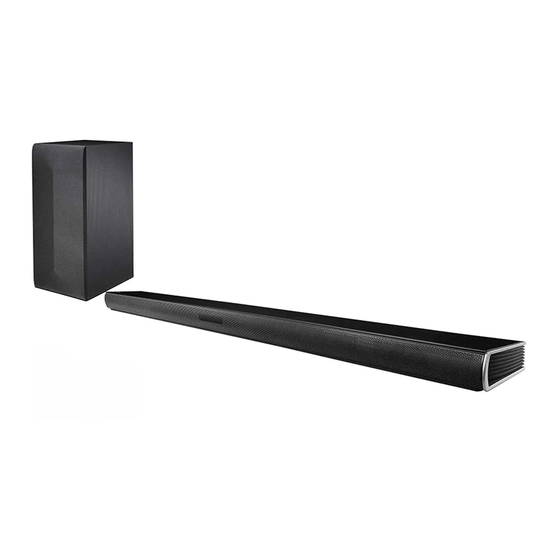

Wireless sound bar
Hide thumbs Also See for SH5B:
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
Wireless
Sound Bar
Please read this manual carefully before operating
your set and retain it for future reference.
MODEL
SH5B (SH5B, SPH5B-W)
*MFL69465042*
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG SH5B

Summary of Contents for LG SH5B

  • Page 1 OWNER’S MANUAL Wireless Sound Bar Please read this manual carefully before operating your set and retain it for future reference. MODEL SH5B (SH5B, SPH5B-W) *MFL69465042* www.lg.com...
  • Page 2 Getting Started Safety Information CAUTION: Do not use high voltage products around this product. (ex. Electrical swatter) This product may malfunction due to electrical shock. CAUTION CAUTION: No naked flame sources, such as lighted candles, should be placed on the device. RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: Do not block any ventilation openings.
  • Page 3 Getting Started 11. Only use attachments/accessories specified by This device is equipped with a portable battery or accumulator. the manufacturer. Safe way to remove the battery from the 12. Use only with the cart, stand, tripod, bracket, or equipment: Remove the old battery or battery pack, table specified by the manufacturer, or sold with follow the steps in reverse order than the assembly.
  • Page 4 Responsible Party : y Reorient or relocate the receiving antenna. LG Electronics USA, Inc. y Increase the separation between the equipment 1000 Sylvan Ave and the receiver. Englewood Cliffs, NJ 07632...

  • Page 5: Table Of Contents

    Front panel – AUTO POWER On/Off Rear panel – Auto function change Installing the sound bar – LG Sound Sync Mounting the main unit on a wall Using BLUETOOTH® technology – Listening to music stored on the Bluetooth Connecting devices...

  • Page 6: Getting Started

    Notebook, etc) Remote control (1) Batteries (2) LG Sound Sync Controls volume level of this unit by the remote control of your LG TV that is compatible with LG Sound Sync. AC adapter (1) Power cords (2) Introduction Symbols used in this manual...

  • Page 7: Remote Control

    Getting Started Remote control • • • • • • • • • • • • • • a • • • • • • • • • • • • • 1 (Power) : Switches the unit ON or OFF. / Switches to the standby mode.

  • Page 8: Front Panel

    Getting Started Front panel A Remote sensor C The buttons are located on the rear. B Display window Rear panel A o/p : (Volume) : Adjusts volume level B DC IN : AC adapter input F (Function) : Selects the function and input C OPTICAL IN : Optical input source.

  • Page 9: Installing The Sound Bar

    Getting Started Installing the sound bar You can hear the sound by connecting the unit to the other device : TV, Blu-ray disc player, DVD player, etc. Place the unit in front of the TV and connect it to the device you want.

  • Page 10: Mounting The Main Unit On A Wall

    Getting Started Mounting the main unit 1. Match the TV’ s BOTTOM EDGE of Wall bracket install guide with the bottom of TV and attach to on a wall the position. You can mount the main unit on a wall. 2.
  • Page 11 Getting Started 4. Fix the brackets with screws (A) as shown in the 6. Fix the unit with the screws firmly. illustration below. Note Screws (A) and Wall Plugs are not supplied for Note mounting the unit. We recommend the Hilti To detach the unit, perform it in reverse order.

  • Page 12: Connecting

    Connecting Connecting the AC Wireless subwoofer Adapter connection Connect the speaker to the power supply with the LED indicator of wireless subwoofer supplied AC adapter. 1. Connect the supplied AC power cord to the AC LED Color Status adapter. 2. Connect the AC adapter cable to DC IN adapter Green Attempting to make input.
  • Page 13 Connecting Manually pairing wireless subwoofer 5. Turn on the main unit. : The sound bar and wireless subwoofer will be automatically When your connection is not completed, you can connected. check red LED or blinking green LED on the wireless - Green LED on the rear of wireless subwoofer subwoofer and the wireless subwoofer does not turns on.

  • Page 14: Connecting To Your Tv

    Connecting Connecting to your TV Using an HDMI cable If you connect this unit to a TV that supports HDMI CEC and ARC (Audio Return Channel), you can Please connect this unit and the TV using the optical enjoy the TV audio through the speakers of this unit digital cable or HDMI cable considering the capability without connecting the optical cable.

  • Page 15: Enjoy Rich Sound Broadcast Of The Channel With The Sound Bar

    Some functions of this unit are controlled by the cable. Therefore connect this unit to the TV and TV’ s remote control when this unit and LG TV’ s with check whether the Type A, High speed HDMI™ Cable SIMPLINK are connected through HDMI connection.

  • Page 16: Arc (Audio Return Channel) Function

    Connecting ARC (Audio Return Channel) Additional information for HDMI function y When you connect an HDMI or DVI compatible device make sure of the following: The ARC function enables an HDMI capable TV to - Try switching off the HDMI/DVI device and this send the audio stream to HDMI OUT of the unit.

  • Page 17: Optional Equipment Connection

    Connecting Optional equipment For enjoying both sound and picture You can enjoy both sound and picture from the connection external device you connect. HDMI connection You can enjoy the sound and picture from HDMI connection on external device. HDMI cable For enjoying sound only You can enjoy the sound from the external device you connect.

  • Page 18: Optical In Connection

    Connecting Optical In connection Portable In connection Connect an optical output jack of external devices to the OPTICAL IN jack. Portable MP3 player, etc... cable Optical cable To the optical output jack of external device 1. Connect the OPTICAL IN jack on the back of the unit to optical out jack of your TV (or digital device etc.) Listening to music from your portable...

  • Page 19: Usb Connection

    Connecting USB connection USB device requirement Connect USB memory device to the USB port on the y Devices which require additional program back of the unit. installation connected to a computer, are not supported. y Do not extract the USB device while in operation. y For a large capacity USB, it may take longer than a few minutes to be searched.

  • Page 20: Playable File

    Connecting Note Playable file y Folders and files on the USB are recognized Sampling Frequency as below. MP3 : within 32 to 48 kHz : Folder WMA : within 32 to 48 kHz *ROOT OGG : within 32 to 48 kHz : File FLAC : within 32 to 192 kHz WAV : within 32 to 48 kHz...

  • Page 21: Operating

    Operating Note Basic operations y The resume point may be cleared when you pull out the power cord or removing the USB device from the unit. USB operation y Repeat/Random playback operates as follows. 1. Connect the USB device to the USB port. 2.

  • Page 22: Other Operations

    2 seconds, "ON - AUTO DISPLAY" appears and Auto Display function is turned on. (Default : ON) OPT, HDMI, LG TV, ARC : If there is no key input for about 15 seconds, display will be darkened. After about 5 seconds, display will be turned off.

  • Page 23: Auto Power On/Off

    20 from the TV connected by LG Sound Sync minutes. (Optical/Wireless). This unit also turns off after six hours if the Main...

  • Page 24: Auto Function Change

    LG TV that is supported LG When you turn on the external device connected to Sound Sync. Make sure of the LG Sound Sync logo on this unit by an optical cable, this unit changes the your TV.
  • Page 25 Operating With wired connection With wireless connection 1. Connect your LG TV to the unit by using an 1. Turn on the unit by pressing 1 (Power) on the optical cable. remote control. 2. Select the input source to LG TV by pressing F button repeatedly.

  • Page 26: Using Bluetooth® Technology

    Available Devices : Mobile phone, MP3, Laptop, found may appear in the Bluetooth device display PDA etc. depending on the type of Bluetooth device. Your unit appears as “LG SH5B (XX)” . y Version : 4.0 Note y Codec : SBC...
  • Page 27 Operating Note 3. When this unit is successfully connected with your Bluetooth device, y The sound may be interrupted when the "PAIRED" Your device's name "BT" appears on connection has interference by the other display wndow in order. electronic waves. Note y Pairing is limited to one Bluetooth device per unit and multi-pairing is not supported.

  • Page 28: Using Bluetooth App

    Operating Using BLUETOOTH App Install “Music Flow Bluetooth” App through “Google Android Market (Google Play Store)” Note 1. Tap the “Google Android Market (Google Play Only Android OS is available to use “Music Flow Store)” icon. Bluetooth ” app with this unit. 2.

  • Page 29: Sound Adjustment

    Operating Note Sound adjustment y “Music Flow Bluetooth” app will be available in the software version as follow; - Android O/S : Ver 4.0.3 (or later) Setting sound effect y If you use “Music Flow Bluetooth ” app for This system has a number of pre-set surround sound operation, there would be some differences fields.

  • Page 30: Adjust Volume Level Automatically

    Operating Adjust volume level Adjust the Subwoofer/Treble/ automatically Bass This unit supports auto volume function that You can adjust the sound level of Subfwoofer, Treble automatically adjusts the volume level. and Bass as your preference. When the output sound is too loud or too low, press WF (Subwoofer) : -15 dB to 6 dB AUTO VOL on the remote control.

  • Page 31: Troubleshooting

    Check the state of SIMPLINK and turn off SIMPLINK. work. y Depending on the connected device, this function may not operate. y Check whether your LG TV supports LG Sound Sync. LG Sound Sync does y Check connection of LG Sound Sync (Optical or wireless).

  • Page 32: Notes To Use Wireless

    Troubleshooting PROBLEM CAUSE & CORRECTION Check the details below and adjust the unit according to them. y With the sound bar connected with TV, change the AUDIO DIGITAL OUT setting on TV Setup Menu from [PCM] to [AUTO] or [BITSTREAM]. When you feel the y With the sound bar connected with Player, change the AUDIO DIGITAL OUT output sound of the...

  • Page 33: Appendix

    The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners. Manufactured under license from Dolby Laboratories.

  • Page 34: Specifications

    Appendix Specifications General 22 W Power consumption Networked standby : 0.5 W (If all network ports are activated.) y Model : DA-38A25 y Manufacturer : Asian Power Devices Inc. AC adapter y Input : 100 - 240 V ~ 50 - 60 Hz 1.2 A y Output : 25 V 0 1.52 A Approx.
  • Page 35 Appendix Wireless subwoofer Power requirements 120 V ~ 60 Hz Power consumption 33 W Type 1 Way 1 Speaker Impedance 3 Ω Rated Input Power 200 W Max. Input Power 400 W Approx. Dimensions (W x H x D) 171 mm x 320 mm x 252mm (6.7 inch x 12.6 inch x 9.9 inch) Net Weight Approx.

  • Page 36: Maintenance

    Appendix Maintenance Handling the unit When shipping the unit Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory. Keeping the exterior surfaces clean y Do not use volatile liquids such as insecticide spray near the unit.
  • Page 38 LG Customer Information Center 1-800-243-0000 USA, Consumer 1-888-865-3026 USA, Commercial Register your product Online! www.lg.com...
