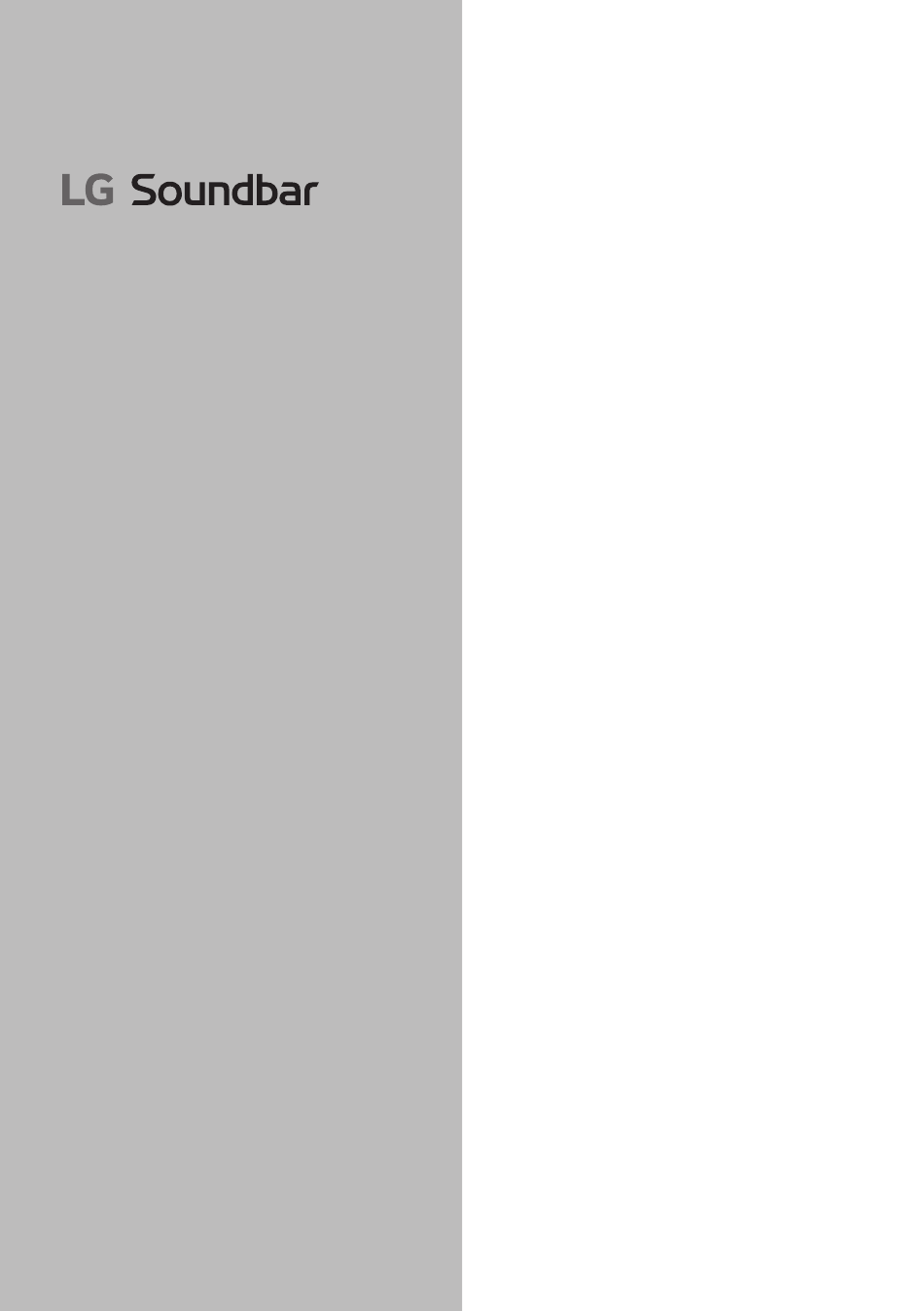

- Page 1 Wireless Soundbar Owner’s Manual Please read this manual carefully before operating your set and retain it for future reference. SH5A (SH5A, SPA5-P) www.lg.com Copyright © 2025 LG Electronics Inc. 2411_Rev01 All Rights Reserved.
- Page 2 Soundbar Quick Guide Installing and using the Product a Connect the soundbar to your TV via an optical cable or an HDMI cable. HDMI IN HDMI IN OPTICAL (ARC) OPTICAL WOOFER 3 HDMI d TV 5 V 0 500 mA (ARC) HDMI OUT A Soundbar...
- Page 3 A Install the LG ThinQ app on Google Play or the App Store. B Run the LG ThinQ app and follow the instructions. C The product will connect to your smartphone and you can control the product with LG ThinQ app.
- Page 4 27 Connecting with an Optical Cable Using the Product as an Audio System 28 Connecting via Bluetooth Connecting to a USB Storage Device 33 Connecting with the product via LG ThinQ 33 Installing the LG ThinQ app and registering the product...
- Page 5 Installation Installing the soundbar Place the soundbar in front of the TV. When you install the soundbar, do not block the remote control receiver of the TV. A Remote Control Receiver B If the soundbar covers the remote control receiver of the TV, please separate distance between the soundbar and TV by 10 ~ 15 cm or more.
- Page 6 Connecting the Product You can enjoy a richer sound by connecting the soundbar to the subwoofer. Connecting the subwoofer After completing installation, the subwoofer will be connected to the soundbar. Connect the soundbar to the subwoofer in the following order. a Plug the cable connected to the subwoofer to the product.
- Page 7 Setting up surround sound The surround sound function allows you to hear immersive 3D sound produced by multiple audio channels from the speakers, regardless of the channels in the originally recorded content. For example, if you listen to music recorded in 2.0 channels with standard sound effects, you can hear the following difference.
- Page 8 Turning surround sound on/off a Press Settings button. The product enters the setting mode and you can see “OFF-AUTO POWER” or “ON-AUTO POWER”. OFF-AUTO POWER b While the “OFF-AUTO POWER” or “ON-AUTO POWER” is scrolling in the status display, press Left/Right button to select the surround sound setting.
- Page 9 Speaker sound based on input channels Sound Effects Input Output AI SOUND PRO Sound customised with artificial intelligence 2.0 channels 5.1 channels STANDARD You can enjoy optimised sound 2.0 channels 5.1 channels CINEMA Cinematic 3D sound 2.0 channels 5.1 channels CLEAR VOICE PRO Improves the clarity of voices 2.0 channels...
- Page 10 Sound Effects Input Output SPORTS Realistic sound like in a stadium 2.0 channels 5.1 channels MUSIC You can enjoy better sound optimised for music 2.0 channels 5.1 channels GAME Optimised sound for game 2.0 channels 5.1 channels BASS BLAST (BASS BLAST+) Sound with reinforced bass 2.0 channels 5.1 channels...
- Page 11 Adjusts the sound volume. Function Press the button repeatedly to select the desired function or input mode. • OPT/HDMI ARC: Connects the product to a TV that supports an optical cable, ARC or LG Sound Sync • BT: Connects the product via Bluetooth • USB: Connects the product to a USB storage device...
- Page 12 Back WOOFER 3 Ω Plug in a cable to connect the subwoofer to the product. HDMI™ d TV (ARC) Plug in an HDMI cable to connect the TV to the product. OPTICAL IN Plug in an optical cable to connect the TV to the product. USB port Plug in a USB storage device to play music with the product.
- Page 13 Exploring Remote Control You can use the remote to control all functions of the product, from turning the power on/off to enabling cinematic sound. Replacement of Battery Use AA 1.5V batteries. Replace the two batteries by inserting them into the remote control in accordance with the directions indicated.
- Page 14 d Sound Effects Press the button to select the desired sound field. • AI SOUND PRO: Artificial intelligence selects the optimal sound settings to suit your content. • STANDARD: You can enjoy optimised sound. • CINEMA: Play content with 3D sound similar to a movie theater. • CLEAR VOICE PRO: Improves the clarity of voices.
- Page 15 f Mute This turns off the sound from the product. g Function Press the button repeatedly to select the desired input mode or function. h Information View the connected input source or Bluetooth information. • OPT/ARC: Current sound source • BT: Connected Bluetooth device name • USB: Current sound filename i Up/Down/Left/Right These buttons are used to adjust the settings of the convenient functions.
- Page 16 k Settings It allows you to adjust the settings of this product: AUTO POWER, SURROUND, NIGHT TIME, DISPLAY. Press Settings button and select the setting by using Left/Right button before you press the Up/Down button to turn on/off the setting. • AUTO POWER: When the TV or an external device is turned on or off, the product will also turn on or off automatically.
- Page 17 Using Auto Power This function automatically turns the product on or off when the TV or external device is turned on or off. When the connected device is turned on, the product turns on automatically and selects a function according to the input signal. Activating/Deactivating the Auto Power function a Press Settings button.
- Page 18 Using Night Time This reduces the general sound volume, but raises the volume of soft and delicate sounds. This is useful when enjoying music or a movie late at night. Activating/Deactivating the Night Time function a Press Settings button. The product enters the setting mode and you can see “OFF-AUTO POWER”...
- Page 19 Using Display The status display can be controlled as auto, on, and off. Option Status display AUTO Dimmed after 20 seconds of button input. Always on Turned off after 20 seconds of button input. Activating/Deactivating the Display function a Press Settings button.
- Page 20 Connecting to the TV Connecting with an Optical Cable Transmit your TV’s audio to the product by connecting it to the TV with an optical cable. You can add a variety of 3D effects to the original audio to fill the room with a deep, rich sound. Watching TV after connecting with an optical cable a If the digital cable terminal has a cover, first remove the covers from both ends.
- Page 21 • You can still use the product’s remote control even after connecting it to an LG TV. • To use LG Sound Sync, you may have to change the sound setting of your TV. It may vary depending on the TV.
- Page 22 Press the Settings button on the TV remote control and enter the [Speaker] menu to set the output speaker to [Bluetooth]. c Find and select “LG SH5A(XX)”. d When the product is connected to the TV via Bluetooth, you can see the status display change from “PAIRED”...
- Page 23 Connecting with an HDMI Cable You can transmit TV audio to the product by connecting the TV to the product with an HDMI cable. Add a variety of 3D effects to the original audio to fill the room with a deep, rich sound. Watching TV after connecting with an HDMI cable a Using the HDMI cable, connect the HDMI™...
- Page 24 - Functions controllable with a SIMPLINK-compatible LG TV remote control: Power on/off, volume control, mute on/off, etc. • For more information on how to set up SIMPLINK, consult your LG TV’s user manual. Note • The SIMPLINK function may not work properly depending on the status of the product or other connected devices.
- Page 25 Connecting to an External Device Connecting with an HDMI Cable Connect the TV and external device (game console, DVD player, etc.) with an HDMI cable and enjoy a deep and rich sound. Connecting an external device via HDMI a Connect an external device such as a Set-top box, DVD or Blu-ray player. Following the picture below, connect the HDMI OUT terminal of the device to the HDMI IN terminal on the TV.
- Page 26 Note • Please check the audio output settings in the Settings menu of your external device (ex. Blu-ray player or TV). The audio output should be set to [No encoding], [Bitstream], [Auto], or [Pass through]. For more information on how to set the output, please refer to your external device’s user manual. • Use a certified cable with the HDMI logo.
- Page 27 Connecting with an Optical Cable Connect the TV and external device (game console, DVD player, etc.) with an optical cable and enjoy a deep and rich sound. Connecting an external device via optical cable a Use the optical cable to connect the OPTICAL IN terminal on the back of the product to the OPTICAL OUT terminal of your external device (ex.
- Page 28 Using the Product as an Audio System Connecting via Bluetooth You can play music files stored on a Bluetooth device, or run music apps to enjoy the music with this product. Please check the following first. • Bluetooth devices to be connected to the product should meet the following specifications. - Bluetooth 5.3 technology - Codec: SBC, AAC • Steps to connect the device to the product may vary depending on the Bluetooth device type...
- Page 29 (iPhone) d Turn on the Bluetooth function. ( Off > e You will see a list of connectable devices on your smartphone. Find and select “LG SH5A(XX)”. Bluetooth LG Smart Phone AVAILABLE DEVICES LG Smart Phone LG SH5A(XX) Bluetooth devices...
- Page 30 • When using Bluetooth, you should adjust the volume level to an appropriate level. • XX is the last 2 digits of the MAC address of the product. For example, if the MAC address is 9C:02:98:4A:F7:08, it will be displayed as “LG SH5A(08)”.
- Page 31 • USB devices with a large storage volume may take several minutes to browse through files. • LG Electronics is not responsible for any data loss. Please always back up the data on your USB storage device to minimise damage caused by data loss.
- Page 32 USB storage devices supported • MP3 player • Flash MP3 player • USB flash device • USB 2.0 This product may not recognise some USB storage devices. Playable file specifications File extension Sampling frequency / Bitrate 32 kHz - 48 kHz / 8 kbps - 320 kbps File extension Sampling frequency FLAC (16 bit/24 bit)
- Page 33 Go to the Google Play or the App Store on your smartphone and search for the LG ThinQ app to install it. b Run the LG ThinQ app and log in to the app with your account. If you don’t have an account, you can also create a new one.
- Page 34 Note • Please note that the QR code may not be available at the time of purchase. • The QR code attachment location may differ depending on the product. • Settings menu items may vary depending on the smartphone manufacturer and OS. • Google, Android and Google Play are trademarks of Google LLC.
- Page 35 Safety Precautions Safety and Regulatory CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 36 CAUTION concerning the Power Cord The Power Plug is the disconnecting device. In case of an emergency, the Power Plug must remain readily accessible. Check the specification page of this owner’s manual to be certain of the current requirements. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous.
- Page 37 For models using a battery This device is equipped with a portable battery or accumulator. CAUTION: Risk of fire or explosion if the battery is replaced by an incorrect type. For models using a built-in battery Do not store or transport at pressures lower than 11.6 kPa and at above 15,000 m altitude. • replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types), must be replaced with the same type battery by expert;...
- Page 38 Prevention of product misuse To prevent misuse of the product, please be sure to check the contents below. Precautions for installing the product • Do not install the product in an unstable or vibrating place, such as on a shaking shelf or inclined surface.
- Page 39 Precautions for using the product • Do not lift or move the product while it is operating. - Otherwise, it may cause a breakdown. • When moving the product, pull out the power cord and all cables connected to the product. - Otherwise, it may cause a fire or electric shock.
- Page 40 - Otherwise, it may cause a fire. • In the case of a product with a power cord or AC adapter, use only genuine power cords and AC adapters provided by LG Electronics. - Otherwise, it may cause a fire or electric shock.
- Page 41 The following only applies to models with a remote control • Do not let children use the remote control. Keep the remote control out of reach of toddlers. • Do not let children put the remote control in their mouth. Make sure that children don’t swallow the remote control cover or a battery.
- Page 42 Before Reporting Product Malfunction Troubleshooting If you experience the following issues while using the product, please perform several checks, as they may not be malfunctions. General Errors Issue Solution The product • Unplug the power cables and any external devices such as your TV, subwoofer, or does not work amplifier from the product, then plug them in again.
- Page 43 • Check the following and change the settings accordingly. volume is low - Run the LG ThinQ app, tap the [Sound settings] on the first screen, and change the [DRC] function to [Off] on the [Sound output] menu. - When the product is connected to a TV, press the Settings button on the TV remote control, select the [Speaker] menu, and change the [Digital Sound Output] setting from [PCM] to [AUTO] or [BITSTREAM].
- Page 44 Problems in Wireless Connection Issue Solution The Bluetooth • Do you hear noise or experience malfunctions when using Bluetooth? connection - Do not let any part of your body contact the transceiver of the Bluetooth is causing a device or the product. malfunction or - Do not install the Bluetooth device on a wall or in a secluded spot.
- Page 45 Appendix Specifications General Power Requirement Refer to the main label. Power Consumption Refer to the main label. Dimensions (W x H x D) Approx. 990.0 mm x 97.0 mm x 125.0 mm (including the base) Operation Temperature Range 5 °C - 40 °C Operation Humidity Range 5 % - 80 % RH Bus Power Supply (USB)
- Page 46 Subwoofer Type 1-way 1 speaker Impedance 3 Ω Rated power 200 W RMS Max. Power 400 W RMS Dimensions (W x H x D) Approx. 191.0 mm x 386.0 mm x 318.0 mm (including the base) • Design and specifications are subject to change without notice.
- Page 47 Bluetooth SIG, Inc. and ® any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
- Page 48 LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
- Page 49 Handling the Product When shipping the Product Please save the original shipping carton and packing materials. If you need to ship the product, for maximum protection, re-pack the product as it was originally packed at the factory. Keeping the exterior surfaces clean • Do not use volatile liquids such as insecticide spray near the product.
