Askia Kameleon K6 Assembly Instructions Manual

Glass - solid back
Hide thumbs Also See for Kameleon K6:

Advertisement

Quick Links

Download this manual
K6
Glass - Solid Back
Kameleon

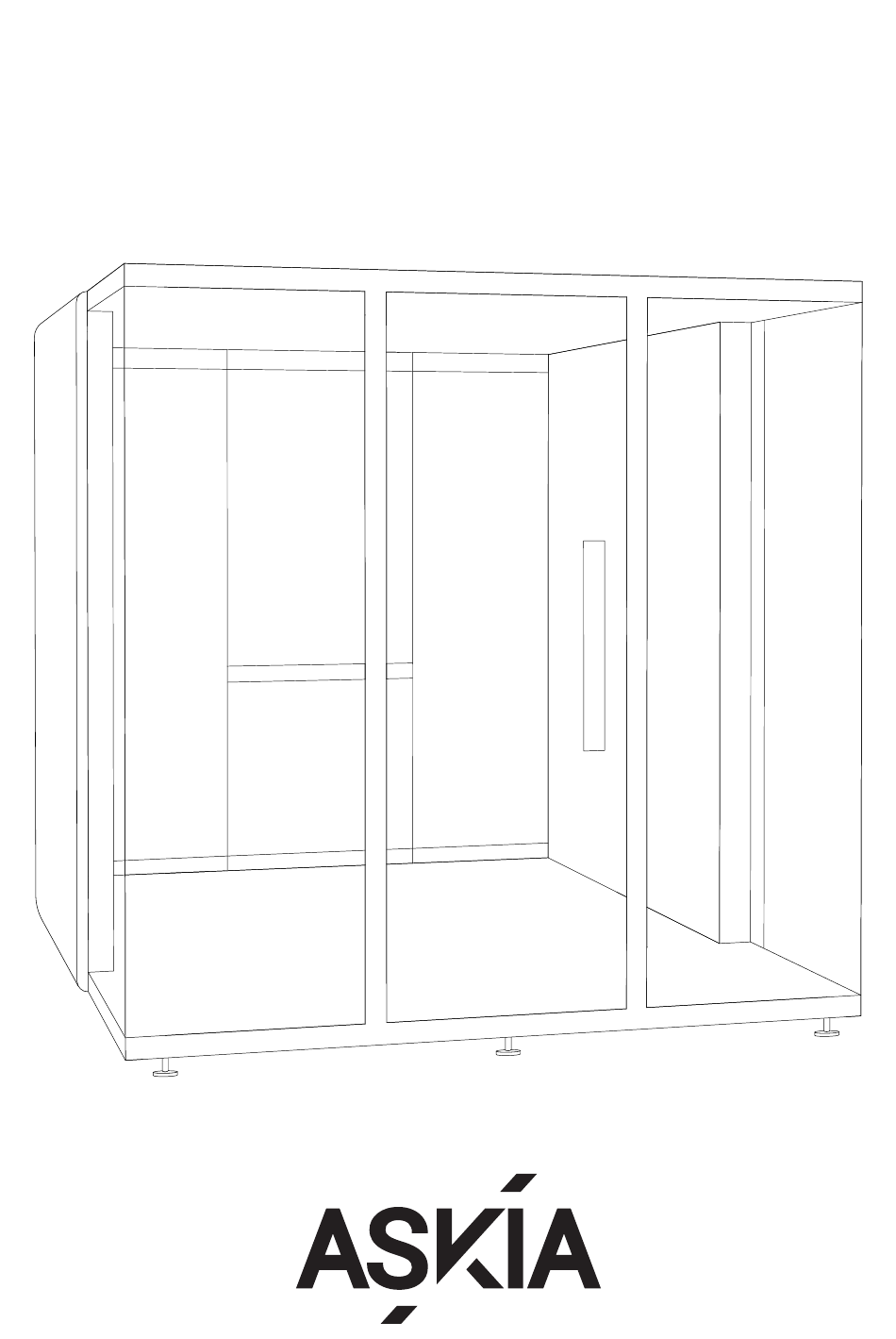

ASSEMBLY INSTRUCTIONS
ACOUSTIC PODS

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kameleon K6 and is the answer not in the manual?

Questions and answers

Related Manuals for Askia Kameleon K6

Summary of Contents for Askia Kameleon K6

  • Page 1 Glass - Solid Back Kameleon ASSEMBLY INSTRUCTIONS ACOUSTIC PODS...
  • Page 2 Info. ASSEMBLY INSTRUCTIONS Steps. Main Ethernet coupling. Pay attention to. Bag with screws. Main Power supply. Unlocked. Pay attention to. Lock. Ventilation coupling. Level check. Power coupling. Allen key needed. Allen key and screws needed. Don’t. Ethernet coupling. T-Handle hex key needed. Pay attention not T-Handle hex key and screws needed.
  • Page 3 Assembly in 225 min. with 3 people Included x1 Allen Key 2 x1 Allen Key 3 x1 T-Handle Hex Key 4 x1 T-Handle Hex Key 5 x1 T-Handle Hex Key 7 x1 Ceiling Panels Adjuster x2 Sucction cups...
  • Page 4 Elements x2 Middle x2 Back Structure Panels x1 Middle Structure Panel x2 Exterior Back x1 Exterior Middle x2 Back Panels Back Panels Panels Panel x4 Interior Panels x2 Left & x2 Right Structure Panels x1 Left & x1 Right Glass Panels x4 Exterior Panels x1 Left &...
  • Page 5 Elements x2 Ceiling Coupling connection x3 Ceiling x1 Left Coupling connection, x1 Left (with two sets of cables) x9 Acoustic Felt Ceiling Panels & x2 Right Coupling connections x9 Carpet, x6 Dividers x2 Media adjuster x3 Floor x1 Door Handle x2 Floor Coupling connection...
  • Page 6 T-Handle Hex Key 4...
  • Page 7 x16 with T-Handle Hex Key 4...
  • Page 8 Bottom x8 with T-Handle Hex Key 4 Bottom...
  • Page 9 T-Handle Hex Key 7 Bottom Inside Outside...
  • Page 10 T-Handle Hex Key 4 T-Handle Hex Key 7 Inside...
  • Page 11 x16 with T-Handle Hex Key 4 T-Handle Hex Key 7 Inside Outside...
  • Page 12 Bottom x8 with T-Handle Hex Key 4 Bottom...
  • Page 13 Bottom T-Handle Hex Key 7 Bottom Inside Outside...
  • Page 14 T-Handle Hex Key 4 T-Handle Hex Key 7 Inside...
  • Page 15 x20 with T-Handle Hex Key 4 T-Handle Hex Key 7 Sucction cup handles Inside...
  • Page 16 Recommendation It is recommended to start with the Middle Structural Panel. T-Handle Hex Key 7 Sucction cup handles Inside...
  • Page 17 T-Handle Hex Key 7 Sucction cup handles Inside Outside...
  • Page 18 x8 with T-Handle Hex Key 4...
  • Page 19 Recommendation It is recommended to start with the Door Frame. Sucction cup handles The door opening can be oriented Left or Right just by rotating the frame.
  • Page 20 x6 with T-Handle Hex Key 4 x2 with Allen Key 3 Exterior Interior Exterior Interior...
  • Page 21 Pay attention not to break the glass door. Adjust the glass door if Check if the glass door necessary. hits the frame edge before closing it. Allen Key 3 Allen Key 2 Bottom To adjust the glass door the height must be calibrated.
  • Page 22 T-Handle Hex Key 7 Sucction cup handles Inside...
  • Page 23 Orange Black Main Power & Ethernet supply at the back of the pod. Check if the lighting, ventilation and power sockets are connected properly.
  • Page 24 How to remove the Interior Panel.
  • Page 25 How to remove the Interior Panel.
  • Page 26 Ceiling Panels Adjuster How to place the Acoustic Felt Ceiling Panels. How to remove or adjust the Acoustic Felt Ceiling Panels.
  • Page 28 If you want to reposition the pod, you have to remove the If you are satisfied with the pod’s carpet, if needed, and unlock the legs. When you are satisfied position, you can place the carpets. with the pod’s position, lock the legs and place the carpets.
  • Page 29 Adjustable FAN and LED 100%...
  • Page 30 Scan You can watch an instructional video of the K4 assembly process. Thanks to the modular design and limited number of components used for each pod, many steps are similar between different Kameleon pods. Optional VESA Adapter Coat Hanger Exterior Hanging Interior Hanging Whiteboard or Pinboard Whiteboard or Pinboard...
  • Page 31 Eliade Tower, Mircea Eliade No.18 RO-Bucharest, 012015 T +40 212 121 381 contact@askiafurniture.ro www.askiafurniture.ro Last update: 06.02.2023...
