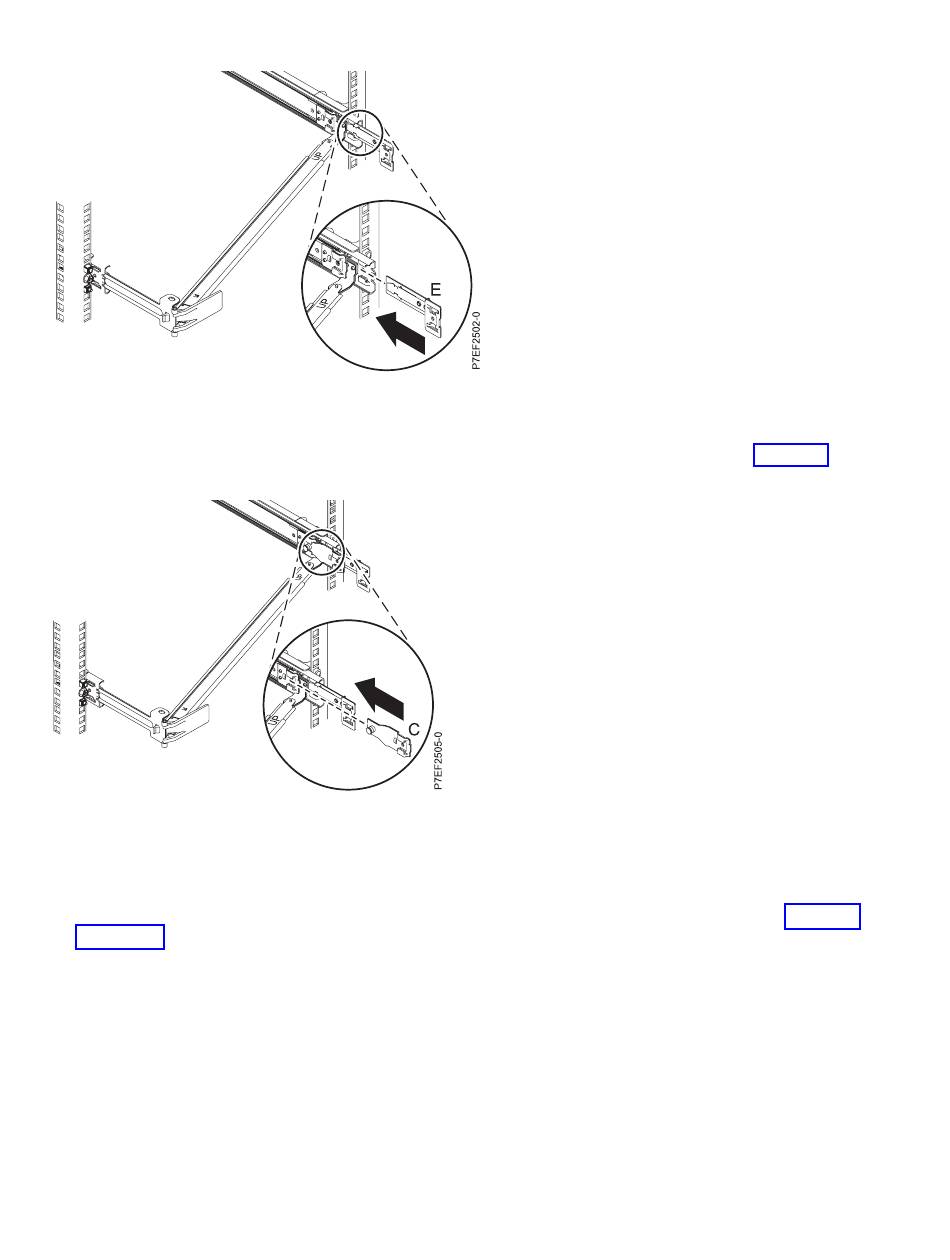

Figure 15. Installing the extension bracket into the slide rail
5. Attach the mounting bracket (C) to the slot on the inside of the right slide by sliding the mounting
bracket (C) into the slide rail until the spring-loaded pin snaps into place, as shown in Figure 16.
Figure 16. Installing the mounting bracket into the slide rail
6. Place the cable-management arm (D) on the support arm (A). Slide the first cable-management arm
tab (1) into the slot on the mounting bracket (C). Push the tab until the spring-loaded latch snaps into
place. Slide the other cable-management arm tab into the extension bracket (E) on the outside of the
right slide rail (2). Push the tab until the spring-loaded latch snaps into place, as shown in Figure 17
on page 13.
12
