support arm, as shown in Figure 13.

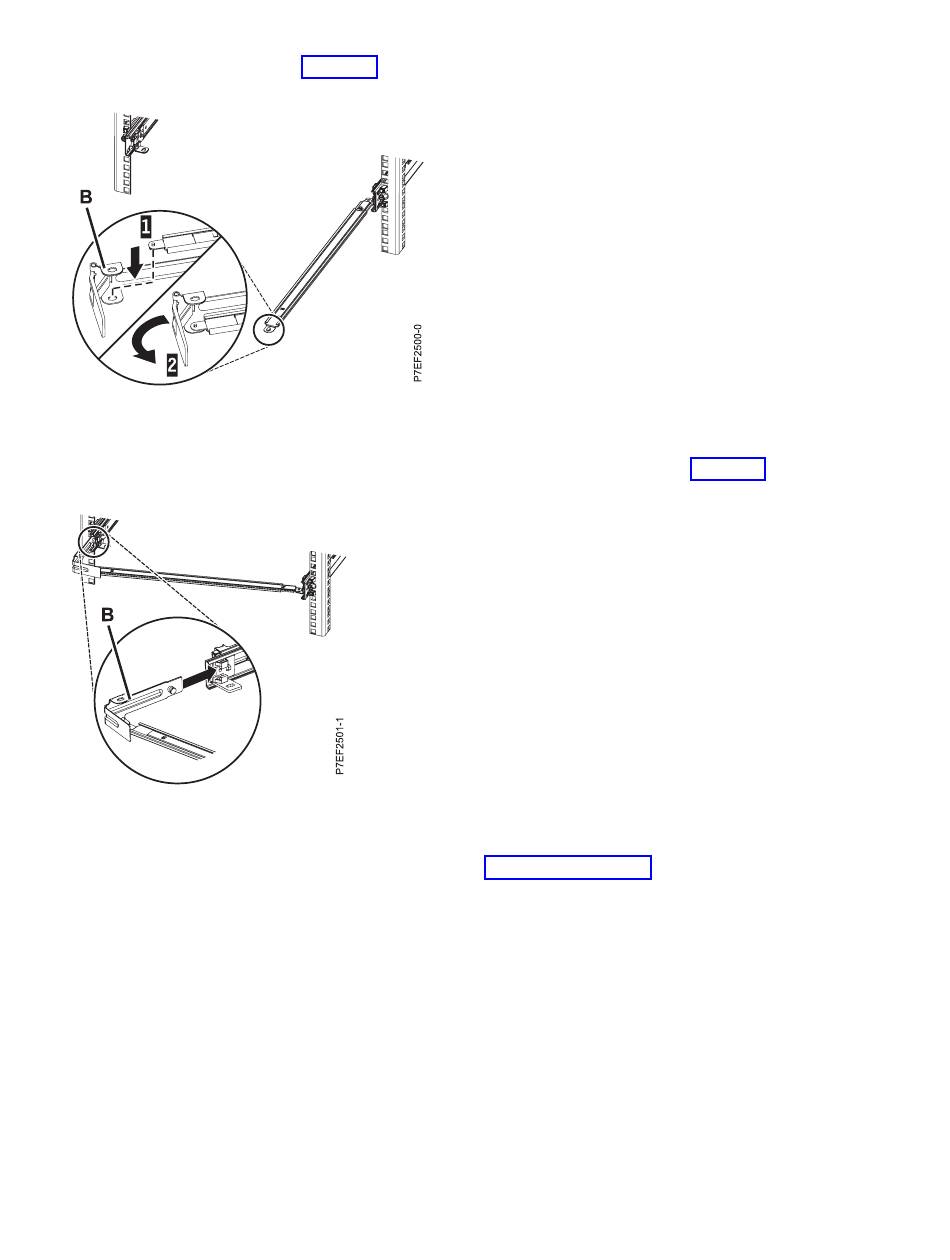

Figure 13. Securing the cable-management stop bracket to the support arm
3. To attach the other side of the support arm to the backside of the slide rail, slide the bracket (B) into
the left slide rail until the spring-loaded latch snaps into place, as shown in Figure 14.
Figure 14. Extending the pin and installing the bracket into the slide rail
4. Slide the extension bracket (E) into the right slide rail. Push the bracket into the slide rail until the
spring-loaded latch snaps into place, as shown in Figure 15 on page 12.
Installing the server into a rack
11
