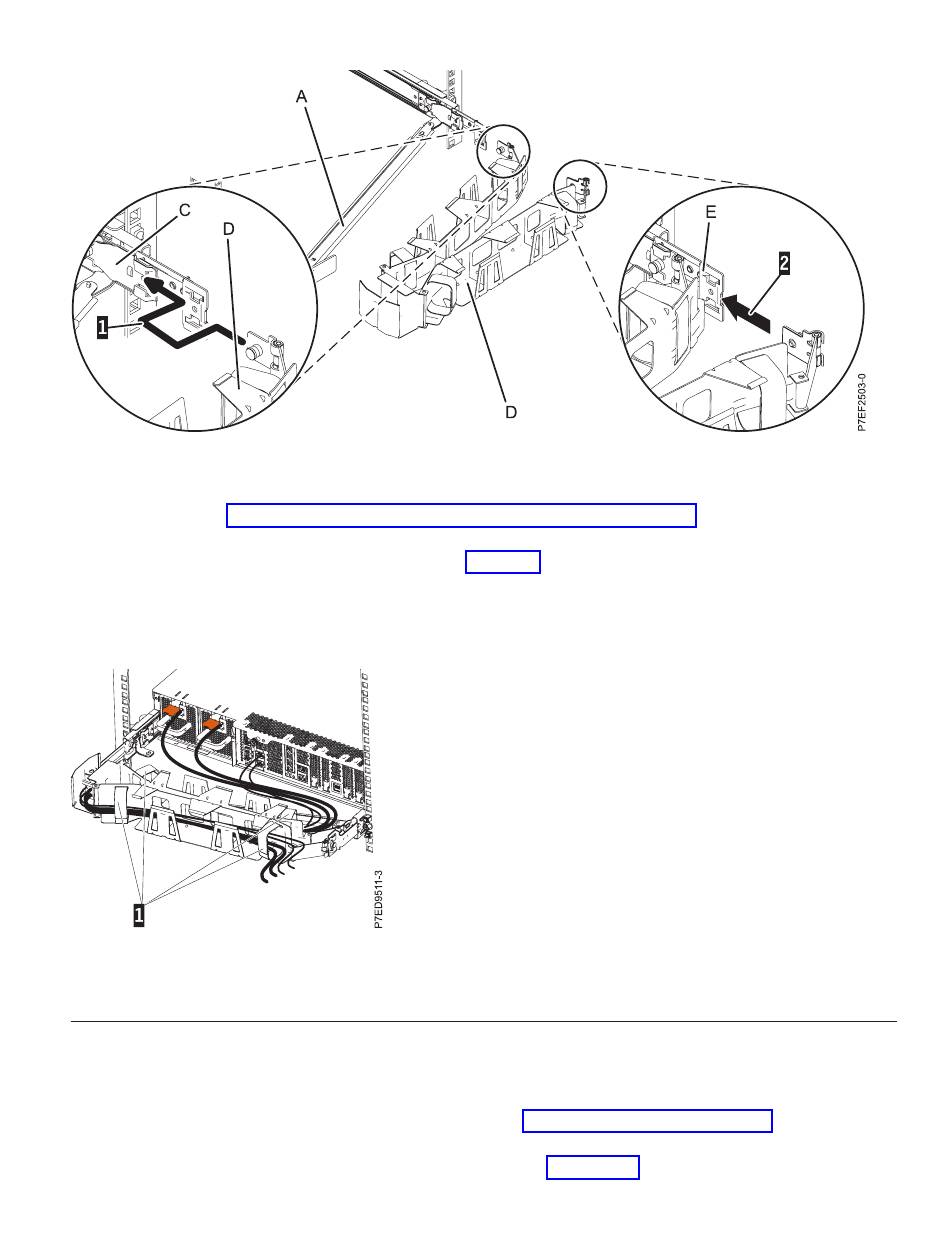

Figure 17. Connecting the cable-management arm
7. Choose an available console, interface, or terminal for installation, and cable the server. For more
information, see "Cabling the server and setting up the console" on page 15.
8. Route the power cords and other cables (including keyboard, monitor, and mouse cables, if required)
on the cable-management arm (1), as shown in Figure 18. Attach all cables to the rear of the server
except for the power cord. Secure the cord and cables with cable ties or hook-and-loop fasteners.
Note: Allow slack in all cables to avoid tension in the cables when the cable-management arm moves.
Figure 18. Routing and attaching the power cord
9. Slide the server into the rack until it snaps into place.

Connecting the expansion units, disk drives, and PCI adapters

Use this information to learn about connecting and configuring expansion units, and disk drives to
system units.
1. For information about connecting expansion units, see Enclosures and expansion units
(http://publib.boulder.ibm.com/infocenter/systems/scope/hw/topic/p7ham/expansionunit.htm).
2. For information about connecting the disk drive unit, see Disk drives (http://
publib.boulder.ibm.com/infocenter/systems/scope/hw/topic/p7hall/p7halkickoff.htm).
Installing the server into a rack
13
