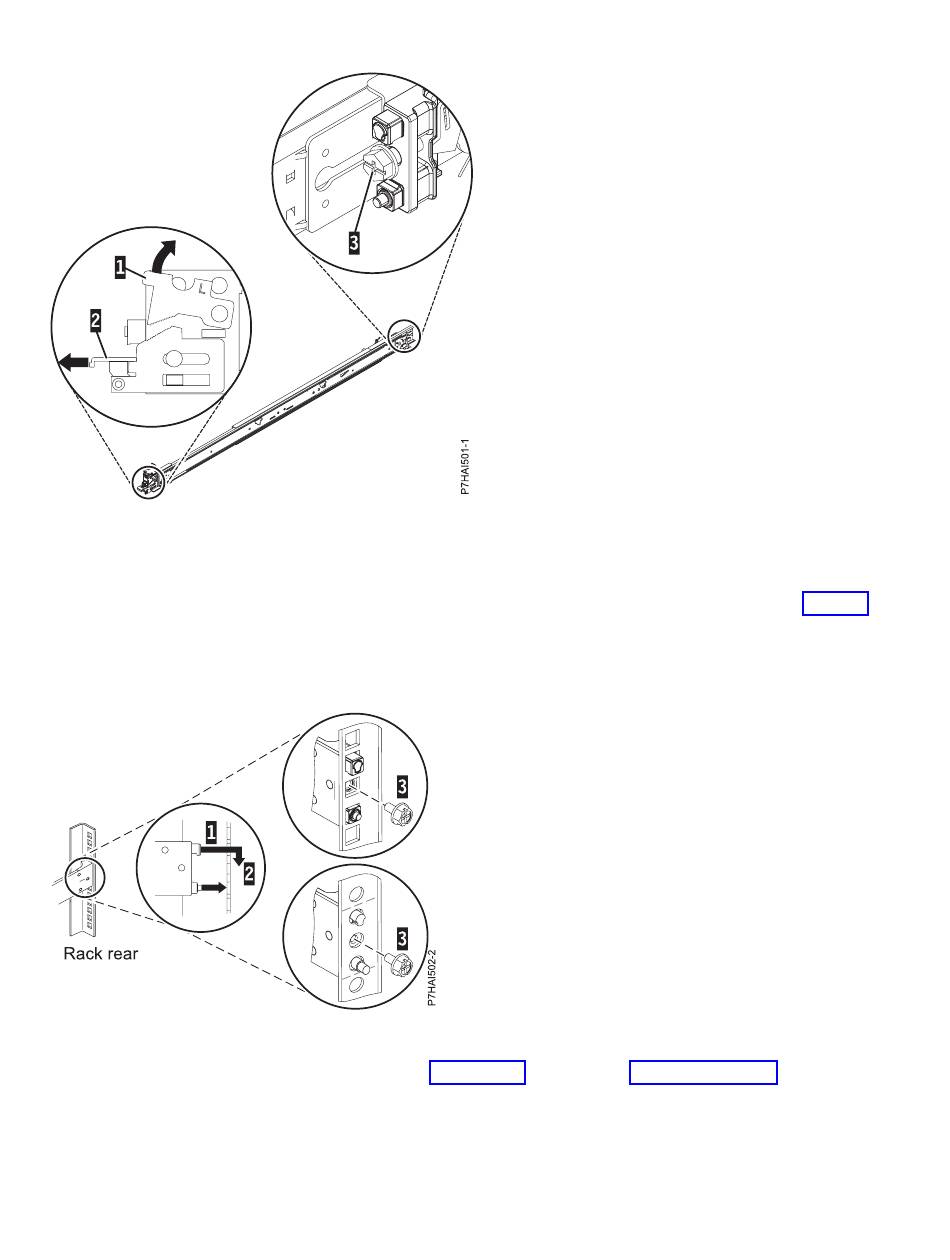

Figure 3. Opening the front latch and removing the rear screw
3. Align the two pins on the rear of the slide rail with the top and bottom holes within the selected U
that were previously marked. Pull the slide rail toward you to insert the two pins into the rack holes
(1), and lower the slide rail down (2) to engage the hook feature on the top pin, as shown in Figure 4.
Ensure the two pins protrude through the rack holes before proceeding to the next step.
Note: The pin fixtures of the slide rails support either round-hole or square-hole rack models.
Figure 4. Aligning and engaging the pins into the holes in the rear of the rack
4. Reinstall the screw that was removed in step 2 on page 5, as shown in Figure 5 on page 7.
6
Installing the IBM PowerLinux 7R2 (8246-L2D or 8246-L2T)
