IBM PowerLinux 7R2 Installing page 19

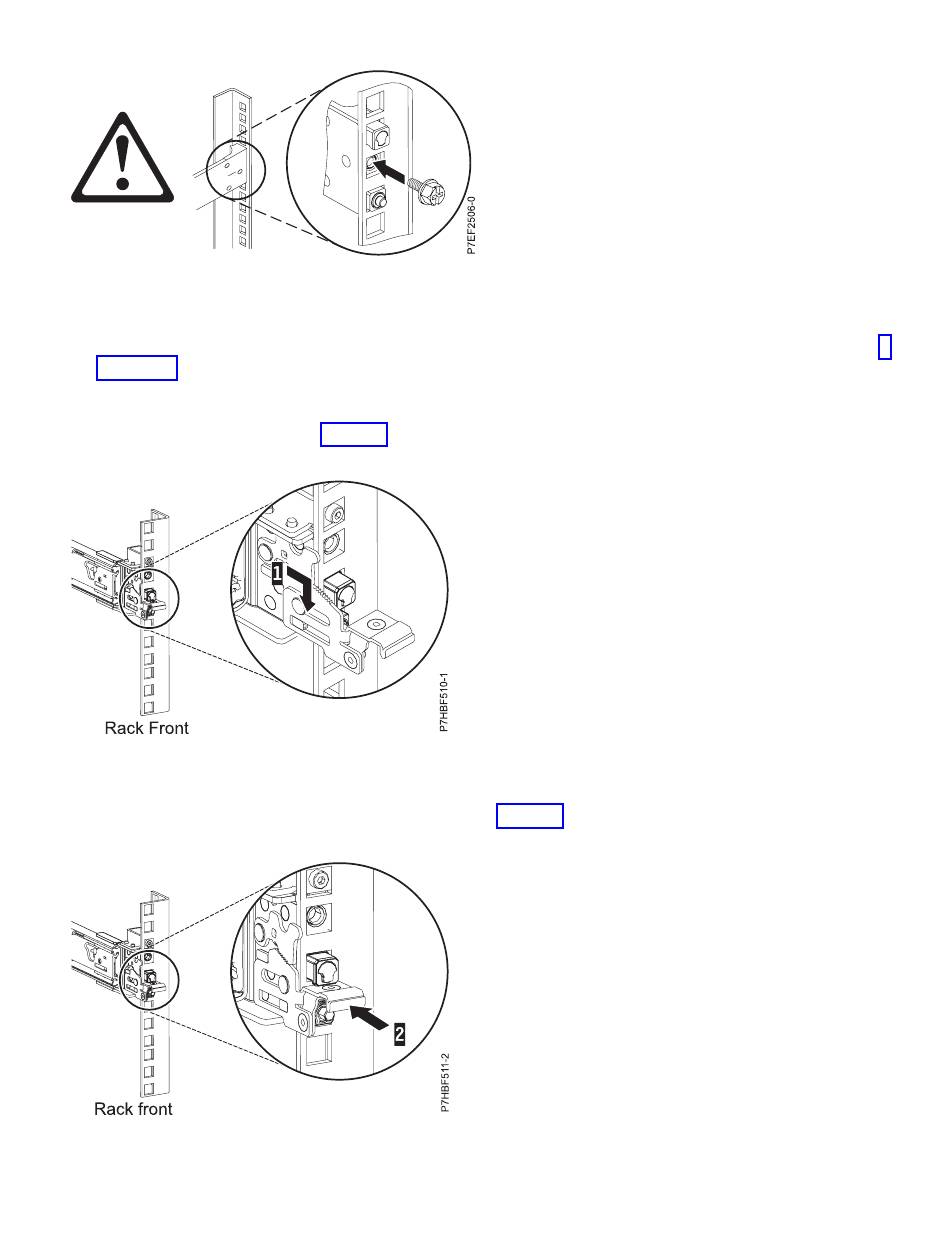

Figure 5. Reinstalling the screw
Attention: You must install the screw to secure the device.
5. Return to the front of the rack. Ensure the latch is still open on the front of the slide rail. Refer, step 1
on page 5.
6. Pull the slide rail forward and insert three pins on the front of the rail into the holes within the
selected U that were previously marked. Lower the slide rail down (1) to engage the hook feature on
the middle pin, as shown in Figure 6.
Figure 6. Rack front rail with pins seated
7. While pulling the slide rail forward, ensure that all three pins protrude through the rack holes, then
push the front latch (2) all the way in, as shown in Figure 7.
Figure 7. Rack front rail with latch seated
Note: If you need to reposition the rail, release the front latch (2), and while pressing the blue pin at
the bottom, push the rail toward the rear to release from the rack.
Installing the server into a rack
7
