Summary of Contents for LTS PTZIP741X20

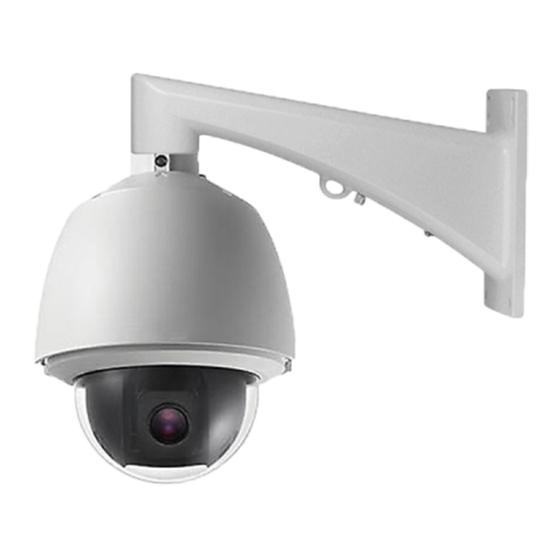

- Page 1 High-Definition Network Speed Dome Installation Manual...
- Page 2 Installation Manual of High-Definition Network Speed Dome Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact the dealer. This manual is applicable to High-Definition Network Speed Dome. This manual may contain several technically inaccurate points or printing errors, and the content is subject to change without notice.
- Page 3 Installation Manual of High-Definition Network Speed Dome Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 4 Installation Manual of High-Definition Network Speed Dome Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Warnings and Cautions: Warnings: Neglecting any of the warnings may cause serious injury or death. Cautions: Neglecting any of the cautions may cause injury or equipment damage.
- Page 5 Installation Manual of High-Definition Network Speed Dome same time. Please use the provided glove when open up the dome cover, avoid direct contact with the dome cover, because the acidic sweat of the fingers may erode the surface coating of the dome cover.
- Page 6 Installation Manual of High-Definition Network Speed Dome Preparation for Installation Basic requirements. All the electronic operation should be strictly compliance with the electrical safety regulations, fire prevention regulations and other related regulations in your local region. Check whether all the accessories are included and make sure that the installation place and mode conform to the demands.
-
Page 7: Table Of Contents
Installation Manual of High-Definition Network Speed Dome Table of Contents Chapter 1 Installation............................7 Installation and Cabling ............................7 1.1.1 Installing the Speed Dome ..........................7 1.1.2 Connecting the Cables ........................... 12 DIP Switch Settings ............................. 13 1.2.1 Address Settings ............................. 13 1.2.2 Baudrate Settings ............................ -
Page 8: Chapter 1 Installation
Installation Manual of High-Definition Network Speed Dome Chapter 1 Installation Before you start: Check the package contents and make sure that the device in the package is in good condition and all the assembly parts are included. 1.1 Installation and Cabling 1.1.1 Installing the Speed Dome There are several ways to install the speed dome. - Page 9 Installation Manual of High-Definition Network Speed Dome Protective sticker protective foam Figure 1-2 Disassemble the Speed Dome 6. Drill four M8 screw holes on the wall according to the screw holes of the wall mount. 7. Secure the wall mount to the wall with screws. Notes: ...
- Page 10 Installation Manual of High-Definition Network Speed Dome Figure 1-3 Install the Wall Mount 8. Wrap the thread part with the thread tape and rotate the pendant adapter to the wall mount. 9. Secure the pendant adapter to the wall mount with a set screw (supplied) as shown in Figure 1-5.
- Page 11 Installation Manual of High-Definition Network Speed Dome ② ① Figure 1-5 Install the Pendant Adapter 10. Hook the two ends of the safety rope to the back box of the speed dome and the wall mount respectively. Route the cables through the mount. 11.
- Page 12 Installation Manual of High-Definition Network Speed Dome ② ① ③ ④ Figure 1-7 Align the Labels 13. Rotate the back box counterclockwise or clockwise tightly. Secure the back box and the pendant adapter with the two lock screws. ⑤ Figure 1-8 Tighten the Lock Screws...
-
Page 13: Connecting The Cables
Installation Manual of High-Definition Network Speed Dome 1.1.2 Connecting the Cables Before you start: Please make sure to turn off the power of the dome before connect the cables. The cable interfaces of analog speed dome and network speed dome are shown in Figure 1-9 and Figure 1-10. -
Page 14: Dip Switch Settings
Installation Manual of High-Definition Network Speed Dome 1.2 DIP Switch Settings Note: This section is only for analog speed dome. The DIP switch is used for setting the address and baud rate for the speed dome, with value ON=1 and OFF=0, as shown in Figure 1-11. The SW1 switches from the first to the eighth are used to set the address. -
Page 15: Baudrate Settings
Installation Manual of High-Definition Network Speed Dome OFF ON OFF OFF OFF OFF ON ON OFF OFF OFF ON OFF OFF OFF OFF OFF OFF ON OFF OFF OFF OFF ON OFF OFF OFF ON OFF ON OFF OFF ON OFF ON OFF OFF OFF OFF ON OFF OFF... -
Page 16: Chapter 2 Mount Dimension
Installation Manual of High-Definition Network Speed Dome Chapter 2 Mount Dimension 2.1 Long-arm Wall Mount Figure 2-1 Long-arm Wall Mount 2.2 Short-arm Wall Mount... -
Page 17: Corner Adapter
Installation Manual of High-Definition Network Speed Dome Figure 2-2 Short-arm Wall Mount 2.3 Corner Adapter Please use the wall mount with corner adapter according to your demand. Figure 2-3 Corner Adapter... -
Page 18: Pole Adapter
Installation Manual of High-Definition Network Speed Dome 2.4 Pole Adapter Please use the wall mount with pole adapter according to your demand. Figure 2-4 Pole Adapter... -
Page 19: Chapter 3 Mounting Applications
Installation Manual of High-Definition Network Speed Dome Chapter 3 Mounting Applications Before you start: For cement wall, you need to use the expansion screw to fix the mount. The mounting hole of the expansion pipe on the wall should align with the mounting hole on the mount. ... - Page 20 Installation Manual of High-Definition Network Speed Dome Wall mounting is applicable to the indoor/outdoor solid wall construction. The followings are the mandatory precondition for wall mounting: The wall must be thick enough to install the expansion screws. Please make sure that the wall is strong enough to withstand more than 8 times the weight of the dome and the mount.
-
Page 21: Corner Mounting Applications
Installation Manual of High-Definition Network Speed Dome 4. Install the speed dome to the mount. Please refer to Section 1.1 Installation and Cabling for installation details. Note: Follow the same instructions described above for the short-arm wall mounting. For outdoor applications, please adopt the water-proof measures. -
Page 22: Corner Mounting
Installation Manual of High-Definition Network Speed Dome Mounting Accessories Figure 3-7 Hex Screws (M8×30), Nuts, Spring Washers and Flat Washers 3.2.4 Corner Mounting Before you start: The corner mounting is applicable to the indoor/outdoor 90° solid corner construction. The followings are the mandatory precondition for corner mounting: ... - Page 23 Installation Manual of High-Definition Network Speed Dome Nuts and Washers Figure 3-8 Pull the Power Line Note: Make sure that the cables have enough length. For outdoor applications, please apply the sealant around the center hole for waterproof. 2. Attach the gasket then the wall mount to the corner adapter. 3.
-
Page 24: Pole Mounting Applications
Installation Manual of High-Definition Network Speed Dome 4. Install dome to the mount. Please refer to Section 1.1 Installation and Cabling for installation details. Note: Follow the same instructions described above for the short-arm wall mounting. For outdoor applications, please adopt the water-proof measures. The short-arm wall mount is not recommended for outdoor applications. -
Page 25: Pole Mounting
Installation Manual of High-Definition Network Speed Dome φ59-82mm, φ84-108mm, φ103-127mm, φ130-152mm, φ155-178mm, φ180-203mm, φ194-216mm; Customized dimensions can also be provided according to your requirement. Note: The dimensions of the pole mounting hoop must match with the diameter of the pole adapter. - Page 26 Installation Manual of High-Definition Network Speed Dome Figure 3-14 Assemble the Pole Adapter 2. Install the pole adapter. (1) Pull the control wire, video cable and power cable through the center hole. (2) Secure the three stainless steel hoops to the pole, and tighten the screws of the hoops with a screwdriver.
-
Page 27: In-Ceiling Mounting Applications
Installation Manual of High-Definition Network Speed Dome Figure 3-16 Install the Wall Mount 4. Install the speed dome to the mount. Please refer to Section 1.1 Installation and Cabling for installation details. Note: Follow the same instructions described above for the short-arm wall mounting. For outdoor applications, please adopt the water-proof measures. - Page 28 Installation Manual of High-Definition Network Speed Dome Foam Back Box Lower Dome Sticker Figure 3-17 Remove the Protective Accessory 5. Drill a hole on the ceiling according to the drill template (supplied). Note: 2mm of the diameter of the circle is tolerable. ±...
- Page 29 Installation Manual of High-Definition Network Speed Dome Lock Lock Figure 3-19 Locks and Lock Screws (2) Push the back box into the mounting hole in the ceiling (3) Tighten the lock screws with the screwdriver and the locks will automatically rotate outwards to secure the in-ceiling mount to the ceiling.
-
Page 30: Ceiling Mounting Applications
Installation Manual of High-Definition Network Speed Dome Figure 3-21 Install the Trim Ring 3.5 Ceiling Mounting Applications Before you start: The ceiling mounting is applicable to the indoor/outdoor solid ceiling construction. The followings are the mandatory precondition for ceiling mounting: ... -
Page 31: Ceiling Mounting
Installation Manual of High-Definition Network Speed Dome Figure 3-22 Cabling for Ceiling Mounting 3.5.2 Ceiling Mounting Steps: 1. Rotate the lower dome counterclockwise to separate it from the back box. Refer to the Figure 3-17. 2. Remove the protective lens cover, foam and sticker from the dome drive. 3. - Page 32 Installation Manual of High-Definition Network Speed Dome according to the hole locations, and then insert the cement screws into the holes and finally use self-tapping screws to secure the mounting base to the wall. Figure 3-24 Secure the Mounting Base 8.
- Page 33 Installation Manual of High-Definition Network Speed Dome Notes: Please remove the protective film on the lower dome after the installation is finished. Do not touch the bubble of the lower dome directly by hand. The image blurs otherwise.
-
Page 34: Appendix
Installation Manual of High-Definition Network Speed Dome Appendix Appendix 1 Lightning & Surge Protection This product adopts TVS plate lightning protection technology to avoid damage caused by pulse signal that is below 3000W, like instantaneous lighting stroke, surging, etc. According to the actual outdoor situation, necessary protection measures must be taken, besides ensuring the electrical safety. -
Page 35: Appendix 2 Rs485 Bus Connection
Installation Manual of High-Definition Network Speed Dome Appendix 2 RS485 Bus Connection General Property of RS485 Bus According to RS485 industry bus standard, RS485 is a half-duplex communication bus which has 120Ω characteristic impendence, the maximum load ability is 32 payloads (including controller device and controlled device). - Page 36 Installation Manual of High-Definition Network Speed Dome faraway. At this time, the dome will be uncontrollable, or self-running, etc. Controller Device Star Shape Connection Figure A-4 For such case, the best way is adding a RS485 distributor. This product can effectively change the star-shape connection to which satisfies the requirement of RS485 industry standard, in order to avoid those problems and improve the communication reliability.
- Page 37 Installation Manual of High-Definition Network Speed Dome Problem Possible Reasons To Solve the Problem dome can tightly. 2. RS485+ or RS485-wire is 2. Change a RS485 wire. controlled broken. but not 3. The speed dome is too far away 3. Add a terminal resistor. smoothly.
-
Page 38: Appendix 3 24Vac Wire Gauge & Transmission Distance
Installation Manual of High-Definition Network Speed Dome Appendix 3 24VAC Wire Gauge & Transmission Distance The following table describes the recommended max. distance adopted for the certain wire gauge when the loss rate of 24VAC voltage is less than 10%. For the AC driven device, the maximum voltage loss rate is 10% allowable. -
Page 39: Appendix 4 Wire Gauge Standards
Appendix 4 Wire Gauge Standards American Cross-sectional Bare Wire British Wire Wire Gauge Area of Bare Gauge(mm) Gauge SWG Wire(mm2) 0.750 0.4417 0.800 0.5027 0.900 0.6362 1.000 0.7854 1.250 1.2266 1.500 1.7663 2.000 3.1420 2.500 4.9080 3.000 7.0683...
