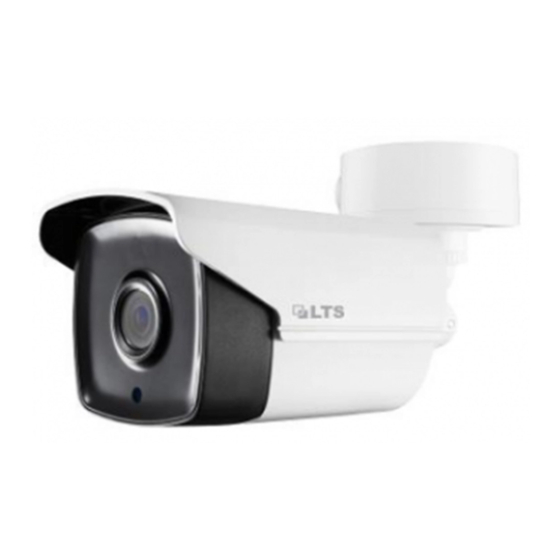

5MP Series Bullet & Dome
Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual may contain several technical mistakes or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or
update the products or procedures described in the
manual.
Advertisement
Table of Contents
Related Manuals for LTS 5MP Series
Summary of Contents for LTS 5MP Series
- Page 1 5MP Series Bullet & Dome Camera User Manual User Manual Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual may contain several technical mistakes or printing errors, and the content is subject to change without notice.
-
Page 2: Regulatory Information
Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. - Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
- Page 4 Keep the camera away from liquid while in use for non-water-proof device. While in delivery, the camera shall be packed in its original packing, or packing of the same texture. Mark Description Table 0-1 Mark Description Mark Description DC Voltage 1 Introduction 1.1 Product Features...
- Page 5 Note: Press and hold the switch button for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS. 1.2.4 Overview of Type IV Camera Black Liner Adjusting Screws IR Zoom module Switch Button Power Cord Bubble...
-
Page 6: Installation
2 Installation Before you start: Make sure that the device in the package is in good condition and all the assembly parts are included. Make sure that all the related equipment is power-off during the installation. Check the specification of the products for the ... - Page 7 not, adjust the camera according to the figure below. Pan Position [0° to 360°] Bracket Adjusting Screw Rotation Position Tilt Position [0° to 360°] [0° to 90°] Figure 2-3 3-Axis Adjustment 2.2 Ceiling/Wall Mounting of Type II Camera Before you start: The ceiling mounting and the wall mounting are similar.
- Page 8 1). Loosen the trim ring to adjust the pan position [0° to 360°]. 2). Loosen screw A to adjust the tilt position [0° to 180°]. 3). Loosen screw B to adjust the rotation position [0° to 360°]. 2.3 Ceiling Mounting of Type III Camera Before you start: The ceiling mounting and the wall mounting are similar.
- Page 9 Figure 2-9 Attach the Mounting Base 6. Connect the corresponding cables, such as power cord, and video cable. 7. Power on the camera to check whether the image on the monitor is gotten from the optimum angle. If not, loosen the tilt adjusting screw to adjust the angle.
- Page 10 Figure 2-12 Disassemble the Camera 2. Pry the bubble by anticlockwise rotate the screw driver and take off the black liner. Figure 2-13 Remove the Bubble and the Black Liner 3. Paste the drill template (supplied) to the place where you want to install the camera. 4.
- Page 11 2). Move the camera body up and down to adjust the tilt position [0° to 70°]. 3). Rotate the camera body to adjust the rotation position [0° to 350°]. 9. Put the black liner and bubble back to finish the installation.
-
Page 12: Menu Description
3 Menu Description Please follow the steps below to call the menu. Note: The actual display may vary with your camera model. Steps: 1. Connect the camera with the TVI DVR, and the monitor, shown as the figure 3-1. TVI DVR Camera Monitor Figure 3-1 Connection... - Page 13 2). Click Iris + to confirm the selection. 3). Click left/right direction button to adjust the value of the selected item. 3.1 VIDOE FORMAT You can set the video format to 5MP@20fps, 4MP@30fps, 4MP@25fps, 2MP@30fps, or 2MP@25fps. 3.2 EXPOSURE Exposure describes the brightness-related parameters, which can be adjusted by EXPOSURE MODE, SHUTTER and AGC.
- Page 14 B&W (Black and White) The image is black and white all the time, and the IR LIGHT turns on in the poor light conditions. You can turn on/off the IR LIGHT and set the value of SMART IR in this menu DAY/NIGHT B &...
-
Page 15: Video Settings
set the value from 1 to 9. The larger the value, the more sensitive the camera. 3.4 VIDEO SETTINGS Move the cursor to VIDEO SETTINGS and click Iris+ to enter the submenu. IMAGE MODE, WHITE BALANCE, BRIGHTNESS, CONTRAST, SHARPNESS, SARUTATION, DNR, and MIRROR are adjustable. -
Page 16: Factory Default
SATURATION Saturation is the proportion of pure chromatic color in the total color sensation. The saturation of a color is determined by a combination of light intensity and how much it is distributed across the spectrum of different wavelengths. DNR (Digital Noise Reduction) The DNR function can decrease the noise effect, especially when capturing moving images in poor light conditions and delivering more accurate and sharp...
