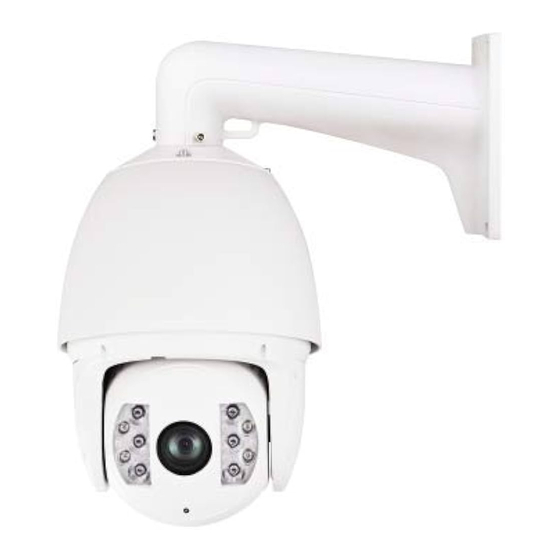

- Page 1 IR High-definition Network Speed Dome Installation Manual...
- Page 2 Installation Manual of IR High-Definition Network Speed Dome Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer. This manual applies to IR High-Definition Network Speed Dome. This manual may contain several technical or printing errors, and the content is subject to change without notice.
-
Page 3: Regulatory Information
Installation Manual of IR High-Definition Network Speed Dome Regulatory Information FCC Information compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 4: Safety Instruction
Installation Manual of IR High-Definition Network Speed Dome Safety Instruction These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss. The precaution measure is divided into ‘Warnings’ and ‘Cautions’: Warnings: Serious injury or death may be caused if any of these warnings are neglected. Cautions: Injury or equipment damage may be caused if any of these cautions are neglected. - Page 5 Installation Manual of IR High-Definition Network Speed Dome otherwise (which is not a malfunction however), and affecting the endurance of sensor at the same time. Please use the provided glove when open up the dome cover, avoid direct contact with the dome cover, because the acidic sweat of the fingers may erode the surface coating of the dome cover.
-
Page 6: Table Of Contents
Installation Manual of IR High-Definition Network Speed Dome Table of Contents Chapter 1 Installation............................6 Installation and Cabling ............................6 1.1.1 Installing the Speed Dome ..........................6 1.1.2 Connecting the Cables ............................. 9 Alarm Input and Output Connection ........................10 Power Cable Requirement .......................... -
Page 7: Chapter 1 Installation
Installation Manual of IR High-Definition Network Speed Dome Chapter 1 Installation Before you start: Check the package contents and make sure that the device in the package is in good condition and all the assembly parts are included. Note: Do not drag the waterproof cables as shown in Figure 1-1, otherwise the waterproof performance is affected. - Page 8 Installation Manual of IR High-Definition Network Speed Dome 2. Remove the cover on the back of the speed dome as shown in Figure 1-3. Insert the SD card to the SD card slot and install the cover back. SD CARD SD CARD SD Card Slot SD CARD...
- Page 9 Installation Manual of IR High-Definition Network Speed Dome Pendent adapter Figure 1-5 Pendent Adapter 4. Install the speed dome to the mount. 1) Hang the safety rope to the speed dome and the hook on the mount as shown in Figure 1-6.
-
Page 10: Connecting The Cables
Installation Manual of IR High-Definition Network Speed Dome Lock Screw Figure 1-7 Secure the Speed Dome 1.1.2 Connecting the Cables Before you start: Please make sure the power of the dome is off before connecting the cables. The cable interfaces of speed dome are shown in the following figures. Please refer to the following figure for connecting the cables. -
Page 11: Alarm Input And Output Connection
Installation Manual of IR High-Definition Network Speed Dome Figure 1-8 Cables of Network Speed Dome 1.2 Alarm Input and Output Connection The network speed dome can be connected with alarm inputs (0~5VDC) Refer to the following diagrams for alarm output: JQC- 3FG GND OUT Relay... -
Page 12: Chapter 2 Mounting Applications
Installation Manual of IR High-Definition Network Speed Dome Chapter 2 Mounting Applications Before you start: For cement wall, you need to use the expansion screw to fix the mount. The mounting hole of the expansion pipe on the wall should align with the mounting hole on the mount. ... -
Page 13: Wall Mounting
Installation Manual of IR High-Definition Network Speed Dome 2.1.2 Wall Mounting Steps: 1. Drill 4 screw holes in the wall according to the holes of the mount, and then insert M6 expansion screws (not supplied) into the mounting holes. 2. Attach the gasket(not supplied) then wall mount to the wall by aligning the 4 screw holes of the mount with expansion screws on the wall. -
Page 14: Corner Mounting Applications
Installation Manual of IR High-Definition Network Speed Dome 3.2 Corner Mounting Applications Before you start: The corner mounting is applicable to the indoor/outdoor 90° solid corner construction. 3.2.1 Components Wall Mount Figure 2-5 Wall Mount Corner Adapter A corner adapter has to be used together with a wall mount for corner mounting applications. Figure 2-6 Corner Adapter ... -
Page 15: Corner Mounting
Installation Manual of IR High-Definition Network Speed Dome 3.2.2 Corner Mounting 1. Install the corner adapter. Steps: (1) Drill four holes in the corner according to the screw holes of the corner adapter, and then insert M8 expansion screws (not supplied) into the holes. (2) Pull the cables through the center hole of the corner adapter. -
Page 16: Pole Mounting Applications
Installation Manual of IR High-Definition Network Speed Dome details. Figure 2-10 Finish the Installation 3.3 Pole Mounting Applications 3.3.1 Components Wall Mount Figure 2-11 Wall Mount Pole Adapter A pole adapter has to be used together with a wall mount for pole mounting applications. - Page 17 Installation Manual of IR High-Definition Network Speed Dome Figure 2-12 Pole Adapter Pole Mounting Hoops Pole mounting hoop is used for pole mounting with pole adapter and wall mount. There are following dimensions selectable: φ59-82mm, φ84-108mm, φ103-127mm, φ130-152mm, φ155-178mm, φ180-203mm and φ194-216mm. Dimensions can be customized according to your demand.
-
Page 18: Pole Mounting
Installation Manual of IR High-Definition Network Speed Dome Figure 2-14 Hex Screws (M8×30) and Spring Washers 3.3.2 Pole Mounting Steps: 1. Assemble the pole adapter. (1) Loosen the three pole mounting hoops with a screwdriver. (2) Insert them through the rectangle holes of the pole adapter. Figure 2-15 Assemble the Hoops and the Pole adapter 2. - Page 19 Installation Manual of IR High-Definition Network Speed Dome Figure 2-16 Install the Pole Adapter Note: For outdoor applications, please adopt the water-proof measures. 3. Install the wall mount. (1) Attach the gasket then wall mount to the pole adapter. (2) Secure the wall mount to the pole adapter with 4 hex screws and the spring washers. Figure 2-17 Install the Wall Mount 4.
-
Page 20: Pendant Mounting Applications
Installation Manual of IR High-Definition Network Speed Dome Figure 2-18 Finish the Installation 3.4 Pendant Mounting Applications 3.4.1 Components Pendant Mount Figure 2-19 Pendant Mount 3.4.2 Pendant Mounting Steps: 1. Install the mounting base. Steps: (1) Drill four φ8 holes in the ceiling according to the screw holes of the mounting base, and... - Page 21 Installation Manual of IR High-Definition Network Speed Dome then insert M8 expansion screws (not supplied) into the holes. (2) Pull the cables through the cable hole of the mounting base. (3) Attach the mounting base to the ceiling by aligning the screw holes of the mounting base with the expansion screws on the ceiling.
- Page 22 Installation Manual of IR High-Definition Network Speed Dome Figure 2-22 Install the Dome...
-
Page 23: Appendix
Installation Manual of IR High-Definition Network Speed Dome Appendix Appendix 1 Lightning & Surge Protection This product adopts TVS plate lightning protection technology to avoid damage caused by pulse signal that is below 3000W, like instantaneous lighting stroke, surging, etc. According to the actual outdoor situation, necessary protection measures must be taken, besides ensuring the electrical safety. - Page 24 Installation Manual of IR High-Definition Network Speed Dome Grounding for Cement Pole/Wall Installation: When the speed dome is installed in environment where is relatively insulating to the earth, e.g., cement pole or cement wall, then only the control center requires proper grounded locally. Refer to the following figure.
- Page 25 Installation Manual of IR High-Definition Network Speed Dome Notes: Because the signal transmission media of fiber optical speed dome and network speed dome are isolated from the control center, they must be grounded locally to protect dome against damages. ...
- Page 26 Installation Manual of IR High-Definition Network Speed Dome Grounding for Metal Pole Installation: When the speed dome is installed in environment where is conductive to the earth, e.g., metal pole, then the grounding of dome can be achieved by the properly grounded metal pole, meanwhile, the control center must be grounded locally as well.
-
Page 27: Appendix 2 Waterproof
Installation Manual of IR High-Definition Network Speed Dome Appendix 2 Waterproof Notes: The long-arm wall mount is recommended for the outdoor application of speed dome. You cannot use the short-arm wall mount or pendant mount for outdoor application, because it is not water-proof. - Page 28 Installation Manual of IR High-Definition Network Speed Dome Figure A-6 Long-arm Wall Mount...
-
Page 29: Appendix 3 Bubble Maintenance
Installation Manual of IR High-Definition Network Speed Dome Appendix 3 Bubble Maintenance The bubble is a transparent plastic. The dust, oil and finger print, etc. will cause scratch or image blur. Please refer to the following method to clean the bubble. ... -
Page 30: Appendix 4 Rs485 Bus Connection
Installation Manual of IR High-Definition Network Speed Dome Appendix 4 RS485 Bus Connection General Property of RS485 Bus According to RS485 industry bus standard, RS485 is a half-duplex communication bus which has 120Ω characteristic impendence, the maximum load ability is 32 payloads (including controller device and controlled device). - Page 31 Installation Manual of IR High-Definition Network Speed Dome faraway. At this time, the dome will be uncontrollable, or self-running, etc. Controller Device Figure A-4 Star Shape Connection For such case, the best way is adding a RS485 distributor. This product can effectively change the star-shape connection to which satisfies the requirement of RS485 industry standard, in order to avoid those problems and improve the communication reliability.
- Page 32 Installation Manual of IR High-Definition Network Speed Dome Problem Possible Reasons To Solve the Problem dome can tightly. 2. RS485+ or RS485-wire is 2. Change a RS485 wire. controlled broken. but not 3. The speed dome is too far away 3.
-
Page 33: Appendix 5 24Vac Wire Gauge & Transmission Distance
Installation Manual of IR High-Definition Network Speed Dome Appendix 5 24VAC Wire Gauge & Transmission Distance The following table describes the recommended max. distance adopted for the certain wire gauge when the loss rate of 24VAC voltage is less than 10%. For the AC driven device, the maximum voltage loss rate is 10% allowable. -
Page 34: Appendix 6 Wire Gauge Standards
Installation Manual of IR High-Definition Network Speed Dome Appendix 6 Wire Gauge Standards American Cross-sectional Bare Wire British Wire Wire Gauge Area of Bare Gauge(mm) Gauge SWG Wire(mm2) 0.750 0.4417 0.800 0.5027 0.900 0.6362 1.000 0.7854 1.250 1.2266 1.500 1.7663 2.000 3.1420 2.500...
