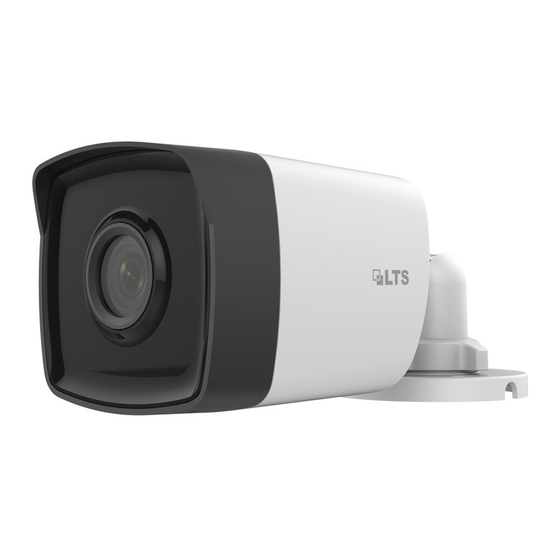

2 MP Series Bullet Camera
User Manual
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual may contain several technical mistakes or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or
update the products or procedures described in the
manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMHR9422N-F and is the answer not in the manual?

Questions and answers

Related Manuals for LTS CMHR9422N-F

Summary of Contents for LTS CMHR9422N-F

  • Page 1 2 MP Series Bullet Camera User Manual User Manual Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual may contain several technical mistakes or printing errors, and the content is subject to change without notice.

  • Page 2: Regulatory Information

    Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.

  • Page 4: Product Features

    Keep the camera away from liquid while in use for  non-water-proof device. While in delivery, the camera shall be packed in its  original packing, or packing of the same texture. Mark Description Table 0-1 Mark Description Mark Description DC Voltage 1 Introduction 1.1 Product Features...
  • Page 5 1.2.3 Overview of Type III Camera Power Cord Video Cable Bracket Main Body Lens Figure 1-4 Overview of Type III Camera Note: This camera is TVI only. Switch Button Power Cord Bracket Video Cable Main Body Lens Figure 1-5 Overview of Type III Camera Note: Press and hold the switch button for 5 seconds to switch the video output.

  • Page 6: Installation

    2 Installation Before you start Make sure that the device in the package is in good  condition and all the assembly parts are included. Make sure that all the related equipment is power-off  during the installation. Check the specification of the products for the ...
  • Page 7 You need to purchase a junction box in advance. The installation of Type I and Type II camera are similar. Following takes Type I camera as an example. Steps: 1. Paste the drill template on the ceiling/wall. 2. Drill screw holes and the cable hole on the ceiling according to the drill template.
  • Page 8 8. Repeat the step 4 to 5 of 2.1.1 Ceiling/Wall Mounting without Junction Box to finish the installation. 2.2 Installation of Type III Camera 2.2.1 Ceiling/Wall Mounting without Junction Box Before you start: The installation of ceiling mounting and wall mounting are similar.
  • Page 9 Figure 2-9 The Drill Template of the Junction Box 3. Take apart the junction box, and align the screw holes of the camera with those on the junction box’s cover. 4. Attach the camera on the junction box’s cover with supplied screws.

  • Page 10: Menu Description

    3 Menu Description Please follow the steps below to call the menu. Note: The actual display may vary with your camera model. Steps: 1. Connect the camera with the TVI DVR, and the monitor, shown as the figure 3-1. TVI DVR Camera Monitor Figure 3-1 Connection...

  • Page 11: Video Format

    3). Click left/right direction button to adjust the value of the selected item. 3.1 VIDEO FORMAT You can set the video format to 2MP@30fps, 2MP@25fps, PAL or NTSC. Note: When switching the video output to TVI/ CVI/ AHD, you can set the video format to 2MP@30fps or 2MP@25fps; when switching the video output to CVBS, you can set the video format to PAL or NTSC.

  • Page 12: Video Settings

    IR LIGHT  You can turn on/off the IR LIGHT to meet different circumstances. SMART IR  The Smart IR function is used to adjust the light to its most suitable intensity, and prevent the image from over exposure. The SMART IR value can be adjusted from 0 to 3.

  • Page 13: Image Mode

    VIDEO SETTINGS IMAGE MODE  WHITE BALANCE BRIGHTNESS CONTRAST SHARPNESS SATURATION MIRROR  BACK  EXIT  SAVE & EXIT Figure 3-5 VIDEO SETTING IMAGE MODE IMAGE MODE is used to adjust the image saturation, and you can set it to STD (Standard) or HIGH-SAT (High Saturation).

  • Page 14: Factory Default

    HV: The image flips 180° both horizontally and vertically. 3.5 FACTORY DEFAULT Reset all the settings to the factory default. 3.6 EXIT Move the cursor to EXIT and click Iris+ to exit the menu. 3.7 SAVE & EXIT Move the cursor to SAVE & EXIT and click Iris+ to save the settings, and exit the menu.
