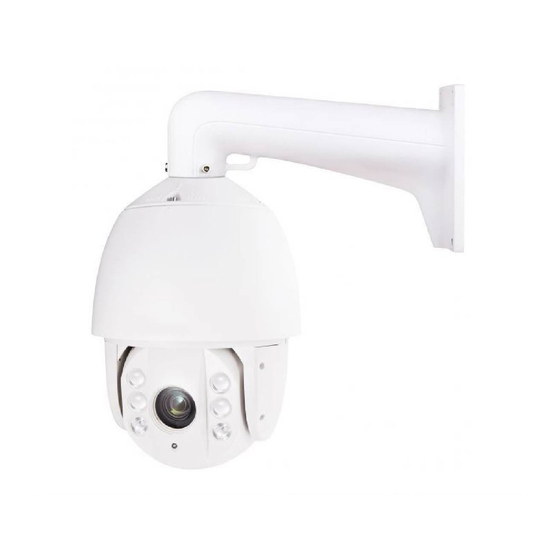

Hd-tvi speed dome

Advertisement

Quick Links

HD-TVI Speed Dome
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTZH773X23IR and is the answer not in the manual?

Questions and answers

Summary of Contents for LTS PTZH773X23IR

  • Page 1 HD-TVI Speed Dome Installation Manual...
  • Page 2 Installation Manual of HD-TVI Speed Dome Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact the dealer. This manual is applicable to HD-TVI Speed Domes. This manual may contain several technically inaccurate points or printing errors, and the content is subject to change without notice.
  • Page 3 Installation Manual of HD-TVI Speed Dome Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 Installation Manual of HD-TVI Speed Dome Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Warnings and Cautions: Warnings: Neglecting any of the warnings may cause serious injury or death. Cautions: Neglecting any of the cautions may cause injury or equipment damage.
  • Page 5 Installation Manual of HD-TVI Speed Dome otherwise (which is not a malfunction however), and affecting the endurance of sensor at the same time.  Please use the provided glove when open up the dome cover, avoid direct contact with the dome cover, because the acidic sweat of the fingers may erode the surface coating of the dome cover.
  • Page 6: Table Of Contents

    Installation Manual of HD-TVI Speed Dome Table of Contents Chapter 1 Preparation ..............................6 Chapter 2 Installation ..............................7 Cable Descriptions ..............................7 DIP Switch Settings ..............................8 Wiring and Installation ............................10 2.3.1 Wiring ................................10 2.3.2 Installing the Bracket............................10 2.3.3 Set the DIP Switch ............................
  • Page 7: Chapter 1 Preparation

    Installation Manual of HD-TVI Speed Dome Chapter 1 Preparation Basic Requirement  All the electronic operation should be strictly compliance with the electrical safety regulations, fire prevention regulations and other related regulations in your local region.  Check the package contents and make sure that the device in the package is in good condition and all the assembly parts are included.
  • Page 8: Chapter 2 Installation

    Installation Manual of HD-TVI Speed Dome Chapter 2 Installation Before you start: Check the package contents and make sure that the device in the package is in good condition and all the assembly parts are included. Start Installation Preparation Wiring Installing Bracket Setting DIP Switch Installing Speed Dome...
  • Page 9: Dip Switch Settings

    Installation Manual of HD-TVI Speed Dome ① Black Yellow&Green ① AC24V YELLOW/GREEN GND Yellow Orange BLACK AC24V ② Video Output ② YELLOW R485- ORANGE R485+ Figure 2-2 Cables of Speed Dome Name Description AC24V Power supply RS485+/- 485 control VIDEO Coaxial and analog video output 2.2 DIP Switch Settings Two DIP switches SW1 and SW2 are for setting the speed dome address, baudrate, protocol, etc.,...
  • Page 10 Installation Manual of HD-TVI Speed Dome Figure 2-4 Enlarged View of DIP Switch The default dome address is 0; the default baudrate is 2400; and the default value of the 120Ω terminator is OFF.  Address Settings The SW1 switch is used for setting the address of speed dome. You can refer to Table 2-1 for details of setting the speed dome address to a specific number.
  • Page 11: Wiring And Installation

    Installation Manual of HD-TVI Speed Dome half-duplex. Table 2-3 Set Communication Mode of the Dome DIP Switch SW2-Simplex/Half-duplex Settings Description Simplex Half-duplex  Terminal Resistor Settings The No. 8 of SW2 switch is used for turning on/off the 120Ω terminal resistor. Table 2-4 Set Terminal Resistor Switch Number Description...
  • Page 12 Installation Manual of HD-TVI Speed Dome Wall mounting is applicable to the indoor/outdoor solid wall construction. The followings are the mandatory precondition for wall mounting:  The wall must be thick enough to install the expansion screws.  Please make sure that the wall is strong enough to withstand more than 8 times the weight of the dome and the mount.
  • Page 13: Set The Dip Switch

    Installation Manual of HD-TVI Speed Dome applications, please adopt the water-proof measures. The short-arm wall mount is not recommended for outdoor applications. 2.3.3 Set the DIP Switch Set the DIP Set the address and baudrate for the analog speed dome. The default value of DIP switch is shown below: ...
  • Page 14 Installation Manual of HD-TVI Speed Dome Figure 2-9 Tighten the Lock Screws...
  • Page 15: Appendix

    Installation Manual of HD-TVI Speed Dome Appendix Appendix 1 Lightning & Surge Protection This product adopts TVS plate lightning protection technology to avoid damage caused by pulse signal that is below 3000W, like instantaneous lighting stroke, surging, etc. According to the actual outdoor situation, necessary protection measures must be taken, besides ensuring the electrical safety.
  • Page 16: Appendix 2 Rs485 Bus Connection

    Installation Manual of HD-TVI Speed Dome Appendix 2 RS485 Bus Connection  General Property of RS485 Bus According to RS485 industry bus standard, RS485 is a half-duplex communication bus which has 120Ω characteristic impendence, the maximum load ability is 32 payloads (including controller device and controlled device).
  • Page 17 Installation Manual of HD-TVI Speed Dome faraway. At this time, the dome will be uncontrollable, or self-running, etc. Controller Figure A-4 Star Shape Connection For such case, the best way is adding a RS485 distributor. This product can effectively change the star-shape connection to which satisfies the requirement of RS485 industry standard, in order to avoid those problems and improve the communication reliability.
  • Page 18 Installation Manual of HD-TVI Speed Dome Problem Possible Reasons To Solve the Problem dome can tightly. 2. RS485+ or RS485-wire is 2. Change a RS485 wire. controlled broken. but not 3. The speed dome is too far away 3. Add a terminal resistor. smoothly.
  • Page 19: Appendix 3 24Vac Wire Gauge & Transmission Distance

    Installation Manual of HD-TVI Speed Dome Appendix 3 24VAC Wire Gauge & Transmission Distance The following table describes the recommended Max. distance adopted for the certain wire gauge when the loss rate of 24VAC voltage is less than 10%. For the AC driven device, the maximum voltage loss rate is 10% allowable.
  • Page 20: Appendix 4 Wire Gauge Standards

    Appendix 4 Wire Gauge Standards American Cross-sectional Bare Wire British Wire Wire Gauge Area of Bare Gauge(mm) Gauge SWG Wire(mm2) 0.750 0.4417 0.800 0.5027 0.900 0.6362 1.000 0.7854 1.250 1.2266 1.500 1.7663 2.000 3.1420 2.500 4.9080 3.000 7.0683...
