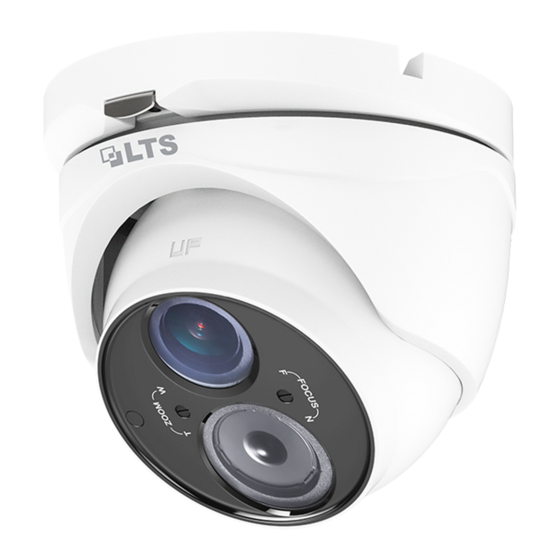

LTS CMHT1623A User Manual

HD-TVI
1080P Turret &Bullet Camera
User Manual
Thank you for purchasing our product. If there
are any ques ons, or requests, please do not
hesitate to contact the dealer.
This manual may contain several technical
incorrect places or prin g errors, and the
content is subject to change without .
The updates will be added to the new version of
this manual. We will readily improve or update
the products or procedures described in the
manual.
DISCLAIMER STATEMENT
Underwriters Laboratories Inc. ("UL" has not
)
tested the performance or reliability of the
security or signaling aspects of this product.
UL has only tested for fire, shock or casualty
hazards as outlined in Ul's Standard(s) for Safety,
UL60950-1. UL Cer fica on does not cover the
performance or reliability of the security or
signaling aspects of this product. UL MAKES NO
REPRESENTATIONS, WARRANTIES OR
CERTIFICATIONS WHATSOEVER REGARDING
THE PERFORMANCE OR RELIABILITY OF ANY
SECURITY OR SIGNALING RELATED FUNCTIONS
OF THIS PRODUCT.
Regulatory Informa n
FCC Informa n
FCC compliance: This equipment has been
tested and found to comply with the limits for a
digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide
reasonable prot n against harmful
interference when the equipment is operated in
a commercial environment. This equipment
generates, uses, and can radiate radio
frequency energy and, if not installed and used
in accordance with the ins n manual, may
cause harmful interference to radio
communica . Opera n of this equipment in
a residen l area is likely to cause harmful
interference in which case the user will be
required to correct the interference at his own
expense.
FCC s
This device complies with part 15 of the FCC
Rules. Opera on is subject to the following two
c :
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired opera n .

EU Conformity Statement

This product and - if applicable - the
supplied accessories too are marked
with "CE" and comply therefore with
the applicable harmonized European
standards listed under the Low Voltage Direc ve
2006/95/EC, the EMC Dir ve 2004/108/EC ,
the RoHS Dire ve 2011/65/EU.
2012/19/EU (WEEE dire ve):
Products marked with this symbol
cannot be disposed of as unsorted
municipal waste in the European
Union. For proper recycling, return
this product to your local supplier
upon the purchase of equivalent new equipment,
or dispose of it at designated collection points.
www.recyclethis.info.
For more information see:
2006/66/EC (ba ery dire ve):
This product contains a ba ery that
cannot be disposed of as unsorted
municipal waste in the European
Union.
See the product documenta n for specific
ba ery informa on. The ba ery is marked with
this symbol, which may include le ering to
indicate cadmium (Cd), lead (Pb), or mercury (Hg).
For proper recycling, return the ba ery to your
supplier or to a designated c n point. For
more informa n see: www.recyclethis.info.
1 Intr n

1.1 Product Features

This camera adopts new genera n sensor with
high y and advanced circuit board design
technology. It possesses the features of high
r , low dist , and low noise, etc. It is
extremely suitable for supervisory system and
image processing system.
The main features are as follows:
High performance CMOS sensor and high
re n bring high-quality image;
Low illumina ;
Support IR cut filter with auto switch;
OSD menu, parameters are configurable;
Support auto white balance, auto gain control,
electronic shu er control and internal
synchroniza ;
SMART IR mode;
Unit transmission control;
Advanced 3-axis design meets different
installa on requirements.

1.2 Overview

1.2.1 Overview of Type I Camera

Zoom & Focus
Enclosure
Camera
Lock Lock Screw
Power Cable
Moun g Base
HD Video Cable
Figure 1-1 Overview of Type I Camera
II

1.2.2 Overview of Type Camera

Power Cable
CVBS Cable
HD Video Cable
Moun g Base
Sun Shield
Focus
Lens
Zoom
Main Body
IR LED
Figure 1-2 Overview of Type Camera II
2 Installa n
Before you start:
Please make sure that the device in the package
is in good c n and all the assembly parts
are included.
Make sure that all the related equipment is
power-off during the installa on.
Check the specifica on of the products for the
installa n environment.
Check whether the power supply is matched
with your power output to avoid damage.
Please make sure the wall is strong enough to
withstand three s the weight of the camera
and the moun .
If the wall is the cement wall, you need to insert
expansion screws before you install the camera.
If the wall is the wooden wall, you can use
self-tapping screw to secure the camera.
If the product does not n properly,
please contact your dealer or the nearest
service center. Do not disassemble the camera
for repair or maintenance by yourself.
2.1 Installa n of Type Camera I
Steps:
1.Drill the screw holes and the cable hole on the
ceiling according to the supplied drill template.
Figure 2-1 The Drill Template
.
2 Release the lock screw to disassemble the camera
from the moun g base.
Figure 2-2 Release The Lock Screw
3.Fix the moun g base to the ceiling.
