LAVINA ELITE L13EU

User Manual
www.superabrasive.com / factory@superabrasive.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAVINA ELITE L13EU and is the answer not in the manual?

Questions and answers

Related Manuals for Superabrasive LAVINA ELITE L13EU

Summary of Contents for Superabrasive LAVINA ELITE L13EU

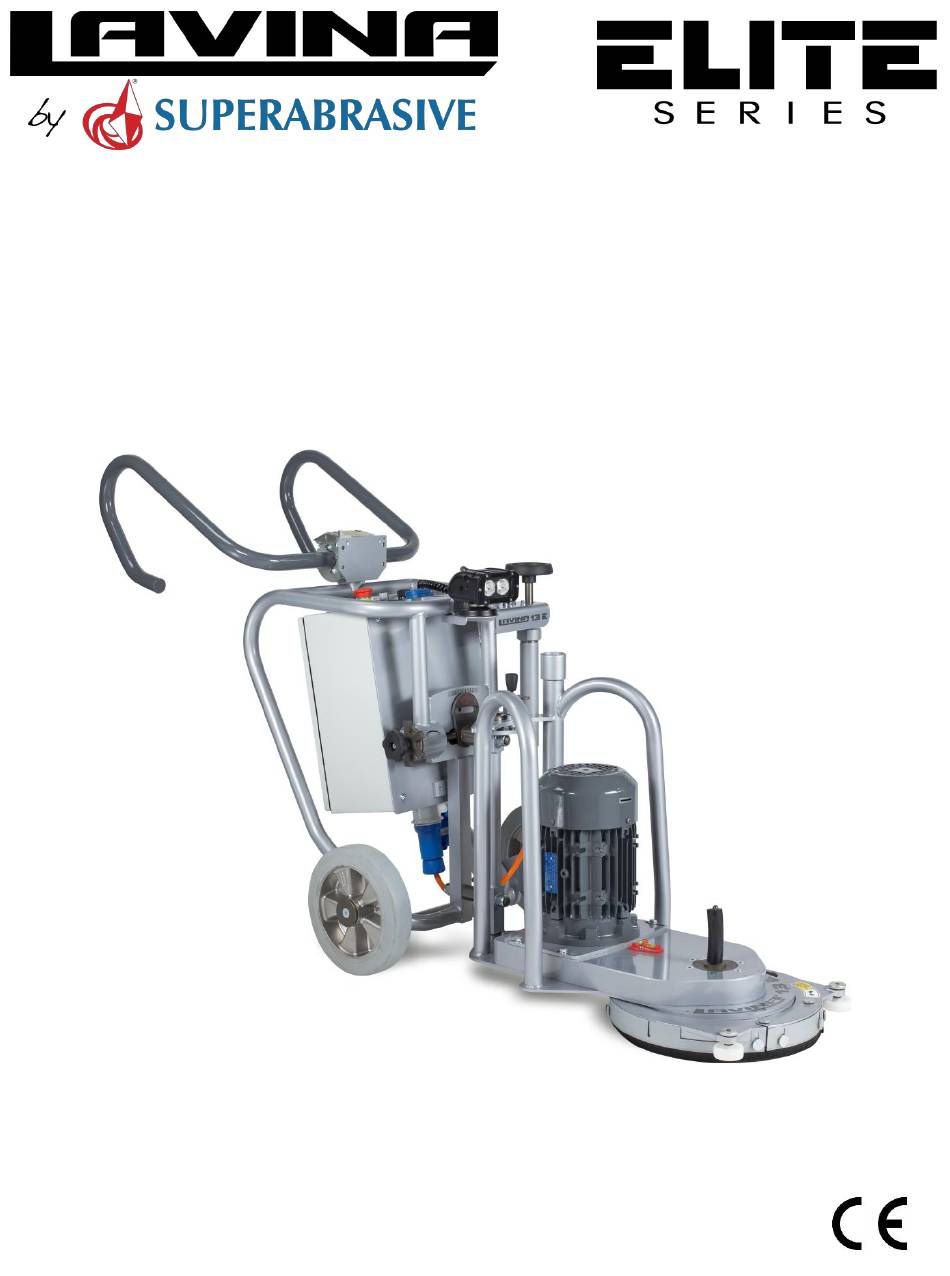

  • Page 1: Lavina Elite L13Eu

    LAVINA ELITE L13EU User Manual www.superabrasive.com / factory@superabrasive.com...

  • Page 2: Warranty And Returns

    WARRANTY AND RETURNS WARRANTY POLICY FOR LAVINA® E MACHINES A warranty card must be submitted to Superabrasive within 30 days of purchase in order for the foregoing warranty to apply. You can either mail a hard copy of the warranty card or submit it electronically - see page 2.

  • Page 3: Table Of Contents

    Lavina®13EU Superabrasive User Manual 7/2020 4. TOOLS AND ACCESSORIES ......... 10 LAVINA ELITE L13EU ........1 WEIGHTS ................... 10 Tool holder key................10 Security plate for Quickchange pads .......... 10 WARRANTY AND RETURNS ........ 2 WARRANTY POLICY FOR LAVINA® E MACHINES ......2 5.

  • Page 4: General Information

    MANUFACTURER Superabrasive was founded in 1987, as a manufacturer of high quality diamond tools for the stone and concrete industry. Today, Superabrasive is one of the world’s leading companies in the production of diamond tools and floor grinding machinery. At Superabrasive, we strive to deliver the very best solutions to our customers, and enable them to work more efficiently.

  • Page 5: Technical Data

    The data on the label provides the correct Voltage and kW (needed for operational purposes); Weight (needed for transportation purposes); production year and serial number (needed for maintenance purposes). Customer Service For customer assistance and technical support call your local distributor or call Superabrasive Inc. at 1-800-987-8403 or visit us at: www.superabrasive.com , where you can download a copy of this manual.

  • Page 6: Safety Instruction

    Original Language Lavina®13EU Superabrasive User Manual 7/2020 2. SAFETY INSTRUCTION Position Risks due to operator’s incorrect working position RECOMMENDED USE Tangling up Risks due to wearing inappropriate working clothes The Lavina®13EU machine is designed and manufactured to Training Risks due to lack of operational training grind and polish concrete, terrazzo and natural stone floors.

  • Page 7: Operator

    Original Language Lavina®13EU Superabrasive User Manual 7/2020 OPERATOR The operator must understand and interpret all the drawings The Lavina®13EU machine. and designs in manual. The operator must know the machine’s work environment. The operator must know all sanitation and safety regulations Only one operator at a time can work with the machine.

  • Page 8: Adjusting Handle

    Original Language Lavina®13EU Superabrasive User Manual 7/2020 Using the handle (Fig 3.6) and guided by the index line and the levelling put the operating part in the desired crosswise position and screw the handle (Fig 3.5) Using the vertical screw (Fig 3.7) and guided by the leveling adjust the operating part to flat position or find the required lengthwise tilt (forward or backward).

  • Page 9: The Control Board

    Original Language Lavina®13EU Superabrasive User Manual 7/2020 THE CONTROL BOARD 1. Digital RPM indicator Indicates the revolution per minute of the grinding plates (not the revolution per minute of the entire unit). Alarm/Reset button resets the alarm of the inverter. Button lights blue when the inverter goes into alarm mode.

  • Page 10: Tools And Accessories

    User Manual 7/2020 4. TOOLS AND ACCESSORIES WEIGHTS Superabrasive offers additional weights for increasing the productivity of the machine (Fig.4.1). Each additional weight weighs about 12,5 lbs or 5,67 kg for 1'' bars (0.83'' H x 8.86'' W x 8.86'' D).

  • Page 11: Popular Tools

    NATO® WITH QUICK CHANGE ATTACHMENT Superabrasive's Nato resin pucks are a great tool choice for soft and hard concrete polishing applications. Among the thickest diamond pads on the market - featuring a thick 12mm layer of resin and diamonds for extra long life.

  • Page 12: Cleaning

    Original Language Lavina®13EU Superabrasive User Manual 7/2020 6. MAINTENANCE AND INSPECTION CLEANING Keep your machine clean. Cleaning the machine on a regular basis will help detect and solve potential problems before they cause damage to the machine. Most importantly, check and clean the tool plate connections, power cord and plugs, vacuum hoses.

  • Page 13: Lavina® 13E Electrical Schemes With Yaskawa Inverter 200-240 Volt

    Original Language Lavina®13EU Superabrasive User Manual 7/2020 LAVINA® 13E ELECTRICAL SCHEMES WITH YASKAWA INVERTER 200-240 VOLT LAVINA® 13E ELECTRICAL SCHEMES YASKAWA CONNECTION MAIN CIRCUIT TERMINALS The motor is connected in “Delta” (triangle) 230 Volt, reminder for the wire connection of the motor Figure 6.4...

  • Page 14: Troubleshooting

    Original Language Lavina®13EU Superabrasive User Manual 7/2020 7. TROUBLESHOOTING INDEX OF PROBLEMS AND SOLUTIONS 7.1 REPLACING POWER CORD AND PLUGS When replacing the power cord or plugs always use cords and plugs with specifications as the original ones. Never use lower quality or different type cord and plugs.
  • Page 15 Original Language Lavina®13EU Superabrasive User Manual 7/2020 Figure 7.3.2 Figure 7.3.3 Figure 7.3.1 Figure 7.3.6 Figure 7.3.4 Figure 7.3.5 Figure 7.3.7 Figure 7.3.8 Figure 7.3.9 Make sure the four bolts holding the adaptor (Fig.7.3.12) are reliably tighten. Mount the holder on the machine using the same socket as mentioned in 7.2 (Fig.7.3.10;Fig.7.3.11).

  • Page 16: Tensioning The Belts

    Original Language Lavina®13EU Superabrasive User Manual 7/2020 7.4 TENSIONING THE BELTS PLEASE MAKE SURE YOU CHECK THE TENSION OF THE BELT AFTER THE FIRST 15 HOURS OF OPERATION If the operator notices, the grinding spindle is turning irregular or noisy or in the worse case, the grinding spindle does not turn although the motor turns.

  • Page 17: Fault Diagnosis Inverter Yaskawa V1000

    Original Language Lavina®13EU Superabrasive User Manual 7/2020 7.7 FAULT DIAGNOSIS INVERTER YASKAWA V1000 Pages are referring to Yaskawa Electric SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual...
  • Page 18 Original Language Lavina®13EU Superabrasive User Manual 7/2020...

  • Page 19: Disposal

    7/2020 8. DISPOSAL If your machine after time is not usable or needs to be replaced, send the machine back to Superabrasive or a local distributor, where a professional disposal complying with the environment laws and directives is guaranteed. 9. MANUFACTURER’S CONTACTS If you need to contact Superabrasive Inc.

  • Page 20: Spare Parts

    Original Language Lavina®13EU Superabrasive User Manual 7/2020 10. SPARE PARTS ASSEMBLY AND PARTS SPECIFICATIONS 1. LAVINA®13EU GENERAL PARTS Item No. Description Pcs. L13E10.00.00 Main Head L13E20.00.00 Carriage L13EU-30.00.00 Control box 30301240109 Self Locking Nut M16DIN982 30301221008 Washer M16DIN125A 30301210031 Bolt М8х20DIN6921 L13E40.00.00...
  • Page 21 Original Language Lavina®13EU Superabrasive User Manual 7/2020 3. LAVINA®13EU TOOL HOLDER PARTS/ SEE ALSO FIG.8.7.13/ (POS.1 INCLUDE POS.1.1;1.2;1.3/POS.1.3 INCLUDE POS.1.3.1 and etc.) Item No. Description Pcs. A64.10.00 Quick Change Assembly A63.12.00 Keylock Set A43.11.00 Quick Change plate A41.12.00 Security set 1.3.1...
  • Page 22 Original Language Lavina®13EU Superabrasive User Manual 7/2020 4. LAVINA®13EU MAIN HEAD 2 Item No. Description Pcs. 30301230017 Screw М6X10DIN7991/10.0/ L13GX10.00.03 Flange L13S-10.00.40 Disc Cover 30301230013 Screw M6X12DIN7991/10.9/ D3.2X1.8X803 Seal L13E10.10.00 Driven Bearing 30308000108 Belt 30301230161 Screw M8X12DIN7991/10.9/ L13S-10.70.00 Weights Holder L13GX10.20.00...
  • Page 23 Original Language Lavina®13EU Superabrasive User Manual 7/2020 5. LAVINA®13EU CARRIAGE PARTS 1 Item No. Description Pcs. Item No. Description Pcs. Screw 30301230015 30329000018 Handle F17760 M10X16DIN7991/10.9/ L25X-20.00.03 Wheel Cap 30301221028 Washer M16DIN6319D 30312000043 Wheel 30301221029 Washer M16DIN6319C L13S-21.00.06-1 Bush L13S-20.40.01-1 Screw L13S-21.20.00...
  • Page 24 Original Language Lavina®13EU Superabrasive User Manual 7/2020 6. LAVINA®13EU CARRIAGE PARTS 2 Item No. Description Pcs. L13GX21.10.00 Handle 30301230018 Screw M8X16DIN912 30301210109 Bolt M5x14DIN933 L20GX-23.00.11 Fixator L20GX-23.20.00 Fixator 30301210051 Bolt M6X16DIN6921 L20GX-23.00.01 Flange 30301230250 Screw M6x12ISO7380-1/10.9/ Washer М6DIN9021 30301221012 L20GX-23.00.02-1...
