Summary of Contents for Superabrasive LAVINA ELITE L13GE

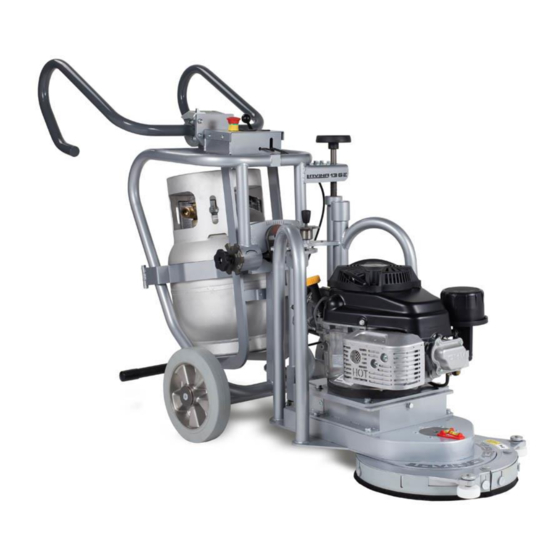

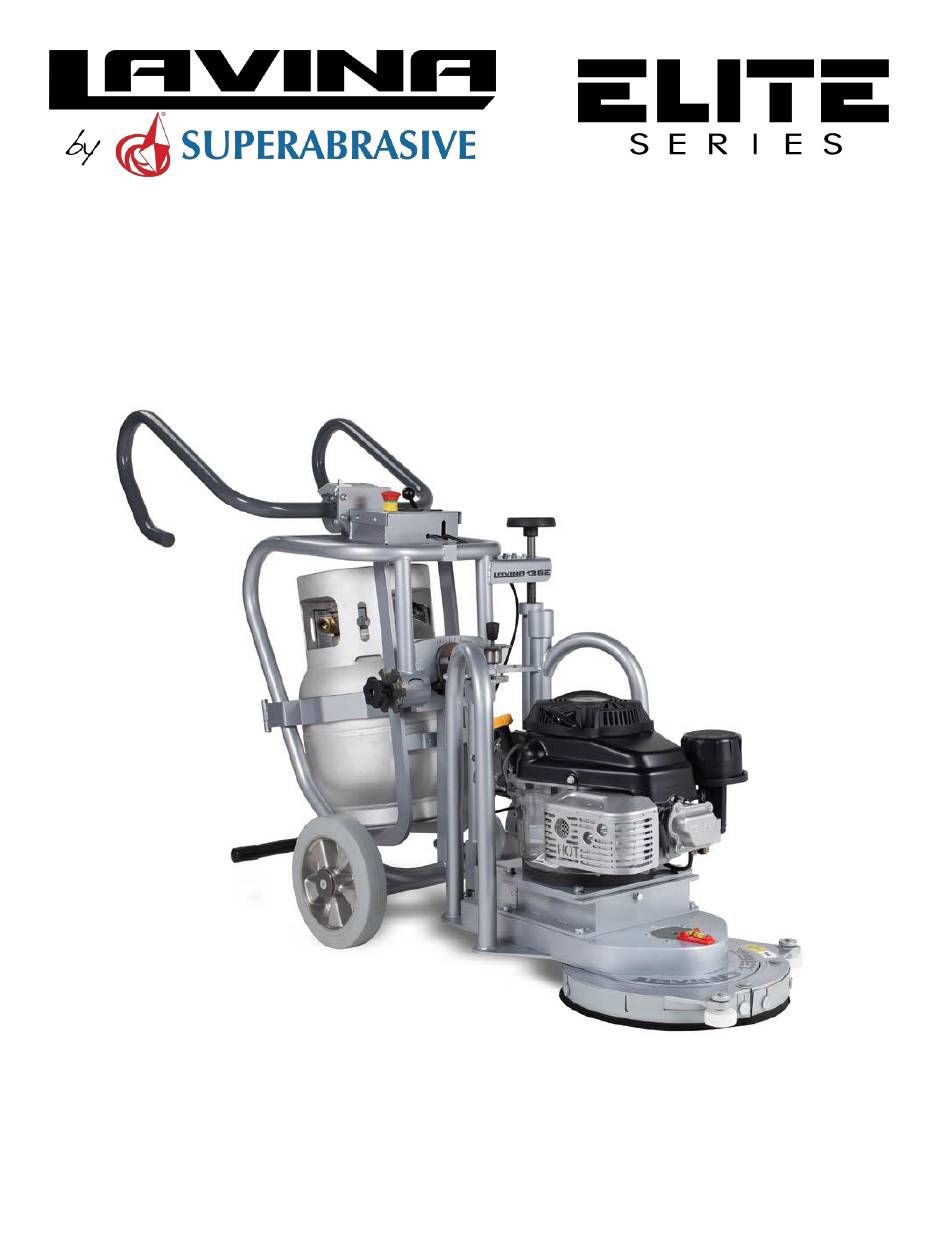

- Page 1 LAVINA ELITE L13GE User Manual Tech Support Line: 800-987-8403 | www.superabrasive.com | info@superabrasive.us...
- Page 2 Superabrasive User Manual Original Language Lavina®13-S 2/2013...
-
Page 3: Warranty And Returns
WARRANTY POLICY FOR LAVINA E MACHINES A warranty card must be submitted to Superabrasive within 30 days of purchase in order for the foregoing warranty to apply. You can either mail a hard copy of the warranty card or submit it electronically - see page 2. -
Page 4: Table Of Contents
Superabrasive User Manual Original Language Lavina®13G-E 2/2019 WARRANTY AND RETURNS ........ 3 4. TOOLS AND ACCESSORIES ......... 14 ....................14 1. GENERAL INFORMATION ........5 Tool holder key................14 Foam Plate ........Error! Bookmark not defined. Manufacturer ................5 Security plate for Quickchange pads .......... 14 General Description .............. -
Page 5: General Information
MANUFACTURER Superabrasive was founded in 1987, as a manufacturer of high quality diamond tools for the stone and concrete industry. Today, Superabrasive is one of the world’s leading companies in the production of diamond tools and floor grinding machinery. At Superabrasive, we strive to deliver the very best solutions to our customers, and enable them to work more efficiently. -
Page 6: Vacuum Connection
The data on the label provides the correct voltage and kW (needed for operational purposes); Weight (needed for transportation purposes); production year and serial number (needed for maintenance purposes). CUSTOMER SERVICE For customer assistance and technical support call your local distributor or call Superabrasive Inc. at 1-800-987-8403 or visit us at: www.superabrasive.com... -
Page 7: Safety Instruction
Superabrasive User Manual Original Language Lavina®13G-E 2/2019 2. SAFETY INSTRUCTION SAFE USE RECOMMENDED USE The LAVINA® 13G-E is designed to eliminate all risks The LAVINA® 13G-E machine is designed and manufactured to correlated with its use. However, it is not possible to eliminate grind and polish concrete, terrazzo and natural stone floors. -
Page 8: Hazard Communication
Superabrasive User Manual Original Language Lavina®13G-E 2/2019 be fatal. Carbon monoxide (CO) poses the greatest risk, since shall be permitted to be used in buildings frequented by the CO can be lethal within as little as 30 minutes exposure at public, including the times when such buildings are occupied 3,000 parts per million (ppm) concentration. -
Page 9: Operating Machine
Superabrasive User Manual Original Language Lavina®13G-E 2/2019 Before filling the water tank with water make sure the Some instruments are used to read “ambient air” and may machine is not working and the main switch is turned off. -
Page 10: Propane Cylinders
Superabrasive User Manual Original Language Lavina®13G-E 2/2019 PROPANE CYLINDERS heater, or other source of ignition. Propane changes into a gas, is -44º F (-42º C). Exposing unprotected skin to propane gas or liquid could result in frostbite injury. The Propane cylinders are constructed of either aluminum ... -
Page 11: Operation
Superabrasive User Manual Original Language Lavina®13G-E 2/2019 3. OPERATION PRELIMINARY CONTROLS Inspect the working area as explained in the safety instructions. For dry use connect the vacuum extractor and ensure that the vacuum hose is clear and it will follow the machine easily. -
Page 12: Adjusting Handle
Superabrasive User Manual Original Language Lavina®13G-E 2/2019 ADJUSTING HANDLE Unscrew the handle (Fig. 3.8) till it reaches the ager (Fig. 3.9). Pull up the ager (Fig. 3.9) and turn the handle to the desired position. Figure 3.9 Figure 3.8 TOOL PROTECTING GUARD The protecting guard has free movement and is self-adjusting according to the height of the tool abrasion and is turning in the °... -
Page 13: Engine Oil
Superabrasive User Manual Original Language Lavina®13G-E 2/2019 REMEMBER, when you are finished with the machine, store the propane tank outside the building, in a SECURE place away from heat or direct sunlight. Remember not to hold the machine in one spot before turning off until the grinding plates stop moving. -
Page 14: Tools And Accessories
Superabrasive User Manual Original Language Lavina®13G-E 2/2019 4. TOOLS AND ACCESSORIES TOOL HOLDER KEY The tool holder key (Fig.4.1) is used for adjusting, mounting and dismounting of the foam plates. Always use the key for mounting. Item number is A03.00.00.00 Figure 4.1... -
Page 15: Popular Tools
NATO® WITH QUICK CHANGE ATTACHMENT Superabrasive's Nato resin pucks are a great tool choice for soft and hard concrete polishing applications. Among the thickest diamond pads on the market - featuring a thick 12mm layer of resin and diamonds for extra long life. Wide channels and a unique patented design allow for work on a cleaner surface, ensuring a quality polish. -
Page 16: Maintenance And Inspection
Superabrasive User Manual Original Language Lavina®13G-E 2/2019 6. MAINTENANCE AND INSPECTION CLEANING Keep your machine clean. Cleaning the machine on a regular basis will help detect and solve potential problems before they cause damage to the machine. Most importantly, check and clean the tool plate connections, vacuum hoses, water tank and the Propane installation. -
Page 17: Troubleshooting
Superabrasive User Manual Original Language Lavina®13G-E 2/2019 7. TROUBLESHOOTING INDEX OF PROBLEMS AND SOLUTIONS 7.1 ENGINE When troubles occur, be sure to check the simple causes which at first, may seem too obvious to be considered. For example, a starting problem could be caused by fuel starvation due to an empty propane cylinder or an unopened service valve. -
Page 18: Dismounting Tool Holder To Change V-Rings
Superabrasive User Manual Original Language Lavina®13G-E 2/2019 AIR FILTER CHANGE Service Interval: Every 25 hours—Clean the foam pre-cleaner. Every 300 hours— Replace the paper air filter. (May need more often in dusty conditions.) Note: Do Not operate the engine without the air filter assembly; extreme engine damage will occur. -
Page 19: Disassembling And Mounting Tool Holder To Change Buffers And Elastic Element
Superabrasive User Manual Original Language Lavina®13G-E 2/2019 7.3 DISASSEMBLING AND MOUNTING TOOL HOLDER TO CHANGE BUFFERS AND ELASTIC ELEMENT When the TOOL HOLDER is disassembled you can change defective parts – elastic element, buffers, etc. Lift the locking pin (Fig.7.3.1) to dismount the retaining washer (Fig. 7.3.2). Take out the screws on the buffers and the nuts of the elastic element (Fig. -
Page 20: Tensioning The Belts
Superabrasive User Manual Original Language Lavina®13G-E 2/2019 7.4 TENSIONING THE BELTS PLEASE MAKE SURE YOU CHECK THE TENSION OF THE BELT AFTER THE FIRST 15 HOURS OF OPERATION If the operator notices, the grinding spindle is turning irregular or noisy or in the worse case, the grinding spindle does not turn although the motor turns. -
Page 21: Replacing The Clutch
Superabrasive User Manual Original Language Lavina®13-S 2/2013 Figure 7.5.8 Figure 7.5.9 Figure 7.5.10 The driving transmission from the engine to the tools is made by the two types of belts: V-belt – from the engine to the pulley and timing belt – from the pulley to the tool.To change the timing belt follow the instruction of Figure 7.5.1 to Figure 7.5.6. -
Page 22: Warranty And Returns
If machines are not exchanged, they are subject to a fifteen percent (15%) restocking fee. 9. DISPOSAL If your machine after time is not usable or needs to be replaced, send the machine back to Superabrasive or a local distributor, where a professional disposal complying with the environment laws and directives is guaranteed. -
Page 23: Spare Parts
Superabrasive User Manual Original Language Lavina®13G-E 2/2019 11. SPARE PARTS ASSEMBLY AND PARTS SPECIFICATIONS 1. LAVINA®13G-E GENERAL PARTS Item No. Description Pcs. M16DIN982 Self Locking Nut M16DIN125A Washer L13GE10.00.00 Main Head L13GX20.00.00 Carriage L13GX20.01.00 Pult M6DIN985 Self Locking Nut M8X20DIN7984... -
Page 24: Lavina®13G-E Tool Holder Parts/See Also Fig.8.7.13
Superabrasive User Manual Original Language Lavina®13G-E 2/2019 3. LAVINA®13G-E TOOL HOLDER PARTS/ SEE ALSO FIG.8.7.13/ (POS.1 INCLUDE POS.1.1;1.2;1.3/POS.1.3 INCLUDE POS.1.3.1 and etc.) Item No. Description Pcs. A64.10.00 Quick Change Assembly A63.12.00 Keylock Set A43.11.00 Quick Change plate A41.12.00 Security set 1.3.1... -
Page 25: Lavina®13G-E Main Head 3
Superabrasive User Manual Original Language Lavina®13G-E 2/2019 5. LAVINA®13G-E MAIN HEAD 3 Item No. Description Pcs. L13GX10.00.03 Flange М6X10DIN7991 Screw L13S-10.00.40 Disc Cover M6X12DIN7991 Screw D3.2X1.8X803 Seal L13GX10.10.00 Driven Bearing OMEGA9255MHP25 Timing Belts M8X12DIN7991 Screw L13GX10.20.00K Frame SET L13GX10.90.00 Pulley Unit Assembly... -
Page 26: Lavina®13G-E Carriage Parts 1
Superabrasive User Manual Original Language Lavina®13G-E 2/2019 5. LAVINA®13G-E CARRIAGE PARTS 1 Item No. Description Pcs. Item No. Description Pcs. M10X16DIN7991 Screw M16DIN6319D Washer L25X-20.00.03 Wheel Cap M16DIN6319C Washer IFP250x50-25x60 Wheel L13S-20.40.01-1 Screw L13S-21.00.06-1 Bush L13X-20.20.00 Axle L13S-21.20.00 Connecting Rod L13S-20.00.05... -
Page 27: Lavina®13G-E Carriage Parts 2
Superabrasive User Manual Original Language Lavina®13G-E 2/2019 5. LAVINA®13G-E CARRIAGE PARTS 2 Item No. Description Pcs. L13GX21.00.00 Handle M8X16DIN912 Screw M5X12DIN6921 Bolt L20GX-23.00.11 Fixator L20GX-23.20.00 Fixator M6X16DIN6921 Bolt L20GX-23.00.01 Flange M6X12ISO7380-1 Screw М6DIN9021 Screw L20GX-23.00.02-1 Axle M8DIN985 Self Locking Nut L13GX20.40.00...
