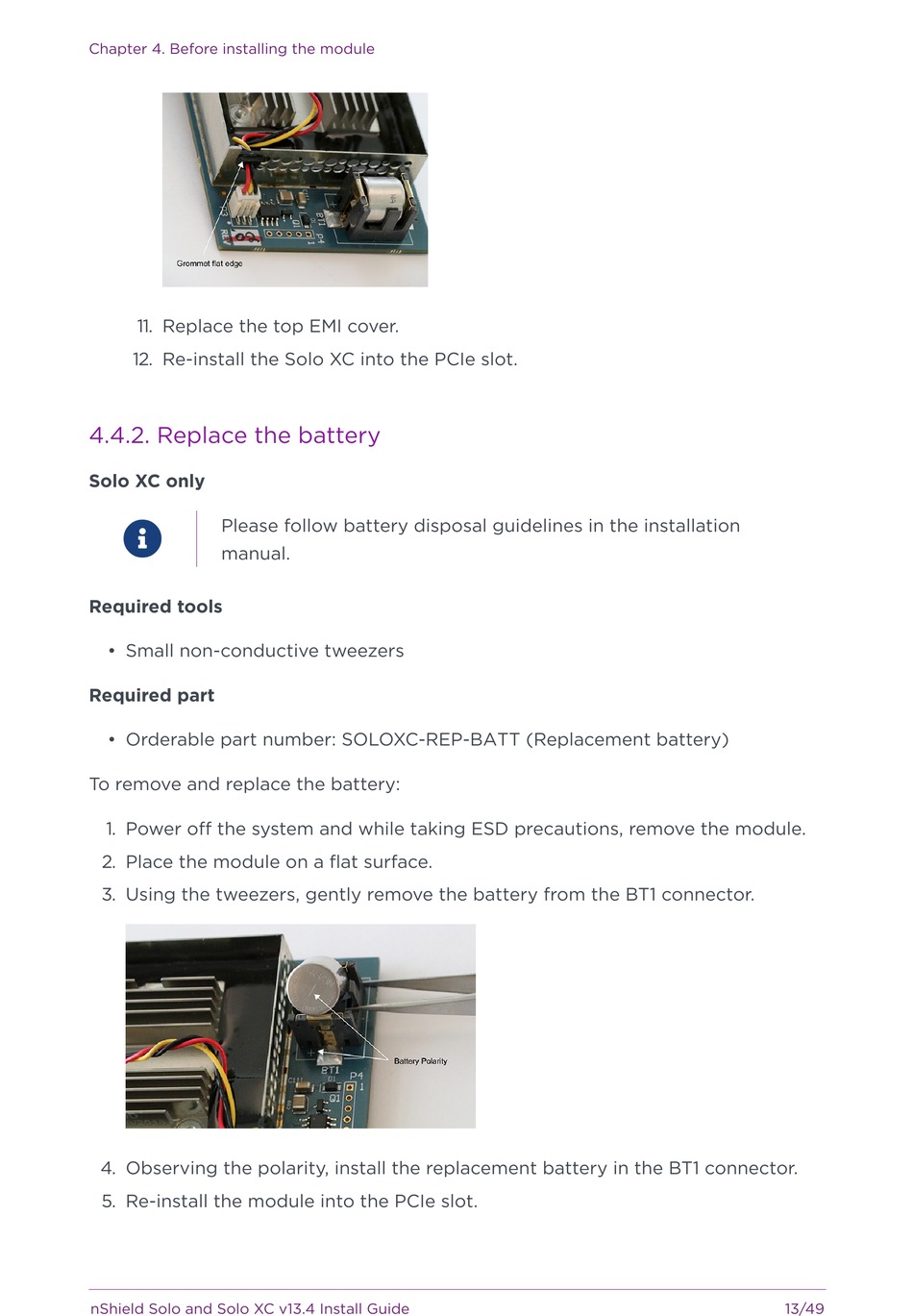

Chapter 4. Before installing the module
11. Replace the top EMI cover.
12. Re-install the Solo XC into the PCIe slot.
4.4.2. Replace the battery
Solo XC only
Please follow battery disposal guidelines in the installation
manual.
Required tools
• Small non-conductive tweezers
Required part
• Orderable part number: SOLOXC-REP-BATT (Replacement battery)
To remove and replace the battery:
1. Power off the system and while taking ESD precautions, remove the module.
2. Place the module on a flat surface.
3. Using the tweezers, gently remove the battery from the BT1 connector.
4. Observing the polarity, install the replacement battery in the BT1 connector.
5. Re-install the module into the PCIe slot.
nShield Solo and Solo XC v13.4 Install Guide
13/49
