Chapter 4. Before installing the module

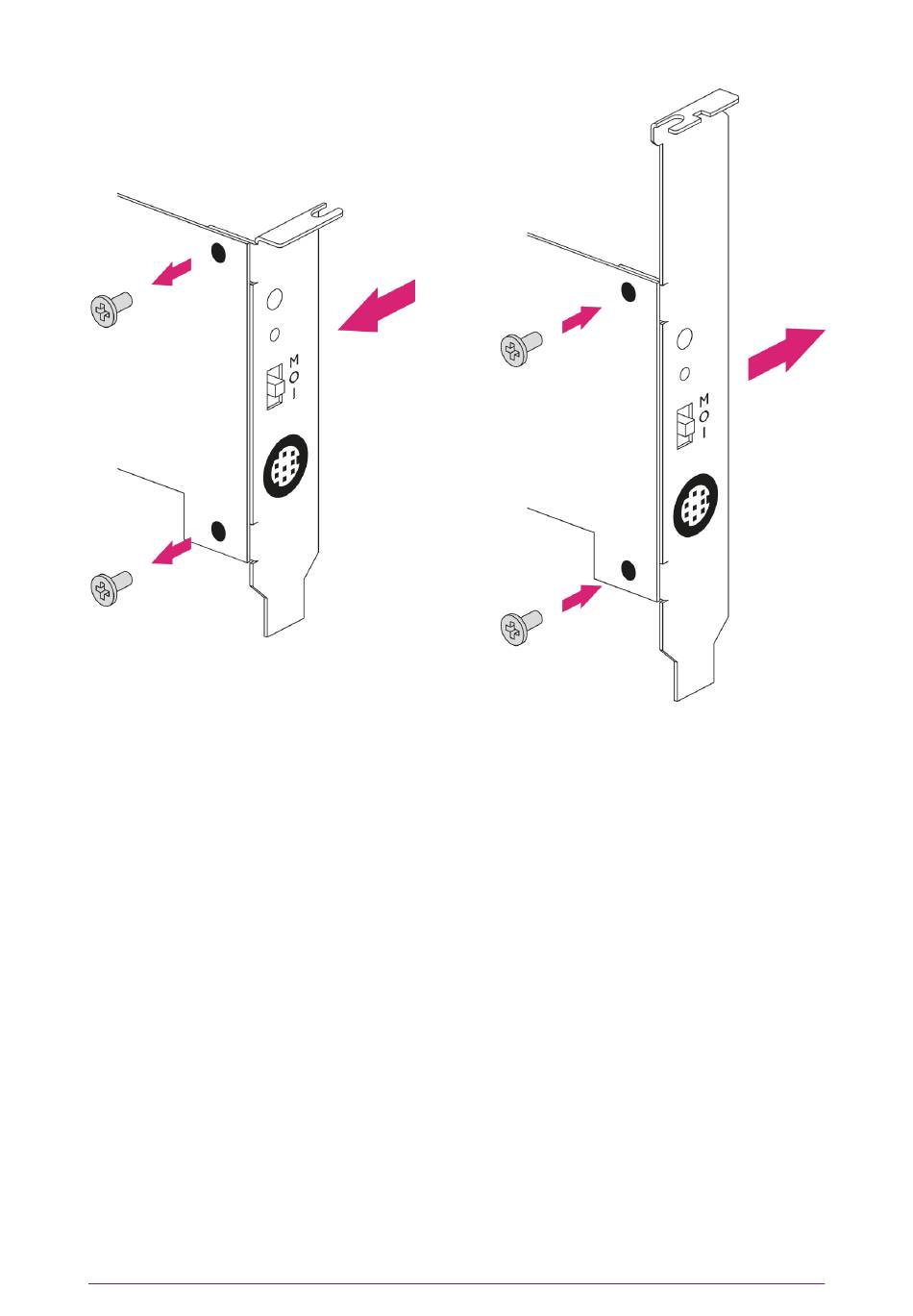

To fit the bracket to the module:
1. Remove the two screws from the solder side of the module.
2. Remove the incorrect bracket.
3. Fit the correct bracket to the component side of the module.
4. Insert the two screws into the solder side of the module to secure the bracket.
Do not over tighten the screws.
4.4. User Replaceable items
If the module has been removed so that a part can be replaced, follow these
procedures before installing the module. If no parts need replacing, proceed to
Installing the
module.
4.4.1. Replace the fan - Solo XC only
nShield Solo and Solo XC v13.4 Install Guide
11/49
