Chapter 4. Before installing the module
4. Before installing the module

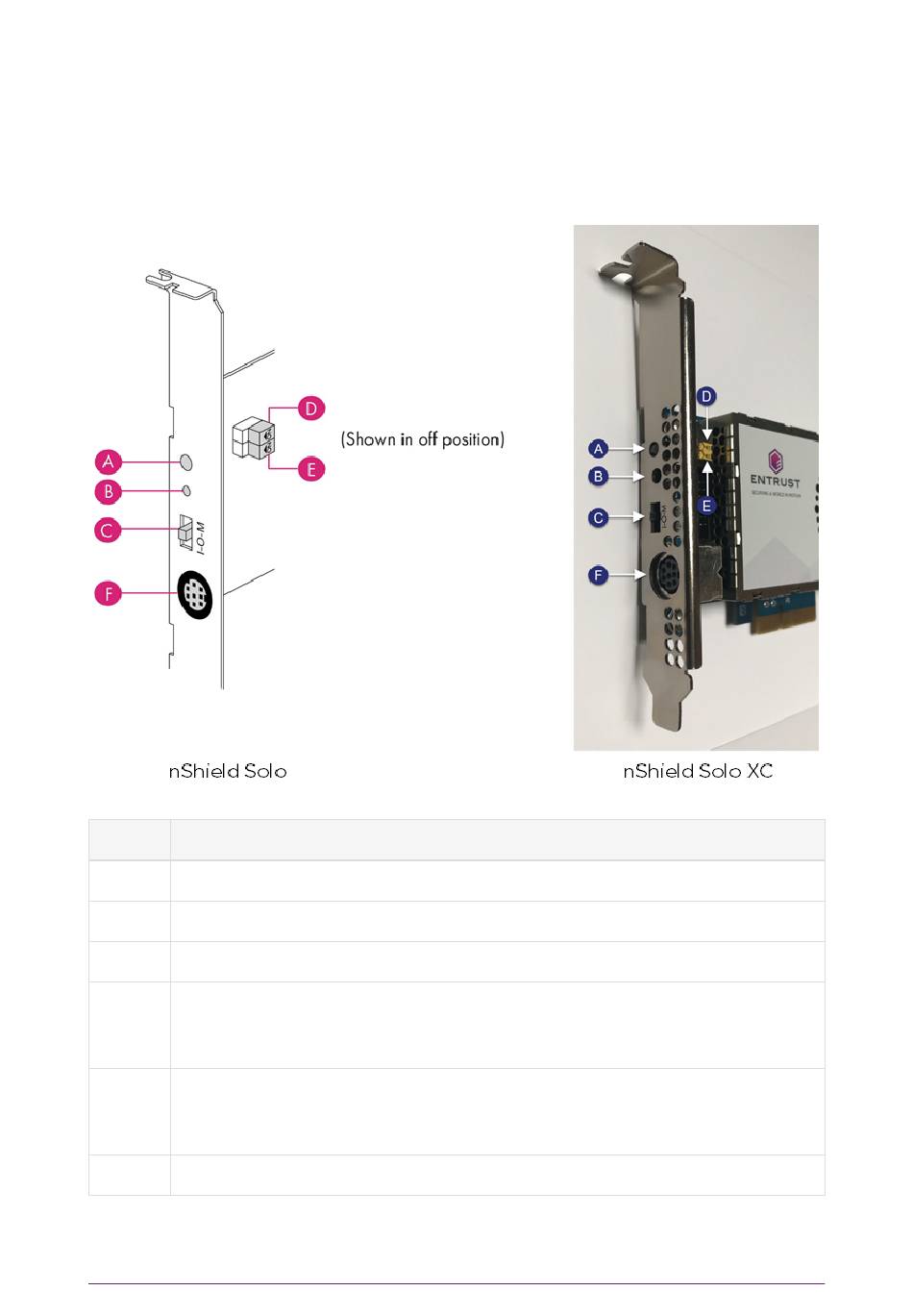

4.1. Back panel
Label
Description
A
Status LED
B
Recessed clear button
C
Physical mode switch
D
Physical mode override jumper switch, in the Off position. When set to On, the mode
switch (C) is deactivated. See the User Guide for your module and operating system for
more information.
E
Remote mode override jumper switch, in the Off position. When set to On, remote mode
switching is disabled. See the User Guide for your module and operating system for
more information.
F
A mini-DIN connector for connecting a smart card reader.
