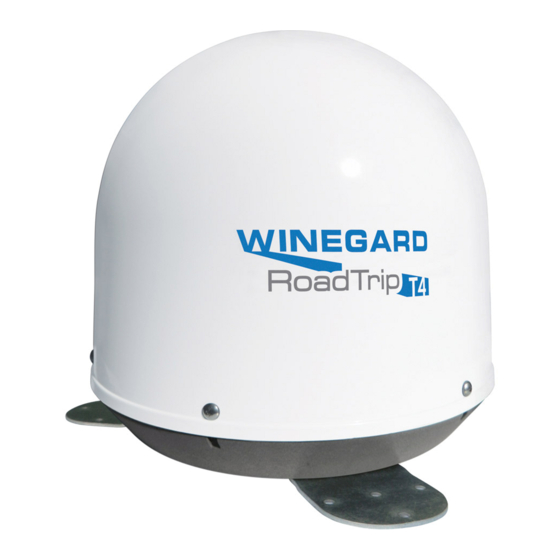

Automatic Stationary Roof-Mounted
Satellite TV Antenna
www.winegard.com/mobile
For Technical Services, email help@winegard.com
or call 1-800-788-4417.
For Receivers and Programming, call 1-866-609-9374.
DO NOT RETURN ANTENNA TO PLACE OF PURCHASE.
For up-to-date information on receiver compatibility and programming,
visit www.winegard.com/receivers.
Product Registration
Please register your Winegard product by completing the online
registration form at www.winegard.com/myantenna.
Specifications
• Supports up to two single or one dual receiver
• Depending on receiver type and location, can
access the following satellites:
®
DISH
Western Arc: 110°, 119°, 129°
®
DIRECTV
:119° or 101° (will not receive
HD on 110° or any KA-band HD on 99° and 103°)
Bell TV ™ : 91° or 82°
• Elevation range: 18–65°
• Azimuth: 0–416°
• Max amperage: 2.0 A
• Unit operating voltage: 9–16 V
• Supply voltage: 12–13.8 V
• UV-protected plastic dome
Base with
electronics, dish
and dual LNBF
Models
RT2000S / RTS-20W (white dome)
RT2035S / RTS-20B (black dome)
One dome and base with electronics, dish and dual LNBF are included with
the RoadTrip
P4 antenna. Aftermarket versions also include all mounting
®
hardware and cabling required for a single receiver installation.
Manuel disponible en français
au www.winegard/support
Manual disponible en español
en www.winegard/support
Dome
Foot
2452348
Rev3 4-17
Advertisement
Table of Contents
Related Manuals for Winegard RoadTrip P4
Summary of Contents for Winegard RoadTrip P4
- Page 1 For up-to-date information on receiver compatibility and programming, visit www.winegard.com/receivers. Manuel disponible en français Product Registration au www.winegard/support Please register your Winegard product by completing the online Manual disponible en español registration form at www.winegard.com/myantenna. en www.winegard/support Specifications • Supports up to two single or one dual receiver •...
-
Page 2: Safety Recommendations
If a defect in material or workmanship is discovered, Customer may take the product to an authorized Winegard dealer for service. Customer must provide proof of purchase to verify the product is under warranty. If the product is brought to an authorized Winegard dealer for service prior to expiration of year one (1) of the warranty period and a defect in material or workmanship is verified by Winegard Technical Services, Winegard Company will cover the Winegard dealer’s labor... - Page 3 38.2 in. requirements. Screw down with four screws for each foot. After all base feet are secured to the roof, put sealant around Min. Distance to be Maintained from Antenna the edge of feet and over screws. RoadTrip P4 Stationary Antenna...
-
Page 4: Installing The Cables
Crimp the splice. Continue to page 4 for DISH receiver setup or page 5 for DIRECTV receiver setup. Overall Installation P4 Antenna Cable 120V Power Entry Plate 120V Power Coax Cable Coax Cable Receiver Receiver RoadTrip P4 Stationary Antenna... - Page 5 Receiver setup instructions are accurate at time of printing and may change without notice. Call Winegard tech line for assistance: 1-800-788-4417. Check out online receiver setup guides for your antenna at www.winegard.com/support.
-
Page 6: Directv ® Receiver Setup
Receiver setup instructions are accurate at time of printing DISH Satellite Coverage and may change without notice. Call Winegard tech line for ® assistance: 1-800-788-4417. The antenna will locate and toggle between satellites 110°, 119°... - Page 7 P4 antenna will operate with most DIRECTV receivers. ® If given the option of SWM or Multi-switch, select Winegard does not recommend using receivers with hard Multi switch. drives not recommended by the manufacturer for mobile applications. Winegard does not recommend using an HD Power on the antenna, and allow the antenna a few receiver since HD programming will not be available.
-
Page 8: Troubleshooting
RoadTrip P4 Stationary Antenna Winegard Company • 3000 Kirkwood Street • Burlington, IA 52601 800-288-8094 • Fax 319-754-0787 • www.winegard.com • Printed in U.S.A. ©2015 Winegard Company Rev3 4/17 2452348...
