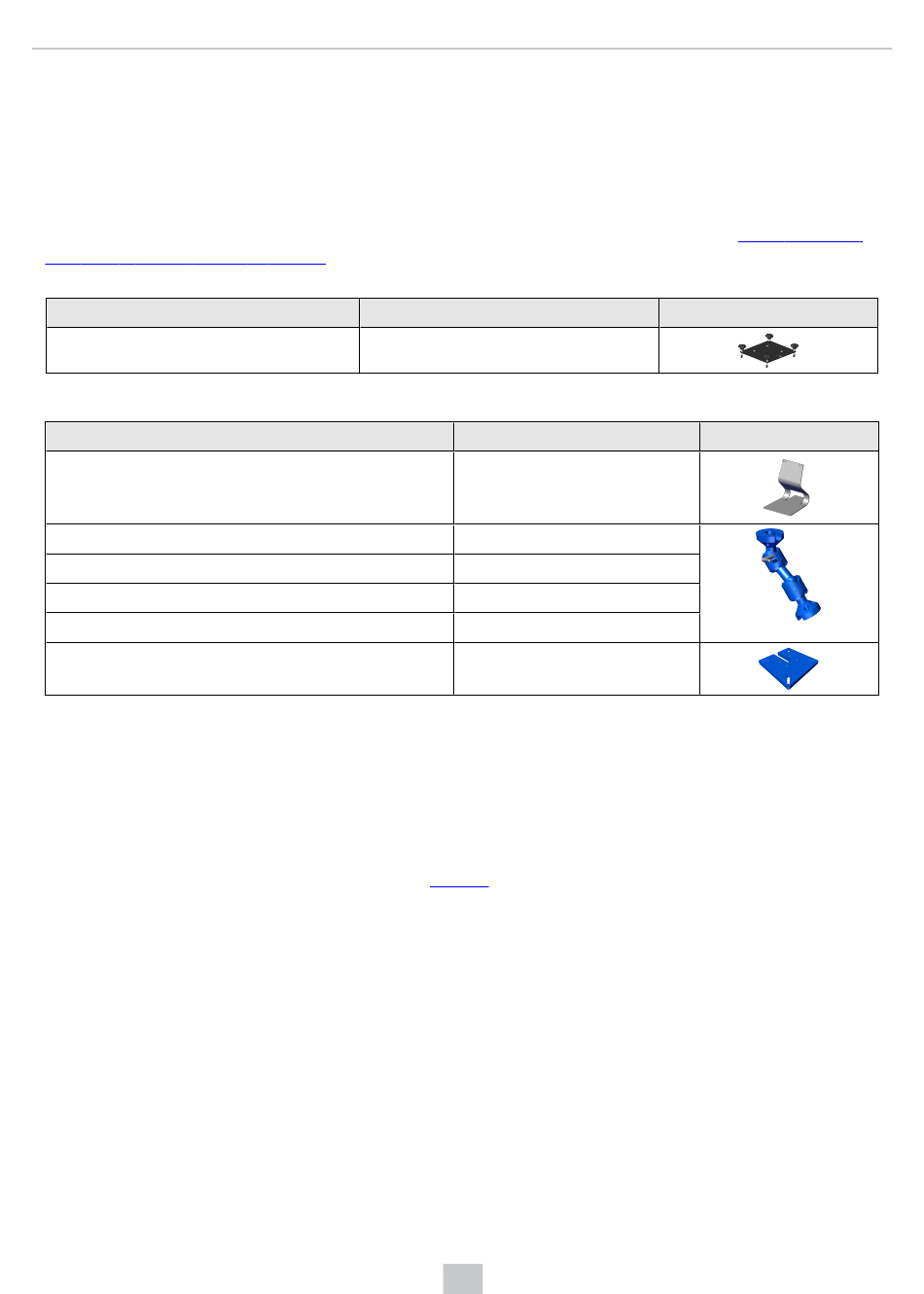

Mounting Options
You can purchase the following components separately. For a list of options and accessories, contact your local Cognex
sales representative.
Mounting Options for VisionView Web Panel
You can install the VisionView Web Panel in an electrical panel to retain IP65 environmental rating. See
Web Panel to Custom Bracket on page 16
bracket to speed up this process.
Accessory
FastMount bracket
You can also use general mounting solutions, which lower the environmental rating below IP65.
Accessory
Table top stand
2-inch swivel link single arm kit
4-inch swivel link single arm kit
6-inch swivel link single arm kit
8-inch swivel link single arm kit
Swivel link mounting plate
Installation
This section describes the installation process.
Mounting
To mount the VisionView Web HDMI, you can, for example, attach it to the back of your monitor or use a VESA-compliant
solution. For more information on VESA-compliance, see vesa.org.
To mount the VisionView Web Panel, use one of the following procedures depending on your preferred mounting option.
for instructions on how to properly mount the device. Use the optional FastMount
Product Number
820-20907-001
820-0272-1R
CSL-AFSB-1002
CSL-AFSB-1004
CSL-AFSB-1006
CSL-AFSB-1008
CSL-AFSB-9
10
Product Number
Getting Started
Mount VisionView
Illustration
Illustration
