MOXTEK X-ray Sources Operation Manual page 9

Running the 140KV PC Controller Application cont.

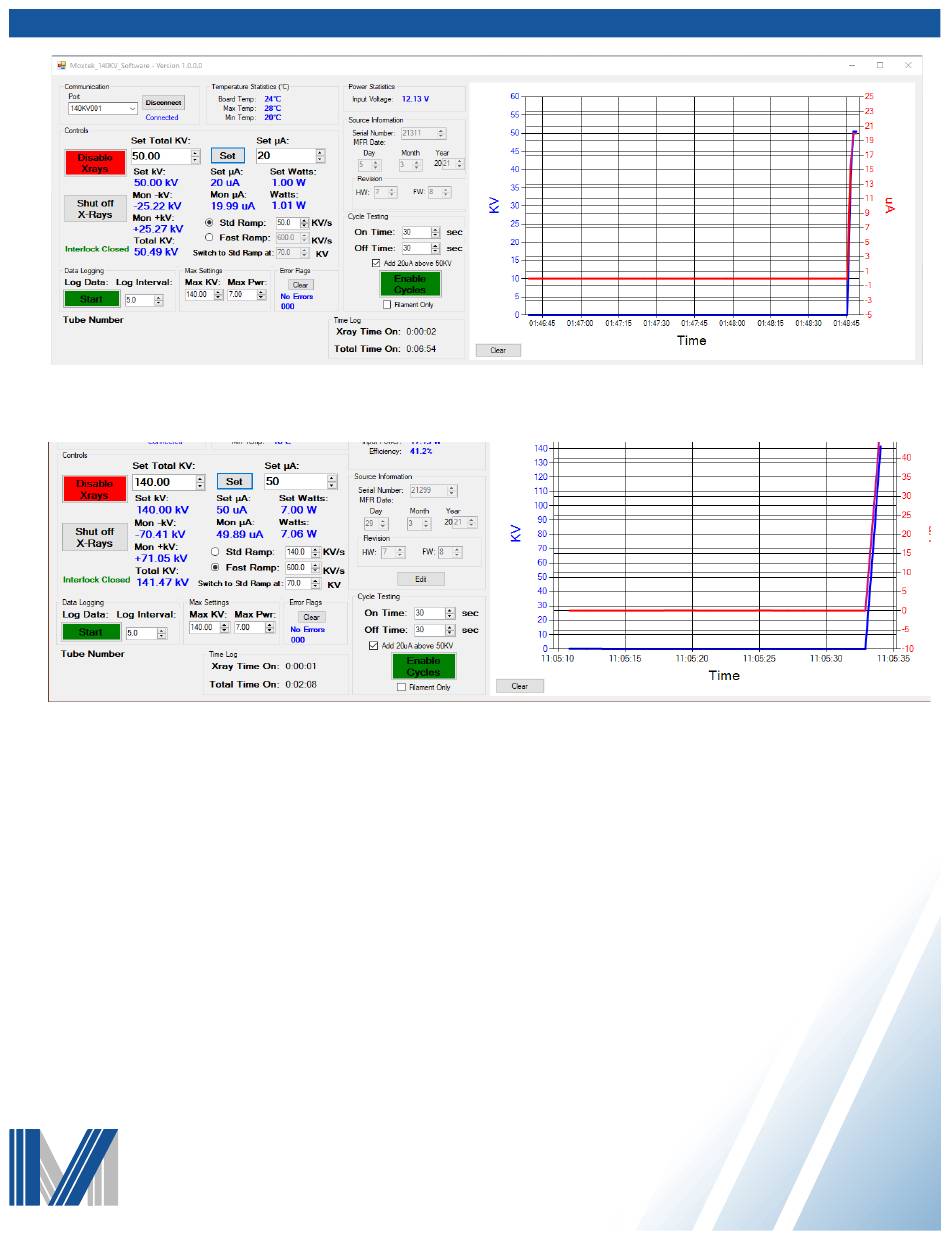

Figure 10: Enable X-rays
(Initial check and warm-up settings)
Figure 11: Inital Check and Warm-up Settings
(Full output with 0.5s ramp rate)
**NOTE** There are additional software settings that are available.
The "Data Logging" section allows for creation of a text file that will populate with all the current settings and
readings at chosen "Log Interval" you choose. Log periors are set to default to every 0.5s, but can be changed to
any value between 0.5s to 3600s if desired.
The "Cycle Testing" section allows user to automatically turn the X-rays on and off at a specified duty cycle. The
max "On Time" recommended is 30s. The corresponding minimum recommended "Off Time" is 30s. The "Add
20uA above 50KV" box should remain checked, and the "Filament Only" box should be blank.
If more details on these settings are needed, contact Moxtek.
