StarTech.com D86A2-2-PORT-8K-KVM Quick Start Manual

2-Port USB 3.2 Gen 1 KVM Switch - DisplayPort - 8K 60Hz

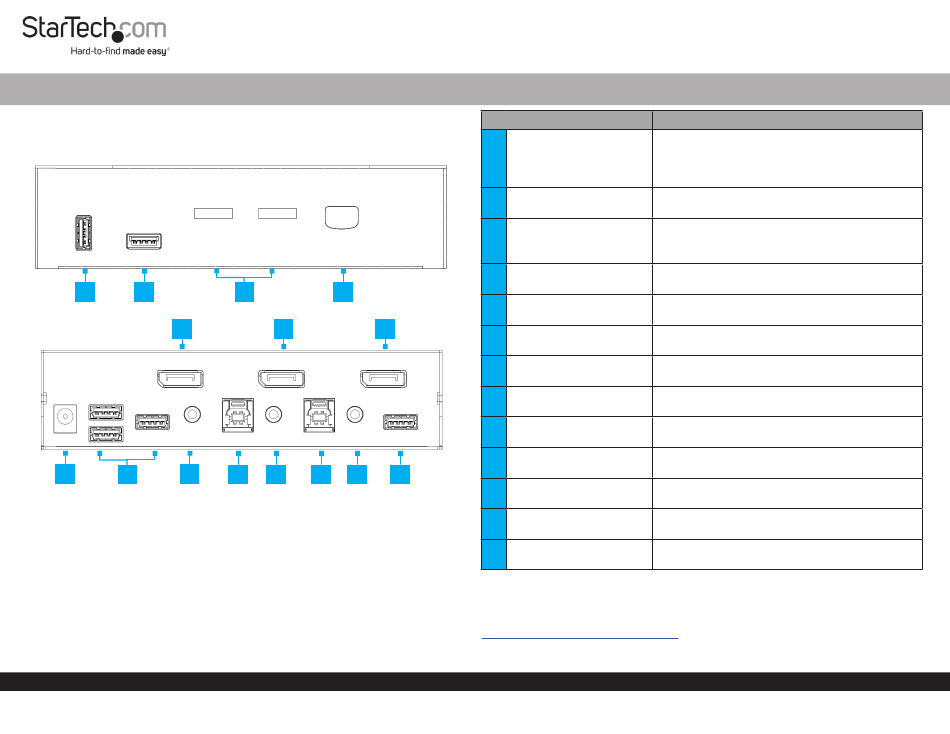

Product Diagram (D86A2-2-PORT-8K-KVM)

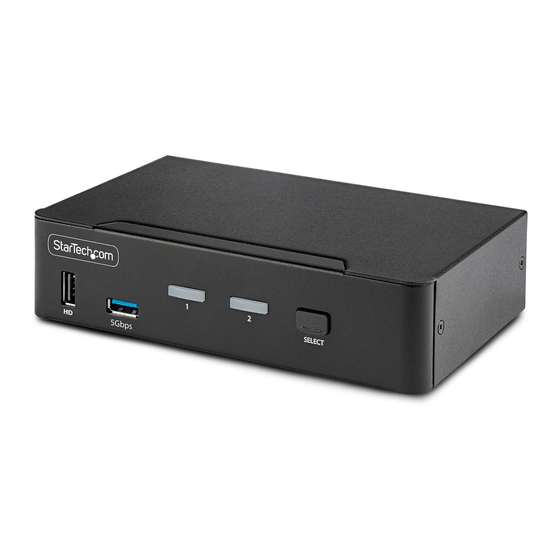

Front View
1 2
5
Rear View
8 1 9
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
1 3 4
6 7
10 11 12 13 2
Port
•
1 Console USB HID Port
•
•
2 Console USB Hub Port
•
Port Selection LED
3
Indicators
•
•
4 Port Selection Button
Console DisplayPort
5
•
Output Port
PC 2 DisplayPort Input
6
•
Port
PC 1 DisplayPort Input
7
•
Port
•
8 Power Input Port
•
9
Console Audio Port
•
10 PC 2 USB Port
•
11 PC 2 Audio Port
•
12
PC 1 USB Port
•
13 PC 1 Audio Port
Product Information
For the latest requirements and to view detailed instructions on all product functionality
in a full user manual, please visit:
www.StarTech.com/D86A2-2-PORT-8K-KVM
Quick-Start Guide
Function
Connect a Human Interface Device (HID) (e.g.
Keyboard, Mouse, Trackpad, Number Keypad, or
Drawing Tablet)
Front (x1) and Rear (x3)
Connect a SuperSpeed USB 5Gbps (USB 3.2
Gen 1) Peripheral Device
Solid Green: PC 1 and/or PC 2 connected (power
on)
Solid Red: PC 1 or PC 2 selected (power on)
Press and release the Port Selection Button to
select PC 1 or PC 2
Connect to a DisplayPort Input on a Display
Connect to a DisplayPort Output on PC 2
Connect to a DisplayPort Output on PC 1
Connect a Universal Power Adapter to power
the KVM Switch
Connect an Audio Device (e.g. Speakers or
Headset)
Connect to a SuperSpeed USB 5Gbps (USB 3.2
Gen 1) Port on PC 2
Connect to an Audio Port (for Stereo Speakers or
a Microphone) on PC 2
Connect to a SuperSpeed USB 5Gbps (USB 3.2
Gen 1) Port on PC 1
Connect to an Audio Port (for Stereo Speakers or
a Microphone) on PC 1
Manual Revision: January 12, 2022 10:18 AM
