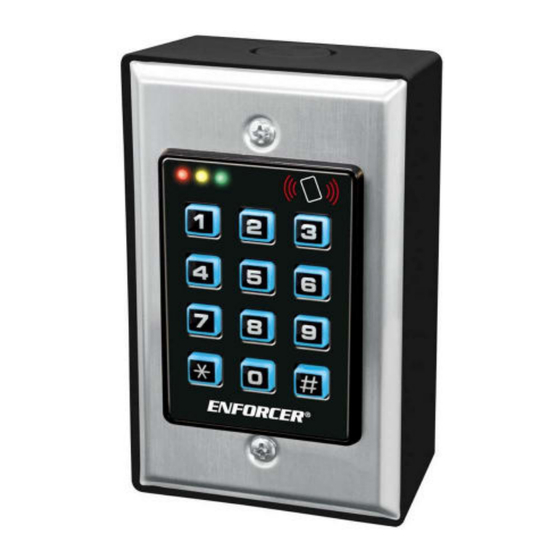

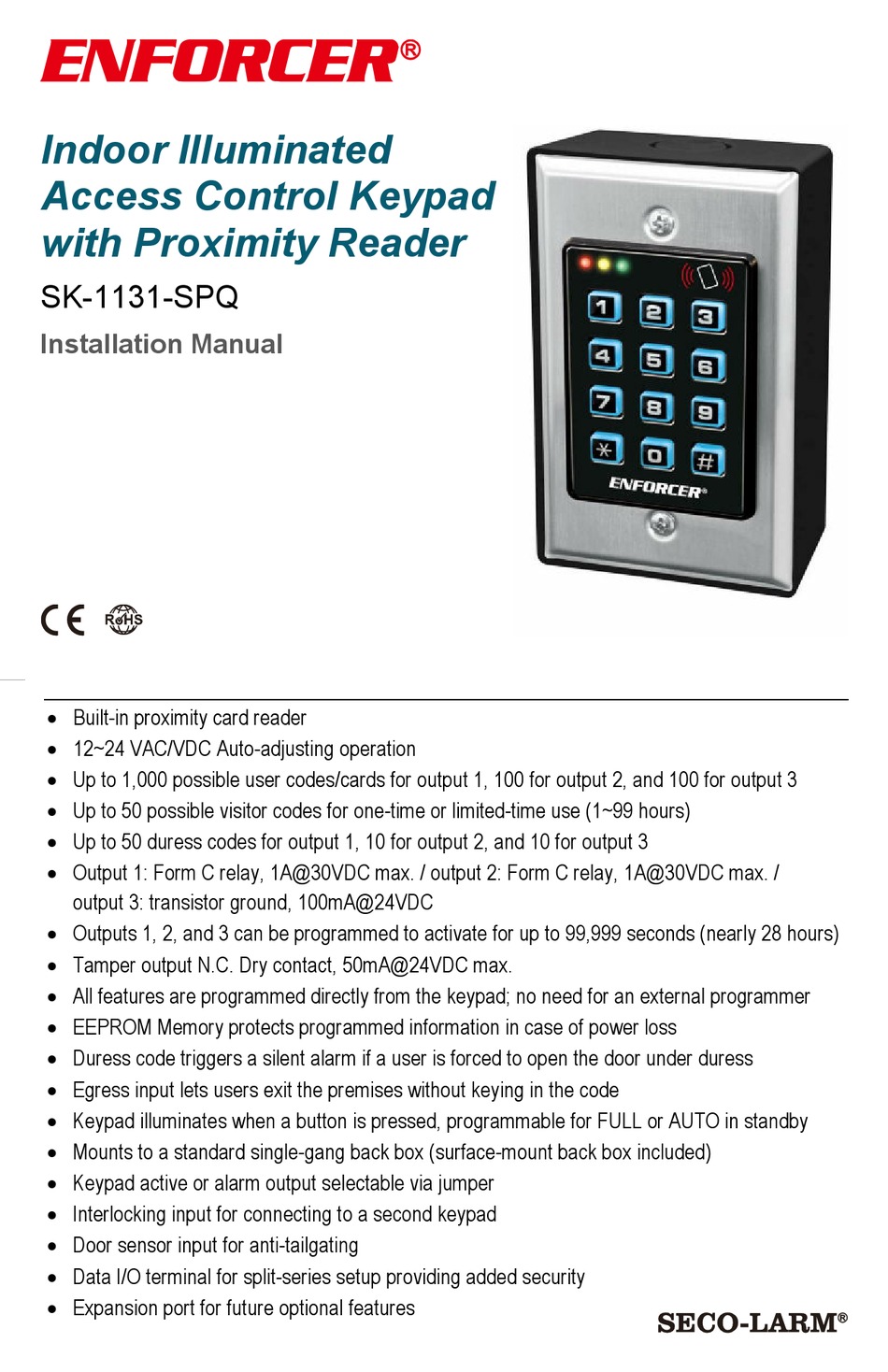

ENFORCER SK-1131-SPQ Installation Manual

Indoor Illuminated
Access Control Keypad
with Proximity Reader
SK-1131-SPQ
Installation Manual
 Built-in proximity card reader
 12~24 VAC/VDC Auto-adjusting operation
 Up to 1,000 possible user codes/cards for output 1, 100 for output 2, and 100 for output 3
 Up to 50 possible visitor codes for one-time or limited-time use (1~99 hours)
 Up to 50 duress codes for output 1, 10 for output 2, and 10 for output 3
 Output 1: Form C relay, 1A@30VDC max. / output 2: Form C relay, 1A@30VDC max. /
output 3: transistor ground, 100mA@24VDC
 Outputs 1, 2, and 3 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
 Tamper output N.C. Dry contact, 50mA@24VDC max.
 All features are programmed directly from the keypad; no need for an external programmer
 EEPROM Memory protects programmed information in case of power loss
 Duress code triggers a silent alarm if a user is forced to open the door under duress
 Egress input lets users exit the premises without keying in the code
 Keypad illuminates when a button is pressed, programmable for FULL or AUTO in standby
 Mounts to a standard single-gang back box (surface-mount back box included)
 Keypad active or alarm output selectable via jumper
 Interlocking input for connecting to a second keypad
 Door sensor input for anti-tailgating
 Data I/O terminal for split-series setup providing added security
 Expansion port for future optional features
