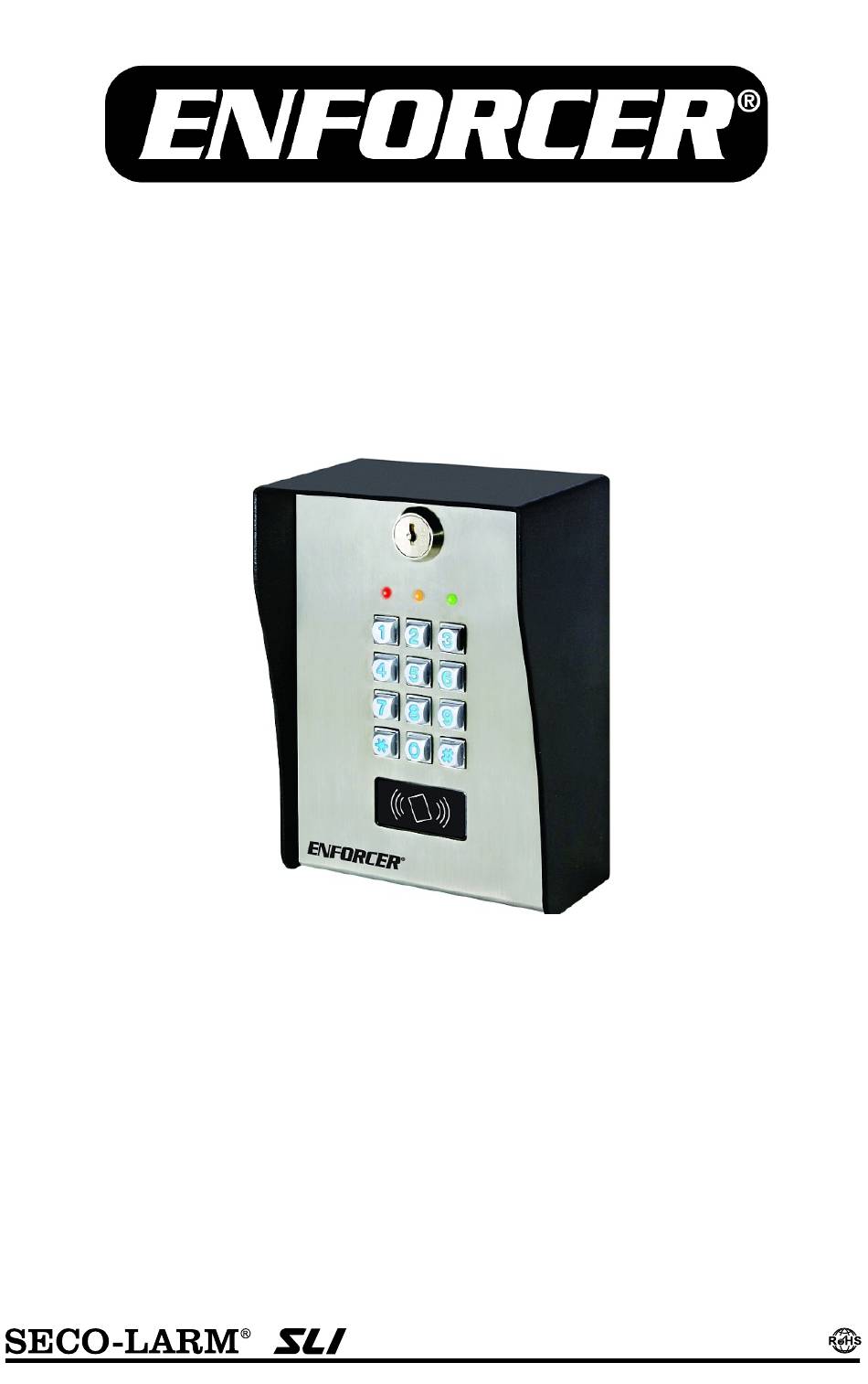

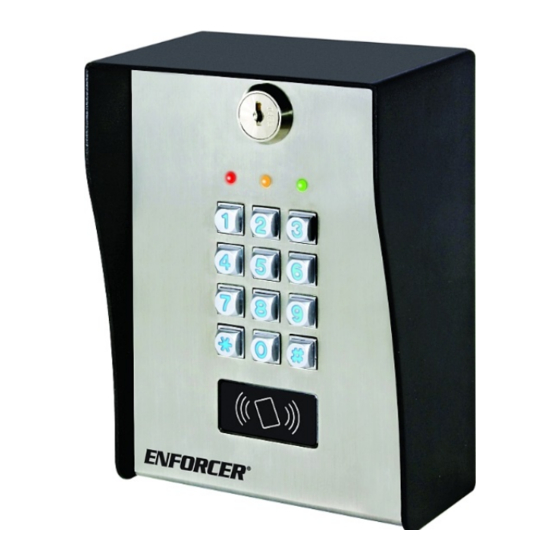

Heavy-Duty Outdoor Access Control Keypad
Features:
• Rugged construction – heavy-duty stainless
steel faceplate with coated steel housing
• Built-in proximity card reader
• 12~24 VAC/VDC Operation, auto-adjusting
• IP66 Weatherproof rating
• Up to 1,000 user codes and/or proximity
cards for output #1, 100 for output #2, and
100 for output #3
SK-3133-PPQ
with Proximity Reader
®
• Up to 50 temporary visitor codes
• Up to 50 duress codes for output #1, 10 for
output #2, and 10 for output #3
• Egress input lets users exit the premises
without keying in the code
• Door sensor input for anti-tailgating operation
• Vandal resistant, suitable for wall, post, or
gooseneck mounting
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ENFORCER SK-3133-PPQ
Summary of Contents for ENFORCER SK-3133-PPQ
- Page 1 SK-3133-PPQ Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Features: • Rugged construction – heavy-duty stainless • Up to 50 temporary visitor codes steel faceplate with coated steel housing • Up to 50 duress codes for output #1, 10 for •...
-
Page 2: Quick Installation Guide
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Quick Installation Guide: This page is for installers looking to do a basic installation and programming of the keypad. For more in-depth installation and programming instructions, see the Table of Contents on pg. 4. -
Page 3: Quick Programming Guide
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Quick Programming Guide: This page is for installers looking to do a basic installation and programming of the keypad. For more in-depth installation and programming instructions, see the Table of Contents, pg. 4. -
Page 4: Table Of Contents
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Table of Contents: Contents Quick Installation Guide: ........................2 Mounting Diagram: ..........................2 Quick Wiring Diagram: ........................2 Quick Programming Guide: ....................... 3 Table of Contents: ..........................4 Features: ............................5 Overview: ............................ -
Page 5: Features
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Features: • Rugged construction – heavy-duty stainless • Keypad illuminates when a button is pressed; steel faceplate with coated steel housing backlight can be programmed for FULL or AUTO in standby mode •... -
Page 6: Parts List
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Parts List: 1x Keypad with steel box 2x Keys* 1x Security wrench 4x Mounting screws 4x Mounting screw anchors 1x Diode 1x Mounting template 1x Manual *No replacement keys available. Please make extra copies for safekeeping. -
Page 7: Led Indicators And Keypad Sounds
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader LED Indicators and Keypad Sounds: LED Indicators Red LED (left) Amber LED (center) Green/Red LED (right) Output #1 activated (green) Steady Output #1 inhibited Programming mode Output #2 activated (red) Flashing... -
Page 8: Installation
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Installation: 1. Unlock the keylock mounted on the face of the keypad with one Fig. 1 of the included keys. 2. Remove the tamper screw from the bottom of the keypad with the included security wrench. -
Page 9: Wiring Diagram
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Wiring Diagram: Connection Terminals Terminal Description Connect to a 12~24 VAC/VDC 12~24 VAC/VDC power supply. Observe polarity. Output 1 N.C. NO/NC/COM relay output, Output 1 COM Max. 5A@24VDC Output 1 N.O. -
Page 10: Sample Applications
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Sample Applications: Stand-Alone Door Lock: In this application, the keypad is connected to a single door lock and an egress pushbutton. 12~24 VAC/VDC OUTPUT RELAY N.O. Output for 12-24VDC Fail-secure Lock N.C. -
Page 11: Sample Applications For Auxiliary Terminals
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Sample Applications (Continued): Door-Hold-Open Mode: 2. For N.O. locking devices, connect outputs 1. For N.C. locking devices, connect outputs in series with working device. in parallel with locking device 12~24 VDC 12~24 VDC –... - Page 12 ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Sample Applications for Auxiliary Terminals (Continued): Alarm Output: +12VDC Alarm Control Panel 1.5K Low power 24-Hour piezo buzzer N.O. Protection Zone Set the K or A jumper to "A" (see "Jumper Settings," pg. 9) to cause the Alarm Output to switch to (–) ground in Door-Forced-Open or the Door Open after Egress Delay.
-
Page 13: Getting Ready To Program
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Sample Applications for Auxiliary Terminals (Continued): Duress Output: +12VDC Alarm Control Panel 1.5K Low power 24-Hour piezo buzzer N.O. Protection Zone The Duress Output switches to (–) ground when a duress code is entered. You may use it to turn on an LED lamp and/ or a small buzzer to notify a guard;... -
Page 14: Keypad Is In Programming Mode
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Getting Ready to Program (Continued): Security Levels: There are four possible security levels for the keypad: 1. Card only – The most basic, convenient level of security. Hold a previously-programmed proximity card over the keypad to activate outputs #1, #2, or #3 (see "Programming User... -
Page 15: System Restore
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Getting Ready to Program (Continued): Exit programming mode: entry can be used to exit programming mode at any time while programming. The amber LED will return to flashing, indicating standby mode, upon exiting programming mode. -
Page 16: Programming Format And Default Programming Values
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Programming Format and Default Programming Values: In this manual, the format used for programming the keypad is as follows: • A 2-digit ( ) FUNCTION identifier to tell the keypad what is being programmed. -
Page 17: Programming The Master Programming Code
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Programming the Master Programming Code: The master programming code is used to enter programming mode. The master programming code does not serve as a user code for activating outputs #1, #2, or #3. -
Page 18: Keypad Is In Programming Mode
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Programming the Super User Code (Continued): Deleting the Super User Code: This function is useful for protecting the premises in case the super user code is forgotten. To delete a super user code: 1. -
Page 19: Programming Common User Codes
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Programming the Super User Code (Continued): 6. Disable or enable output #1 (toggle, regardless of programming): 2580 # 9 NOTES: • For more information on programming timed or toggle mode, see "Programming the Output Mode and Output Timing,"... -
Page 20: Programming User Codes And Proximity Cards
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Programming User Codes and Proximity Cards: When programming user codes and/or proximity cards, use this general formula: AA B CCC DDDD # – Output – Security Level (or to delete a user code or card) –... - Page 21 ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Programming User Codes and Proximity Cards (Continued): User Codes: A user code can be 4 to 8 digits long and must have the same length as the master • programming code if the keypad is used in auto code entry mode (see “Programming the User Code Entry Mode,”...
-
Page 22: Programming Visitor Codes For Output #1
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Programming Visitor Codes for Output #1: Visitor codes are temporary codes that expire after use or after a specified amount of time has elapsed. While active, they operate output #1 as normal user codes. -
Page 23: Programming Duress Codes
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Programming Duress Codes: Duress codes allow users to trigger a silent alarm or alert if forced to allow access to a protected area. If one uses a duress code instead of their normal user code, outputs #1, #2, or #3 will activate as normal, but the duress output will simultaneously activate to trigger a silent alarm or alert. - Page 24 ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Programming Duress Codes (Continued): Examples: 1. Set the duress ID #1 code for output #1 to 2369: 41 01 2369 # 2. Set the duress ID #1 code for output #2 to 23980:...
-
Page 25: Programming The Output Mode And Output Timing
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Programming the Output Mode and Output Timing: The relays for outputs #1, #2, and #3 can be programmed to trigger ON and OFF with a user code or user card (toggle mode), or to trigger for a programmed length of time of up to nearly 28 hours before automatically turning OFF. -
Page 26: Programming The Real-Time Clock
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Programming the Real-Time Clock: A 24-hour real-time clock provides the baseline time needed to start and stop the output #1 auto- disable time (see "Programming the Output #1 Auto-Disable Time" below). - Page 27 ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Programming the Output #1 Auto-Disable Time (Continued): • The time is set using the military (24-hour) time format (00:00 to 23:59). • If the programmed start time is before the end time, output #1 is auto-disabled within a single day.
-
Page 28: Programming The Wrong-Code System Lock-Up
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Programming the Wrong-Code System Lock-Up: The keypad can be programmed to lock up in order to secure the premises against unauthorized entry if multiple wrong codes are entered or multiple wrong user cards are tapped. -
Page 29: Programming The Keypad Sounds
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Programming the User Code Entry Mode (Continued): NOTE: If the keypad was previously programmed for manual code entry mode and then is reprogrammed for auto entry mode, any codes whose length exceeds the number of digits of the master programming code will no longer operate the keypad. -
Page 30: Programming The Door-Forced-Open Warning And Timing
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Programming the Door-Forced-Open Warning and Timing: If the keypad is connected to an optional magnetic contact or other door protection switch or device, the keypad can be programmed to beep and output to an alarm when a door has been forced open. -
Page 31: Programming The Door-Propped-Open Warning And Delay Time
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Programming the Door-Propped-Open Warning and Delay Time (Cont.): NOTES: represents the delay time, which can be set from 1 to 999 seconds. • • The delay time provides time for a door to close normally before triggering the door-propped- open warning. -
Page 32: Programming The Egress Delay/Warning/Alarm
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Programming the Egress Delay/Warning/Alarm (Continued): When programming the egress delay/warning/alarm, use this general formula: 90 A BB # – Program Egress Delay/Warning/Alarm – Egress Mode – Delay Time Egress Modes: There are six possible egress operation configurations for the keypad: –... -
Page 33: Direct Access To Programming
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Programming the Egress Delay/Warning/Alarm (Continued): Examples: 1. Momentary mode – Press the egress button, and the keypad will beep for 5 seconds before output #1 activates: 90 2 5 # 2. Hold button to activate – Press and hold the egress button for 10 seconds, and the keypad will... -
Page 34: User's Guide To Operating The Sk-3133-Ppq
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader User's Guide to Operating the SK-3133-PPQ: See “Programming the Master Programming Code” and “Programming the Super User Code,” pgs. 17~19 for functions specific to those authorized to use those codes. Opening the Door:... -
Page 35: Installation Notes
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Installation Notes: Copy this chart to use during setup for future reference: User Security User Output User Code User's Name Card# Notes: Level* (1, 2, or 3) (or Duress Code) John... -
Page 36: Troubleshooting
ENFORCER Heavy-Duty Outdoor Access Control Keypad with Proximity Reader Troubleshooting: • Make sure you programmed a User Code instead of a Super User or Common User Code. User code doesn’t work • Try deleting the super user code and common user code then reprogramming the user code.
